JAGUAR fast attack craft (torpedo) (1957 - 1961)

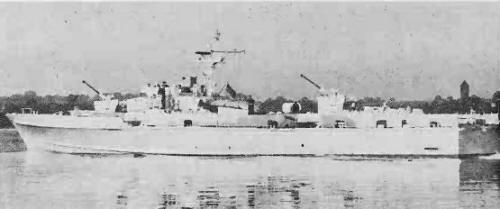

Dommel 1971

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Iltis P6058   Lürssen, Vegesack   15.8.1957 12/1957 target 1.1975
Jaguar P6059   Lürssen, Vegesack   12.6.1957 11/1957 stricken 6.1973
Leopard P6060   Lürssen, Vegesack   4.1.1958 5/1958 stricken 5.1973
Luchs P6061   Lürssen, Vegesack   2.11.1957 3/1958 stricken 12.1972
Wolf P6062   Lürssen, Vegesack   21.9.1957 2/1958 to Turkey 3.1975 (Yıldız)
Tiger P6063   Kröger-Werft, Schacht-Audorf   21.4.1958 10/1958 to Turkey 12.1974 (Karayel)
Panther P6064   Kröger-Werft, Schacht-Audorf   18.10.1958 12/1958 stricken 3.1973
Löwe P6065   Lürssen, Vegesack   8.11.1958 2/1959 to Turkey 4.1975 (Kalkan)
Fuchs P6066   Lürssen, Vegesack   20.12.1958 3/1959 stricken 7.1973
Marder P6067   Lürssen, Vegesack   21.3.1959 7/1959 stricken 6.1972
Seeadler P6068   Lürssen, Vegesack   1.2.1958 8/1958 to Greece 7.1976 (Έσπερος [Esperos])
Albatros P6069   Lürssen, Vegesack   20.3.1958 1/1959 to Greece 12.1975
Kondor P6070   Lürssen, Vegesack   17.5.1958 2/1959 to Greece 7.1976 (Λαίλαψ [Lailaps])
Greif P6071   Lürssen, Vegesack   28.6.1958 3/1959 to Greece 12.1976 (Κυκλών [Kyklon])
Falke P6072   Lürssen, Vegesack   30.8.1958 4/1959 to Greece 9.1975 (Καταιγίς [Kataigis])
Geier P6073   Lürssen, Vegesack   1.10.1958 6/1959 to Greece 6.1975 (Τυφών [Typhon])
Bussard P6074   Kröger-Werft, Schacht-Audorf   29.11.1958 3/1959 to Greece 11.1975
Habicht P6075   Kröger-Werft, Schacht-Audorf   21.2.1959 6/1959 to Greece 9.1976 (Κένταυρος [Kentavros])
Sperber P6076   Kröger-Werft, Schacht-Audorf   4.4.1959 7/1959 to Greece 2.1976
Kormoran P6077   Kröger-Werft, Schacht-Audorf   16.7.1959 11/1959 to Greece 11.1976 (Σκορπίος [Skorpios])
Weihe P6082   Lürssen, Vegesack   20.6.1959 10/1959 stricken 7.1972
Kranich P6083   Lürssen, Vegesack   15.8.1959 12/1959 stricken 11.1973
Alk P6084   Kröger-Werft, Schacht-Audorf   19.9.1959 1/1960 to Turkey 8.1974
Storch P6085   Lürssen, Vegesack   16.11.1959 3/1960 to Turkey 3.1974 (Tufan)
Pelikan P6086   Kröger-Werft, Schacht-Audorf   12.12.1959 3/1960 to Turkey 5.1974 (Fırtına)
Häer P6087   Lürssen, Vegesack   9.1.1960 4/1960 to Turkey 12.1974 (Mizrak)
Elster P6088   Lürssen, Vegesack   26.3.1960 7/1960 stricken 7.1974
Reiher P6089   Lürssen, Vegesack   7.5.1950 8/1960 to Turkey 8.1973
Pinguin P6090   Lürssen, Vegesack   4.7.1960 3/1961 trials vessel 12.1972
Dommel P6091   Lürssen, Vegesack   20.8.1960 2/1961 stricken 3.1974


Technical data


Displacement standard, t

P6058-6067, 6082-6091: 184

P6068-6077: 195

Displacement full, t

P6058-6067, 6082-6091: 210

P6068-6077: 221

Length, m

39.8 wl 42.6 oa

Breadth, m

7.10

Draught, m

P6058-6067, 6082-6091: 2.30

P6068-6077: 2.40

No of shafts

4

Machinery

P6058-6067, 6082-6091: 4 Mercedes-Benz diesels

P6068-6077: 4 Maybach diesels

Power, h. p.

14400

Max speed, kts

43

Fuel, t

diesel oil

Endurance, nm(kts)1000(32)
Armament

P6058: 2 x 1 - 20/70 Mk 7 (HS804), 4 - 533 TT

P6059-6077, 6082-6091: 2 x 1 - 40/70 Bofors 350, 4 - 533 TT or (2 - 533 TT, mines)

Electronic equipment

Decca 1226 radar

Complement

39



Standard scale images


<i>Jaguar </i>1960
Jaguar 1960


Graphics


<i>Dommel </i>1971
Dommel 1971


Project history

Designated 'Schnellboot 55' by Lürssen Werft, Vegesack, these composite-built units belonged to the Type 140/141. The only difference between the classes was in the choice of engine. This type was a further development of the well-known wartime 'S-boats' of the Kriegsmarine, but incorporating the latest advances.

The boats could carry mines, when the aft TTs were removed, the minerails being fixed on deck.

Modernizations

1958, Iltis: was armed as other boats.

Naval service

No significant events.
