KRONPRINZ central battery ironclad (1867)





  Kronprinz

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kronprinz     Samuda Bros, London, UK 1866 6.5.1867 17.9.1867 hulk 8.1901


Technical data


Displacement normal, t

6197

Displacement full, t6760
Length, m

88.2 wl 89.4 oa

Breadth, m

15.2

Draught, m

7.85

No of shafts

1

Machinery

1 HSE, 8 rectangular boilers

Power, h. p.

4870

Max speed, kts

14.7

Fuel, t

coal 646

Endurance, nm(kts)3220(10)
Armour, mmiron; belt: 124 - 76, battery: 121 - 114, CT: 50
Armament

2 x 1 - 209/20 RKL/22.5 C/68, 14 x 1 - 209/17 RKL/19 C/67

Complement

541



Standard scale images

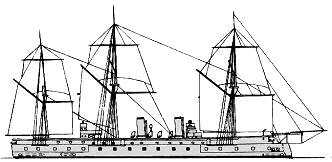

<i>Kronprinz</i> 1888
Kronprinz 1888


Graphics

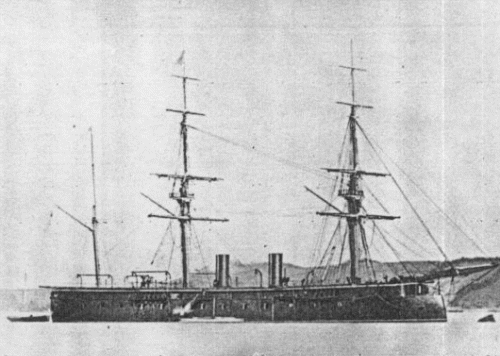

  <i>Kronprinz</i>
  Kronprinz


Project history

Though she was built on the Thames to a design by Edward Reed, Kronprinz was broadly similar to her French-built contemporary Friedrich Carl. The main points of difference were the British design's less prominent ram and two funnels. Ship was originally intended for thirty-two 72pdrs, only some of which would have been inside her central protected battery.

Ship protection

Main wrought iron belt had 254mm wooden back and was 124-114mm-thick under the battery, tapered to 114mm fore and 76mm aft. Battery had 121mm sides amidships, tapered to 114mm fore and aft and backed by 254mm teak layer, and 9mm roof. CT had 50mm sides and 30mm roof.

Modernizations

1881: + 6 x 5 - 37/27 RV L/30, 5 - 350 TT (2 bow, 2 beam, 1 stern)

Naval service

Kronprinz was converted to machinery hulk in August 1901 and sold only in October, 1921.
