"MFP" type landing self-propelling barges (1941 - 1945) (F100A)

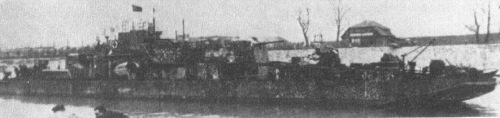

AF19
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| F100A | 346 | Wiemann, Brandenburg | 15.12.1940 | 4.1941 | surrendered 5.1945, sold | "MFP-A" type | ||
| F101A, 3.1944- AF73 | Gutehoffnungshütte, Rheinwerft Walsum | 20.12.1940 | 8.1941 | gunship 3.1944, sunk 13.5.1944 | "MFP-A" type | |||
| F102A, 3.1944- AF51 | Gutehoffnungshütte, Rheinwerft Walsum | 20.12.1940 | 8.1941 | gunship 3.1944, sunk 26.8.1944 | "MFP-A" type | |||
| F103A | Triton, Meiderich | 20.12.1940 | 8.1941 | surrendered 5.1945, to Soviet Union 1946 (БД-360 [BD-360]) | "MFP-A" type | |||
| F104A, 3.1944- AF52 | Ewald Berninghaus, Duisburg | 20.12.1940 | 8.1941 | gunship 3.1944, sunk 29.8.1944 | "MFP-A" type | |||
| F105A, 3.1944- AF74 | Schimag, Mannheim | 20.12.1940 | 7.1941 | gunship 3.1944, surrendered 5.1945, to Soviet Union 3.1946 (БАД-8 [BAD-8]) | "MFP-A" type | |||
| F106A | Schimag, Mannheim | 20.12.1940 | 8.1941 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | |||
| F107A, 3.1944- AF53 | Werft Eggers & Co., Hamburg | 20.12.1940 | 8.1941 | gunship 3.1944, sunk 26.8.1944 | "MFP-A" type | |||
| F108A | Wiemann, Brandenburg | 20.12.1940 | 8.1941 | surrendered 5.1945, to Soviet Union 3.1946 (БД-302 [BD-302]) | "MFP-A" type | |||
| F109A | Beucheldt, Glogau | 20.12.1940 | 8.1941 | surrendered 5.1945, to Soviet Union 3.1946 (БД-386 [BD-386]) | "MFP-A" type | |||
| F110A | J. Smit, Westerbroek | 20.12.1940 | 8.1941 | surrendered 5.1945, to Netherlands 2.1946 | "MFP-A" type | |||
| F111A | Van der Werf, Deest | 20.12.1940 | 8.1941 | collision 24.11.1944 | "MFP-A" type | |||
| F112A | J. Smit, Foxhol | 20.12.1940 | 7.1941 | surrendered 5.1945, to Soviet Union 3.1946 (БД-394 [BD-394]) | "MFP-A" type | |||
| F113A | 312 | Nederlandsche Scheepsbouw, Amsterdam | 20.12.1940 | 7.1941 | sunk 1945 | "MFP-A" type | ||
| F114A | 565 | P. Smit, Rotterdam | 20.12.1940 | 7.1941 | surrendered 5.1945, to Soviet Union 1.1946 (БД-381 [BD-381]) | "MFP-A" type | ||
| F115A, 3.1944- AF75 | 246 | Rotterdamsche Droogdok, Rotterdam | 20.12.1940 | 7.1941 | gunship 3.1944, surrendered 5.1945, BU | "MFP-A" type | ||
| F116A, 2.1944- AF57 | Biesbosch, Dordrecht | 20.12.1940 | 8.1941 | gunship 2.1944, sunk 1944 | "MFP-A" type | |||
| F117A | Jabon Fréres, Ombret-Amay | 20.12.1940 | 8.1941 | surrendered 5.1945 | "MFP-A" type | |||
| F118A | Boel & Fils, Tamise | 20.12.1940 | 8.1941 | surrendered 5.1945 | "MFP-A" type | |||
| F119A | Beliard Chrichton, Antwerp | 20.12.1940 | 8.1941 | collision 23.11.1944 | "MFP-A" type | |||
| F120A, 3.1944- AF76 | Beliard Chrichton, Antwerp | 20.12.1940 | 8.1941 | gunship 3.1944, sunk 7.10.1944 | "MFP-A" type | |||
| F121A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 11.1941 | sunk 15.6.1943 | "MFP-A" type | |||
| F122A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 11.1941 | sunk 9.1944, salvaged, to Soviet Union 1946 | "MFP-A" type | |||
| F123A (in 2.1942- Trabzon) | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 11.1941 | sunk 14.10.1944 | "MFP-A" type | |||
| F124A (in 2.1942- Meganom) | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 11.1941 | sunk 19.3.1944 | "MFP-A" type | |||
| F125A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 4.10.1943 | "MFP-A" type | |||
| F126A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 4.11.1943, salvaged, never repaired | "MFP-A" type | |||
| F127A, 8.1943- Venus, 8.1943- Bremen | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | to Rumania 10.1943 | "MFP-A" type | |||
| F128A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | captured by Soviets 9.9.1944 (БДБ-12 [BDB-12]) | "MFP-A" type | |||
| F129A (in 2.1942- Tarbya) | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 27.10.1943 | "MFP-A" type | |||
| F130A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 12.5.1944 | "MFP-A" type | |||
| F131A (in 3.1942- Cavalla) | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 1.1942 | sunk 20.10.1943 | "MFP-A" type | |||
| F132A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 3.1942 | sunk 6.5.1944 | "MFP-A" type | |||
| F133A | Karolovag, Varna, Bulgaria | 18.4.1941 | 11.1941 | surrendered 9.1944 | "MFP-A" type | |||
| F134A | Karolovag, Varna, Bulgaria | 18.4.1941 | 11.1941 | sunk 5.8.1942, salvaged, repaired as auxiliary | "MFP-A" type | |||
| F135A, 8.1943- Saturn, 8.1943- Hamburg | Karolovag, Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 20.2.1944 | "MFP-A" type | |||
| F136A | Karolovag, Varna, Bulgaria | 18.4.1941 | 1.1942 | sunk 14.3.1943 | "MFP-A" type | |||
| F137A | Arsenal Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 9.1944 | "MFP-A" type | |||
| F138A | Arsenal Varna, Bulgaria | 18.4.1941 | 12.1941 | sunk 5.10.1942 | "MFP-A" type | |||
| F139A | Arsenal Varna, Bulgaria | 18.4.1941 | 1.1942 | surrendered 5.1945, to USA 5.1945 | "MFP-A" type | |||
| F140A | 873 | Gutehoffnungshütte, Rheinwerft Walsum | 18.4.1941 | 9.1941 | surrendered 5.1945, sold mercantile | "MFP-A" type | ||
| F141A, 2.1944- AF58 | 874 | Gutehoffnungshütte, Rheinwerft Walsum | 18.4.1941 | 10.1941 | gunship 2.1944, sunk 3.6.1944 | "MFP-A" type | ||
| F142A | 875 | Gutehoffnungshütte, Rheinwerft Walsum | 18.4.1941 | 10.1941 | sunk 9.1944 | "MFP-A" type | ||
| F143A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 3.1942 | "MFP-A" type | ||||
| F144A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 3.1942 | sunk 7.7.1943 | "MFP-A" type | |||
| F145A | Drzhavna verf, Varna, Bulgaria | 18.4.1941 | 3.1942 | sunk 3.6.1942 | "MFP-A" type | |||
| F146A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 23.7.1943 | "MFP-A" type | |||
| F147A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 20.7.1943 | "MFP-A" type | |||
| F148A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | "MFP-A" type | ||||
| F149A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | "MFP-A" type | ||||
| F150A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 6.12.1943 | "MFP-A" type | |||
| F151A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 2.1.1942 | "MFP-A" type | |||
| F152A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 24.1.1943 | "MFP-A" type | |||
| F153A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 16.3.1943 | "MFP-A" type | |||
| F154A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | sunk 16.3.1943 | "MFP-A" type | |||
| F155A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | "MFP-A" type | ||||
| F156A | CNR, Palermo, Italy | 18.4.1941 | 12.1941 | sunk 20.7.1942 | "MFP-A" type | |||
| F157A | CNR, Palermo, Italy | 18.4.1941 | 12.1941 | sunk 5.9.1942 | "MFP-A" type | |||
| F158A | CNR, Palermo, Italy | 18.4.1941 | 12.1941 | sunk 26.4.1943 | "MFP-A" type | |||
| F159A | CNR, Palermo, Italy | 18.4.1941 | 12.1941 | sunk 14.9.1942 | "MFP-A" type | |||
| F160A | CNR, Palermo, Italy | 18.4.1941 | 11.1941 | foundered 6.12.1941 | "MFP-A" type | |||
| F161A | Schimag, Mannheim | 18.4.1941 | 10.1941 | surrendered 5.1945, to Netherlands 4.1946 | "MFP-A" type | |||
| F162A | Schimag, Mannheim | 18.4.1941 | 11.1941 | sunk 2.1.1943 | "MFP-A" type | |||
| F163A, 3.1944- AF77 | Schimag, Mannheim | 18.4.1941 | 12.1941 | gunship 3.1944, surrendered 5.1945, to Soviet Union 11.1946 (БАД-316 [BAD-316]) | "MFP-A" type | |||
| F164A, 3.1944- AF54 | Schimag, Mannheim | 18.4.1941 | 11.1941 | gunship 3.1943, sunk 29.8.1944 | "MFP-A" type | |||
| F165A | Schimag, Mannheim | 18.4.1941 | 11.1941 | sunk 9.4.1945 | "MFP-A" type | |||
| F167A | Schimag, Mannheim | 18.4.1941 | 12.1941 | surrendered 5.1945, to Netherlands 4.1946 | "MFP-A" type | |||
| F168A | Schimag, Mannheim | 18.4.1941 | 12.1941 | sunk 14.9.1944 | "MFP-A" type | |||
| F169A, 3.1944- AF59 | Schimag, Mannheim | 18.4.1941 | 12.1941 | gunship 3.1944, surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F170A | Schimag, Mannheim | 18.4.1941 | 4.1942 | mine destruction vessel 1944, sunk 4.1945 | "MFP-A" type | |||
| F171A | Wiemann, Brandenburg | 21.4.1941 | 10.1941 | surrendered 5.1945, to Norway 7.1946 | "MFP-A" type | |||
| F172A | Wiemann, Brandenburg | 21.4.1941 | 10.1941 | surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F173A | Wiemann, Brandenburg | 21.4.1941 | 10.1941 | sunk 15.9.1944 | "MFP-A" type | |||
| F174A | Wiemann, Brandenburg | 21.4.1941 | 11.1941 | sunk 19.1.1943 | "MFP-A" type | |||
| F175A | Wiemann, Brandenburg | 21.4.1941 | 11.1941 | sunk 15.9.1944 | "MFP-A" type | |||
| F176A | Wiemann, Brandenburg | 21.4.1941 | 1.1942 | sunk 26.2.1943, salvaged by Soviets (БДБ-13 [BDB-13] 10.1944) | "MFP-A" type | |||
| F177A | Beucheldt, Glogau | 21.4.1941 | 10.1941 | sunk 15.9.1944 | "MFP-A" type | |||
| F178A | Beucheldt, Glogau | 21.4.1941 | 10.1941 | sunk 5.2.1945 | "MFP-A" type | |||
| F179A | Werft Eggers & Co., Hamburg | 21.4.1941 | 11.1941 | surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F180A, 2.1944- AF60 | Werft Eggers & Co., Hamburg | 21.4.1941 | 11.1941 | gunship 2.1944 | "MFP-A" type | |||
| F181A | Ch. Nav. de Liège, Mousin | 12.5.1941 | 4.1942 | sunk 6.1.1944 | "MFP-A" type | |||
| F182A, 3.1944- AF61 | 317 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | gunship 3.1944, surrendered 5.1945, to USA 6.1946 | "MFP-A" type | ||
| F183A, 3.1944- AF62 | 318 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | gunship 3.1944, sunk 6.6.1944 | "MFP-A" type | ||
| F184A | 319 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | sunk 12.9.1944 | "MFP-A" type | ||
| F185A | 320 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | sunk 10.9.1944 | "MFP-A" type | ||
| F186A | 321 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | sunk 10.9.1944 | "MFP-A" type | ||
| F187A | 322 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 2.1946 (БД-221 [BD-221]) | "MFP-A" type | ||
| F201A | Haarlemsche Sheepsbouw, Zaandam | 12.5.1941 | 4.1942 | sunk 26.10.1944 | "MFP-A" type | |||
| F202A | Haarlemsche Sheepsbouw, Zaandam | 12.5.1941 | 4.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | |||
| F207A | Zaanlandsche Sheepsbouw, Zaandam | 12.5.1941 | 5.1942 | surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F209A | Ceuvel, Amsterdam | 12.5.1941 | 5.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | |||
| F213A, 3.1944- AF78 | Beldt, Westgraftdijk | 12.5.1941 | 5.1942 | gunship 3.1944 | "MFP-A" type | |||
| F214A | J. Smit, Westerbroek | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 1.1946 (БД-385 [BD-385]) | "MFP-A" type | |||
| F215A | J. Smit, Westerbroek | 12.5.1941 | 5.1942 | "MFP-A" type | ||||
| F216A, 1.1944- AF79 | J. Smit, Westerbroek | 12.5.1941 | 5.1942 | gunship 1.1944, surrendered 5.1945, to Soviet Union 3.1946 (БАД-11 [BAD-11]) | "MFP-A" type | |||
| F217A | de Vooruitgang, Foxhol | 12.5.1941 | 5.1942 | sunk 11.1943 | "MFP-A" type | |||
| F218A | "Delfzijl", Sander, Delfzijl | 12.5.1941 | 5.1942 | sunk 7.3.1945 | "MFP-A" type | |||
| F221A | "Gideon" Koster, Groningen | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 1.1946 | "MFP-A" type | |||
| F223A | Van Diepen, Waterhuizen | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-399 [BD-399]) | "MFP-A" type | |||
| F224A | Van Diepen, Waterhuizen | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-332 [BD-332]) | "MFP-A" type | |||
| F225A | Van Diepen, Waterhuizen | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-383 [BD-383]) | "MFP-A" type | |||
| F226A | Van der Werf, Deest | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 1.1946 (БД-334 [BD-334]) | "MFP-A" type | |||
| F227A | Van der Werf, Deest | 12.5.1941 | 4.1942 | surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F228A | J. Smit, Foxhol | 12.5.1941 | 4.1942 | "MFP-A" type | ||||
| F229A | J. Smit, Foxhol | 12.5.1941 | 5.1942 | sunk 9.10.1943 | "MFP-A" type | |||
| F231A | Broërken, Westerbroek | 12.5.1941 | 4.1942 | sunk 4.10.1943 | "MFP-A" type | |||
| F232A | Müller, Foxhol | 12.5.1941 | 4.1942 | sunk 26.10.1944 | "MFP-A" type | |||
| F233A | "Waterhuizen" J. Pattje, Waterhuizen | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-380 [BD-380]) | "MFP-A" type | |||
| F235A | de Vooruitgang, Foxhol | 12.5.1941 | 4.1942 | surrendered 5.1945, sold | "MFP-A" type | |||
| F236A | Bodewes "Volharding", Foxhol | 12.5.1941 | 5.1942 | surrendered 5.1945, sold | "MFP-A" type | |||
| F237A | Fikkers, Martenshoek | 12.5.1941 | 5.1942 | sunk 2.3.1945 | "MFP-A" type | |||
| F238A | Bijfolt, Foxhol | 12.5.1941 | 5.1942 | surrendered 5.1945, to Denmark 1946 | "MFP-A" type | |||
| F239A | Welgelegen, Harlingen | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 6.1946 (БД-333 [BD-333) | "MFP-A" type | |||
| F241A | Bodewes, Martenshoek | 12.5.1941 | 5.1942 | sunk Winter 1944/45 | "MFP-A" type | |||
| F242A | Bodewes, Martenshoek | 12.5.1941 | 4.1942 | "MFP-A" type | ||||
| F243A | Bodewes, Martenshoek | 12.5.1941 | 5.1942 | sunk 14.7.1942 | "MFP-A" type | |||
| F244A | Bodewes, Martenshoek | 12.5.1941 | 5.1942 | foundered 22.1.1943 | "MFP-A" type | |||
| F245A | Broërken, Westerbroek | 12.5.1941 | 5.1942 | wrecked 8.3.1943 | "MFP-A" type | |||
| F246A | Bijlsma, Wartena | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 4.1946 (БД-382 [BD-382]) | "MFP-A" type | |||
| F248A | Arnhemsche Stoomsleephelling | 12.5.1941 | 5.1942 | sunk 26.4.1945 | "MFP-A" type | |||
| F249A | Arnhemsche Stoomsleephelling | 12.5.1941 | 5.1942 | sunk 12.9.1944 | "MFP-A" type | |||
| F250A | 693 | Van der Giessen, Krimpen | 12.5.1941 | 5.1942 | surrendered 5.1945, sold mercantile | "MFP-A" type | ||
| F251A | Bodewes, Millingen | 12.5.1941 | 5.1942 | sunk 20.5.1944 | "MFP-A" type | |||
| F252A | Bodewes, Millingen | 12.5.1941 | 5.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | |||
| F253A | Janssen, Druiten | 12.5.1941 | 5.1942 | sunk 23.7.1944 | "MFP-A" type | |||
| F254A, 3.1944- AF55 | Biesbosch, Dordrecht | 12.5.1941 | 4.1942 | gunship 3.1944, sunk 29.8.1944 | "MFP-A" type | |||
| F255A, 3.1944- AF63 | Biesbosch, Dordrecht | 12.5.1941 | 4.1942 | gunship 3.1944, surrendered 5.1945, sold | "MFP-A" type | |||
| F264A, 3.1944- AF56 | 474 | "De Mervede", Van Vliet, Hardinxveld | 12.5.1941 | 4.1942 | gunship 3.1944, sunk 26.8.1944 | "MFP-A" type | ||
| F270A, 1.1943- AF24 | 695 | Van der Giessen, Krimpen | 12.5.1941 | 5.1942 | gunship 1.1943, surrendered 5.1945, sold | "MFP-A" type | ||
| F277A | Beliard Chrichton, Antwerp | 12.5.1941 | 5.1942 | wrecked 8.3.1943 | "MFP-A" type | |||
| F278A | Beliard Chrichton, Antwerp | 12.5.1941 | 6.1942 | wrecked 9.2.1943 | "MFP-A" type | |||
| F279A | Beliard Chrichton, Antwerp | 12.5.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-338 [BD-338]) | "MFP-A" type | |||
| F281A | Engineering Co., Antwerp | 12.5.1941 | 5.1942 | wrecked 13.12.1942 | "MFP-A" type | |||
| F282A | Engineering Co., Antwerp | 12.5.1941 | 6.1942 | surrendered 5.1945, to Norway 5.1946 | "MFP-A" type | |||
| F283A, 3.1944- AF64 | Schiffswerft, Langerbrügge | 12.5.1941 | 6.1942 | gunship 3.1944, sunk 6.6.1944 | "MFP-A" type | |||
| F284A, 3.1944- AF65 | Schiffswerft, Langerbrügge | 12.5.1941 | 11.1942 | gunship 3.1944, surrendered 5.1945, to Soviet Union 4.1946 (БАД-160 [BAD-160]) | "MFP-A" type | |||
| F286A | Boel & Fils, Tamise | 12.5.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 2.1946 | "MFP-A" type | |||
| F287A | Ch Nav de Rupelmonde, Rupelmonde | 12.5.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 12.1945 (БД-389 [BD-389]) | "MFP-A" type | |||
| F288A, 11.1942- AF1 | Ch Nav de Rupelmonde, Rupelmonde | 12.5.1941 | 8.1942 | gunship 11.1942, sunk 16.4.1944 | "MFP-A" type | |||
| F289A | Ch Nav de Rupel, Boom | 12.5.1941 | 6.1942 | surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F291A | Ch de Nav de Hemixen | 12.5.1941 | 6.1942 | "MFP-A" type | ||||
| F292A, 11.1942- AF2 | Ch de Nav de Hemixen | 12.5.1941 | 8.1942 | gunship 11.1942, surrendered 5.1945, to Soviet Union 2.1946 | "MFP-A" type | |||
| F293A | Jacobs, Schelte | 12.5.1941 | 7.1942 | surrendered 5.1945, sold | "MFP-A" type | |||
| F294A, 11.1942- AF3 | Jacobs, Schelte | 12.5.1941 | 8.1942 | gunship 11.1942, sunk 16.6.1944 | "MFP-A" type | |||
| F295A | Jabon Fréres, Ombret-Amay | 12.5.1941 | 7.1942 | sunk 3.3.1945 | "MFP-A" type | |||
| F296A | Jabon Fréres, Ombret-Amay | 12.5.1941 | 8.1942 | sunk 6.1.1944 | "MFP-A" type | |||
| F297A | De Durme, Tielrode | 12.5.1941 | 6.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | |||
| F298A, 2.1944- AF67 | Mercantile, Antwerp | 12.5.1941 | 6.1942 | gunship 2.1944, sunk 6.6.1944 | "MFP-A" type | |||
| F299A, 3.1944- AF68 | Mercantile, Antwerp | 12.5.1941 | 6.1942 | gunship 2.1944, surrendered 5.1945, sold | "MFP-A" type | |||
| F301A, 1944- SM142 | Mercantile, Antwerp | 12.5.1941 | 6.1942 | sunk 1.9.1944 | "MFP-A" type | |||
| F302A | Mercantile, Antwerp | 12.5.1941 | 9.1942 | sunk 2.10.1943 | "MFP-A" type | |||
| F306A, 7.1943- Nixe | Gollnow-Werft, Stettin | 19.6.1941 | 5.1942 | sunk 30.11.1943 | "MFP-A" type | |||
| F307A | Gollnow-Werft, Stettin | 19.6.1941 | 8.1942 | "MFP-A" type | ||||
| F308A (in 12.1942- Athos) | Gollnow-Werft, Stettin | 19.6.1941 | 6.1942 | sunk 7.10.1943 | "MFP-A" type | |||
| F309A | Gollnow-Werft, Stettin | 19.6.1941 | 7.1942 | sunk 18.5.1943 | "MFP-A" type | |||
| F310A, 3.1943- AF4 | Gollnow-Werft, Stettin | 19.6.1941 | 7.1942 | gunship 3.1943, sunk 1.12.1944 | "MFP-A" type | |||
| F311A, 3.1943- AF5 | Gollnow-Werft, Stettin | 19.6.1941 | 9.1942 | gunship 3.1943, surrendered 5.1945, to Soviet Union 4.1946 (БАД-16 [BAD-16]) | "MFP-A" type | |||
| F312A, 1944- SM143 | Gollnow-Werft, Stettin | 19.6.1941 | 12.1942 | sunk 28.8.1944, salvaged by Soviets (БДБ-8 [BDB-8] 10.1944) | "MFP-A" type | |||
| F313A | Gollnow-Werft, Stettin | 19.6.1941 | 12.1942 | sunk 5.11.1943 | "MFP-A" type | |||
| F314A, 12.1942- Zonguldah, 12.1942- Sereth, 8.1943- Jupiter, 8.1943- Lübeck | 372 | Deutsche Werft, Hamburg | 19.6.1941 | 4.1942 | "MFP-A" type | |||
| F315A (in 12.1942- Vardar) | 373 | Deutsche Werft, Hamburg | 19.6.1941 | 4.1942 | sunk 2.10.1943 | "MFP-A" type | ||
| F316A (in 12.1942- Marmara), 7.1943- Triton, 1944- SM144 | 374 | Deutsche Werft, Hamburg | 19.6.1941 | 5.1942 | sunk 27.8.1944 | "MFP-A" type | ||
| F317A | 375 | Deutsche Werft, Hamburg | 19.6.1941 | 6.1942 | sunk 26.11.1944 | "MFP-A" type | ||
| F318A | 376 | Deutsche Werft, Hamburg | 19.6.1941 | 6.1942 | "MFP-A" type | |||
| F319A | 377 | Deutsche Werft, Hamburg | 19.6.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 3.1946 | "MFP-A" type | ||
| F320A | 378 | Deutsche Werft, Hamburg | 19.6.1941 | 7.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | ||
| F321A | 379 | Deutsche Werft, Hamburg | 19.6.941 | 8.1942 | surrendered 5.1945, to Norway 1946 | "MFP-A" type | ||
| F322A, 12.1942- Izmir, 12.1942- Marmara, 8.1943- Mars, 8.1943- Rostock | Wiemann, Brandenburg | 20.6.1941 | 6.1942 | "MFP-A" type | ||||
| F323A | Wiemann, Brandenburg | 20.6.1941 | 7.1942 | sunk 24.1.1943 | "MFP-A" type | |||
| F324A, 11.1942- AF6 | Wiemann, Brandenburg | 20.6.1941 | 8.1942 | gunship 11.1942, sunk 21.10.1944 | "MFP-A" type | |||
| F325A, 1944- SM242 | Beucheldt, Glogau | 20.6.1941 | 5.1942 | sunk 28.8.1944, salvaged by Soviets (БДБ-9 [BDB-9] 10.1944) | "MFP-A" type | |||
| F326A, 1944- SM243 | Beucheldt, Glogau | 20.6.1941 | 5.1942 | sunk 7.9.1944 | "MFP-A" type | |||
| F327A (in 12.1942- Karpathos) | Beucheldt, Glogau | 20.6.1941 | 7.1942 | sunk 7.10.1943 | "MFP-A" type | |||
| F328A | Beucheldt, Glogau | 20.6.1941 | 7.1942 | sunk 27.5.1943, salvaged by Soviets (БДБ-1 BDB-1] 1944) | "MFP-A" type | |||
| F329A | Werft Eggers & Co., Hamburg | 20.6.1941 | 7.1942 | "MFP-A" type | ||||
| F330A | Werft Eggers & Co., Hamburg | 20.6.1941 | 7.942 | sunk 20.10.1943 | "MFP-A" type | |||
| F331A (in 6.1943- Mudros) | Arsenal Varna, Bulgaria | 28.6.1941 | 7.1942 | sunk 26.9.1943 | "MFP-A" type | |||
| F332A | Arsenal Varna, Bulgaria | 28.6.1941 | 7.1942 | sunk 7.9.1944 | "MFP-A" type | |||
| F333A | Arsenal Varna, Bulgaria | 28.6.1941 | 8.1942 | sunk 28.8.1944 | "MFP-A" type | |||
| F334A | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 7.1942 | sunk 1.8.1942, salvaged and commissioned as auxiliary | "MFP-A" type | |||
| F335A, 1944- SM244 | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 7.1942 | "MFP-A" type | ||||
| F336A | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 7.1942 | sunk 8.1943 | "MFP-A" type | |||
| F337A | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 7.1942 | mine destruction vessel 1944, sunk 7.9.1944 | "MFP-A" type | |||
| F338A (in 8.1943- Chalkis) | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 8.1942 | sunk 17.10.1943 | "MFP-A" type | |||
| F339A | Drzhavna verf, Varna, Bulgaria | 28.6.1941 | 8.1942 | sunk 7.9.1944 | "MFP-A" type | |||
| F340AS, 1.1943- F340A | Karolovag, Varna, Bulgaria | 28.6.1941 | 7.1942 | hospital ship till 1.1943, sunk 29.8.1944 | "MFP-A" type | |||
| F341A | Karolovag, Varna, Bulgaria | 28.6.1941 | 7.1942 | sunk 30.11.1943 | "MFP-A" type | |||
| F342A | Karolovag, Varna, Bulgaria | 28.6.1941 | 8.1942 | sunk 7.9.1944 | "MFP-A" type | |||
| F343A (in 7.1942- Marmara) | CNR, Palermo, Italy | 28.6.1941 | 7.1942 | sunk 26.4.1943 | "MFP-A" type | |||
| F344A (in 7.1942- Stramia) | CNR, Palermo, Italy | 28.6.1941 | 7.1942 | sunk 11.5.1943 | "MFP-A" type | |||
| F345A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 9.9.1943 | "MFP-A" type | |||
| F346A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 18.11.1942 | "MFP-A" type | |||
| F347A, 1943- KF347 | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | gunship 1943 | "MFP-A" type | |||
| F348A, 1943- KF348 | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | gunship 1943 | "MFP-A" type | |||
| F349A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | "MFP-A" type | ||||
| F350A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 25.4.1944 | "MFP-A" type | |||
| F351A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | "MFP-A" type | ||||
| F352A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | "MFP-A" type | ||||
| F353A (in 7.1942- Donau) | CNR, Palermo, Italy | 28.6.1941 | 7.1942 | sunk 5.5.1943 | "MFP-A" type | |||
| F354A (in 7.1942- Pruth) | CNR, Palermo, Italy | 28.6.1941 | 7.1942 | "MFP-A" type | ||||
| F355A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 3.9.1942 | "MFP-A" type | |||
| F356A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | "MFP-A" type | ||||
| F357A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 5.9.1942 | "MFP-A" type | |||
| F358A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 19.11.1942 | "MFP-A" type | |||
| F359A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 7.9.1944 | "MFP-A" type | |||
| F360A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 3.7.1944, salvaged by Italians, (MTC1107 5.1950) | "MFP-A" type | |||
| F361A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | sunk 19.11.1942 | "MFP-A" type | |||
| F362A | CNR, Palermo, Italy | 28.6.1941 | 8.1942 | "MFP-A" type | ||||
| F363A, 2.1944- AF69 | Bayerische Schiffbau, Erlenbach | 28.6.1941 | 7.1942 | gunship 2.1944, sunk 14.6.1944 | "MFP-A" type | |||
| F364A, 12.1942- AF7 | Bayerische Schiffbau, Erlenbach | 28.6.1941 | 7.1942 | gunship 12.1942 | "MFP-A" type | |||
| F365A, 12.1942- AF8 | Bayerische Schiffbau, Erlenbach | 28.6.1941 | 10.1942 | gunship 12.1942, sunk 29.6.1944 | "MFP-A" type | |||
| F366A | Bayerische Schiffbau, Erlenbach | 28.6.1941 | 10.1942 | "MFP-A" type | ||||
| F367A (in 12.1942- Alikmon, in 12.1942- Stramia) | Schimag, Mannheim | 28.6.1941 | 6.1942 | sunk 19.5.1943 | "MFP-A" type | |||
| F368A (in 12.1942- Ayancik, in 12.1942- Drama), 1943- UJ118 | Schimag, Mannheim | 28.6.1941 | 6.1942 | sunk 29.8.1944 | "MFP-A" type | |||
| F369A (in 12.1942- Bandirma, in 12.1942- Donau) | Schimag, Mannheim | 28.6.1941 | 7.1942 | sunk 5.12.1943 | "MFP-A" type | |||
| F370A (in 12.1942- Mersin) | Schimag, Mannheim | 28.6.1941 | 7.1942 | sunk 20.10.1944 | "MFP-A" type | |||
| F371A | Schimag, Mannheim | 28.6.1941 | 7.1942 | sunk 9.3.1943 | "MFP-A" type | |||
| F372AT | Schimag, Mannheim | 28.6.1941 | 7.1942 | tanker; sunk 28.8.1944 | "MFP-A" type | |||
| F373A | Schimag, Mannheim | 28.6.1941 | 8.1942 | sunk 17.9.1944 | "MFP-A" type | |||
| F374A (in 12.1942- Haydar Paša, in 12.1942- Pruth) | Schimag, Mannheim | 28.6.1941 | 8.1942 | sunk 25.8.1944 | "MFP-A" type | |||
| F375A, 11.1942- AF9 | Schimag, Mannheim | 28.6.1941 | 9.1942 | gunship 11.1942, surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F376A, 12.1942- AF10 | Schimag, Mannheim | 28.6.1941 | 9.1942 | gunship 12.1942, surrendered 5.1945, to Soviet Union 4.1946 (БАД-371 [BAD-371]) | "MFP-A" type | |||
| F381A | "De Hoop", Hardinxveld | 7.8.1941 | 6.1942 | surrendered 5.1945, sold | "MFP-A" type | |||
| F382A | "De Hoop", Hardinxveld | 7.8.1941 | 6.1942 | sunk 9.1944 | "MFP-A" type | |||
| F383A | "De Hoop", Hardinxveld | 7.8.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-340 [BD-340]) | "MFP-A" type | |||
| F386A | Engineering Co., Antwerp | 7.8.1941 | 8.1942 | sunk 20.11.1943 | "MFP-A" type | |||
| F387A | Beauvalet & Goedeme, Gent | 7.8.1941 | 7.1942 | sunk 9.1943 | "MFP-A" type | |||
| F388A, 3.1944- AF71 | Beauvalet & Goedeme, Gent | 7.8.1941 | 6.1942 | gunship 3.1944, surrendered 5.1945, sold mercantile | "MFP-A" type | |||
| F389A | Guthrie, Murdoch & Co, Antwerp | 7.8.1941 | 6.1942 | sunk 11.4.1944 | "MFP-A" type | |||
| F391A | Guthrie, Murdoch & Co, Antwerp | 7.8.1941 | 7.1942 | sunk 20.9.1944 | "MFP-A" type | |||
| F197B | 112 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 6.1942 | surrendered 5.1945, sold | "MFP-B" type | ||
| F198B | 113 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 6.1942 | foundered 1.9.1944 | "MFP-B" type | ||
| F199B | 114 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 6.1942 | mine destruction vessel 10.1944, surrendered 5.1945, sold mercantile | "MFP-B" type | ||
| F204B | 325 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 2.1946 | "MFP-B" type | ||
| F205B | 326 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 6.1942 | surrendered 5.1945, sold mercantile | "MFP-B" type | ||
| F206B | 327 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 6.1942 | sunk 9.2.1945, salvaged, to Soviet Union 2.1946 (БД-393 [BD-393]) | "MFP-B" type | ||
| F208B | Zaanlandsche Sheepsbouw, Zaandam | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 2.1946 | "MFP-B" type | |||
| F211B | Amsterdamsche Droogdok, Amsterdam | 12.5.1941 | 5.1942 | sunk 28.8.1944 | "MFP-B" type | |||
| F212B | Amsterdamsche Droogdok, Amsterdam | 12.5.1941 | 5.1942 | sunk 1945 | "MFP-B" type | |||
| F219B, 1.1944- AF80 | "Delfzijl", Sander, Delfzijl | 12.5.1941 | 5.1942 | gunship 1.1944, surrendered 5.1945, to Soviet Union 4.1946 (БАД-12 [BAD-12]) | "MFP-B" type | |||
| F222B | "Gideon" Koster, Groningen | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 1946 | "MFP-B" type | |||
| F234B | "Waterhuizen" J. Pattje, Waterhuizen | 12.5.1941 | 5.1942 | surrendered 5.1945, sold mercantile | "MFP-B" type | |||
| F247B, 2.1944- AF81 | Unie, Groningen | 12.5.1941 | 5.1942 | gunship 2.1944, surrendered 5.1945, to Soviet Union 4.1946 (БД-304 [BD-304]) | "MFP-B" type | |||
| F280B | 696 | Van der Giessen, Krimpen | 12.5.1941 | 5.1942 | "MFP-B" type | |||
| F290B | 698 | Van der Giessen, Krimpen | 12.5.1941 | 6.1942 | "MFP-B" type | |||
| F300B, 8.1943- AF47 | 699 | Van der Giessen, Krimpen | 12.5.1941 | 6.1942 | gunship 8.1943, sunk 5.11.1944 | "MFP-B" type | ||
| F303B | Cockerill, Antwerp | 12.5.1941 | 7.1942 | sunk 28.10.1943 | "MFP-B" type | |||
| F304B | Cockerill, Antwerp | 12.5.1941 | 8.1942 | sunk 29.8.1944 | "MFP-B" type | |||
| F305B | Cockerill, Antwerp | 12.5.1941 | 8.1942 | sunk 5.12.1943 | "MFP-B" type | |||
| F377B, 3.1944- AF66 | Wiemann, Brandenburg | 28.6.1941 | 10.1942 | gunship 3.1944, sunk 24.6.1944 | "MFP-B" type | |||
| F378B, 3.1944- AF70 | Wiemann, Brandenburg | 28.6.1941 | 11.1942 | gunship 3.1944, sunk 2.9.1944 | "MFP-B" type | |||
| F379B | Wiemann, Brandenburg | 28.6.1941 | 1.1943 | sunk 25.4.1945 | "MFP-B" type | |||
| F380B | Wiemann, Brandenburg | 28.6.1941 | 1.1943 | surrendered 5.1945, sold mercantile | "MFP-B" type | |||
| F384B | "De Hoop", Hardinxveld | 7.8.1941 | 11.1942 | surrendered 5.1945, to Soviet Union 1.1946 (БД-319 [BD-319]) | "MFP-B" type | |||
| F385B | "De Hoop", Hardinxveld | 7.8.1941 | 11.1942 | surrendered 5.1945, to Soviet Union 1.1946 (БД-320 [BD-320]) | "MFP-B" type | |||
| F390B | 700 | Van der Giessen, Krimpen | 7.8.1941 | 7.1942 | surrendered 5.1945, to Soviet Union 2.1946 | "MFP-B" type | ||
| F518B | 380 | Deutsche Werft, Hamburg | 15.8.1941 | 8.1942 | "MFP-B" type | |||
| F519B | 381 | Deutsche Werft, Hamburg | 15.8.1941 | 8.1942 | sunk 7.4.1944 | "MFP-B" type | ||
| F520B, 3.1944- AF72 | 382 | Deutsche Werft, Hamburg | 15.8.1941 | 10.1942 | gunship 3.1944, sunk 6.6.1944 | "MFP-B" type | ||
| F521BS, 1.1943- F521B | 383 | Deutsche Werft, Hamburg | 15.8.1941 | 11.1942 | hospital ship till 1.1943, sunk 25.8.1944 | "MFP-B" type | ||
| F392C | Biesbosch, Dordrecht | 9.8.1941 | 7.1942 | surrendered 5.1945, to Soviet Union 1.1946 (БД-403 [BD-403]) | "MFP-C" type | |||
| F393C | Biesbosch, Dordrecht | 9.8.1941 | 8.1942 | "MFP-C" type | ||||
| F394C | Biesbosch, Dordrecht | 9.8.1941 | 8.1942 | sunk 4.1944 | "MFP-C" type | |||
| F395C | Biesbosch, Dordrecht | 9.8.1941 | 8.1942 | sunk 4.1944 | "MFP-C" type | |||
| F396C, 2.1943- AF16 | Biesbosch, Dordrecht | 9.8.1941 | 12.1942 | gunship 2.1943, surrendered 5.1945, sold | "MFP-C" type | |||
| F397C | Meyer, Zaltbommel | 9.8.1941 | 8.1942 | surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F398C | Meyer, Zaltbommel | 9.8.1941 | 11.1942 | sunk 7.8.1943 | "MFP-C" type | |||
| F399C, 2.1943- AF17 | Meyer, Zaltbommel | 9.8.1941 | 12.1942 | gunship 2.1943, surrendered 5.1945, to United Kingdom 11.1946 | "MFP-C" type | |||
| F400C, 2.1944- AF82 | Van der Giessen, Krimpen | 9.8.1941 | 8.1942 | gunship 2.1944, collision 15.12.1944, salvaged by Soviets (БД-323 [BD-323 2.1946) | "MFP-C" type | |||
| F401C | Jonker & Stans, Hendrick Ido Ambacht | 9.8.1941 | 9.1942 | sunk 9.1944 | "MFP-C" type | |||
| F402C | F4 | Van Duivendijk, Lekkerkerk | 9.8.1941 | 7.1942 | sunk 16.4.1944 | "MFP-C" type | ||
| F403C | F5 | Van Duivendijk, Lekkerkerk | 9.8.1941 | 8.1942 | surrendered 5.1945, to Norway 1946 | "MFP-C" type | ||
| F404C | F6 | Van Duivendijk, Lekkerkerk | 9.8.1941 | 11.1942 | surrendered 5.1945, sold mercantile | "MFP-C" type | ||
| F405C | 489 | "De Mervede", Van Vliet, Hardinxveld | 9.8.1941 | 7.1942 | captured by Soviets 9.1944 (БДБ-10 [BDB-10]) | "MFP-C" type | ||
| F406C | 490 | "De Mervede", Van Vliet, Hardinxveld | 9.8.1941 | 8.1942 | sunk 14.9.1944, salvaged by Soviets (БДБ-2 [BDB-2] 1944) | "MFP-C" type | ||
| F407C | 491 | "De Mervede", Van Vliet, Hardinxveld | 9.8.1941 | 10.1942 | surrendered 5.1945, sold mercantile | "MFP-C" type | ||
| F408C | 535 | Jan Smit, Alblassendam | 9.8.1941 | 11.1942 | surrendered 5.1945, sold | "MFP-C" type | ||
| F409C, 2.1943- AF18 | 536 | Jan Smit, Alblassendam | 9.8.1941 | 12.1942 | gunship 2.1943, sunk 19.11.1944 | "MFP-C" type | ||
| F410C | 702 | Van der Giessen, Krimpen | 9.8.1941 | 10.1942 | "MFP-C" type | |||
| F411C | "De Hoop", Hardinxveld | 9.8.1941 | 7.1942 | sunk 9.6.1944 | "MFP-C" type | |||
| F412C | Bodewes, Martenshoek | 9.8.1941 | 11.1942 | sunk 8.8.1943 | "MFP-C" type | |||
| F413C, 3.1943- AF19 | Bodewes, Martenshoek | 9.8.1941 | 12.1942 | gunship 3.1943, surrendered 5.1945, to Soviet Union 4.1946 (БАД-15 [BAD-15]) | "MFP-C" type | |||
| F414C, 2.1943- AF20 | Bodewes, Martenshoek | 9.8.1941 | 12.1942 | gunship 2.1943, surrendered 5.1945, to Soviet Union 3.1946 (БАД-1 [BAD-1]) | "MFP-C" type | |||
| F415C, 4.1943- AF21 | Bodewes, Martenshoek | 9.8.1941 | 12.1942 | gunship 4.1943 | "MFP-C" type | |||
| F416C, 3.1943- AF22 | Arnhemsche Stoomsleephelling | 9.8.1941 | 12.1942 | gunship 3.1943, sunk 16.11.1944 | "MFP-C" type | |||
| F417C, 4.1943- AF23 | Arnhemsche Stoomsleephelling | 9.8.1941 | 1.1943 | gunship 4.1943, surrendered 5.1945, sold | "MFP-C" type | |||
| F420C | 703 | Van der Giessen, Krimpen | 9.8.1941 | 10.1942 | sunk 22.9.1943 | "MFP-C" type | ||
| F421C | 706 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 11.1942 | sunk 5.9.1943 | "MFP-C" type | ||
| F422C | 707 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 11.1942 | sunk 18.2.1944 | "MFP-C" type | ||
| F423C | 708 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 12.1942 | sunk 24.4.1944 | "MFP-C" type | ||
| F425C, 5.1943- AF41 | 710 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 12.1942 | gunship 5.1943, surrendered 5.1945, to Soviet Union 1946 | "MFP-C" type | ||
| F426C, 5.1943- AF42 | 711 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 12.1942 | gunship 5.1943, surrendered 5.1945, to Soviet Union 4.1946 (БАД-159 [BAD-159]) | "MFP-C" type | ||
| F427C, 5.1943- AF43 | 672 | Vuijk, Capelle a. d. Ijssel | 9.8.1941 | 12.1942 | gunship 5.1943, sunk 10.9.1944 | "MFP-C" type | ||
| F428C, 5.1943- AF44 | 673 | Vuijk, Capelle a. d. Ijssel | 9.8.1941 | 12.1942 | gunship 5.1943, sunk 5.11.1944 | "MFP-C" type | ||
| F430C | 704 | Van der Giessen, Krimpen | 9.8.1941 | 11.1942 | sunk 3.8.1943 | "MFP-C" type | ||
| F431C | "Gusto", Smulders, Schiedam | 9.8.1941 | 1.1943 | sunk 29.8.1944 | "MFP-C" type | |||
| F434C | Van der Werf, Deest | 9.8.1941 | 11.1942 | sunk 8.8.1943 | "MFP-C" type | |||
| F435C | J. Smit, Foxhol | 9.8.1941 | 11.1942 | sunk 12.8.1943, salvaged by Italians (MTC1102 5.1950) | "MFP-C" type | |||
| F436C | J. Smit, Foxhol | 9.8.1941 | 4.1943 | sunk 1943, salvaged by Italians (MTC1103 5.1950) | "MFP-C" type | |||
| F437C | J. Smit, Westerbroek | 9.8.1941 | 11.1942 | sunk 19.8.1943, salvaged by Italians (MTC1104 5.1950) | "MFP-C" type | |||
| F438C, 5.1943- AF25 | J. Smit, Westerbroek | 9.8.1941 | 2.1943 | gunship 5.1943, sunk 28.9.1944 | "MFP-C" type | |||
| F439C, 10.1943- KF439 | Müller, Foxhol | 9.8.1941 | 11.1942 | gunship 10.1943, sunk 1.7.1944 | "MFP-C" type | |||
| F441C, 4.1943- AF26 | Broërken, Westerbroek | 9.8.1941 | 1.1943 | gunship 4.1943, surrendered 5.1945, to Soviet Union 3.1946 (БАД-2 [BAD-2]) | "MFP-C" type | |||
| F442C, 5.1943- AF27 | Broërken, Westerbroek | 9.8.1941 | 2.1943 | gunship 5.1943, wrecked 6.12.1944, salvaged by Soviets | "MFP-C" type | |||
| F443C, 7.1943- AF45 | Bodewes "Volharding", Foxhol | 9.8.1941 | 6.1943 | gunship 7.1943, surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F444C, 7.1943- AF46 | Welgelegen, Harlingen | 9.8.1941 | 6.1943 | gunship 7.1943, surrendered 5.1945, to Soviet Union 5.1946 (БАД-317 [BAD-317]) | "MFP-C" type | |||
| F451C | Van Duivendijk, Lekkerkerk | 9.8.1941 | 4.1943 | sunk 23.5.1944 | "MFP-C" type | |||
| F452C | Haarlemsche Sheepsbouw | 9.8.1941 | 10.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-341 [BD-341]) | "MFP-C" type | |||
| F453C | Ceuvel, Amsterdam | 9.8.1941 | 2.1943 | "MFP-C" type | ||||
| F454C | "De Hoop", Hardinxveld | 9.8.1941 | 2.1943 | sunk 21.6.1944 | "MFP-C" type | |||
| F455C | Zaanlandsche Sheepsbouw, Zaandam | 9.8.1941 | 11.1942 | surrendered 5.1945, sold | "MFP-C" type | |||
| F456C, 2.1944- KF456 | 330 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 11.1942 | gunship 2.1944, sunk 29.3.1944 | "MFP-C" type | ||
| F457C | 331 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 11.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-396 [BD-396]) | "MFP-C" type | ||
| F458C, 2.1944- KF458 | 332 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 11.1942 | gunship 2.1944, sunk 14.2.1944 | "MFP-C" type | ||
| F459C | 340 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 11.1942 | sunk 1944 | "MFP-C" type | ||
| F460C | 707 | Van der Giessen, Krimpen | 9.8.1941 | 1.1943 | wrecked 10.4.1943 | "MFP-C" type | ||
| F461C, early 1944- KF461 | 341 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 12.1942 | gunship early 1944, sunk 18.9.1944 | "MFP-C" type | ||
| F462C | 342 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 12.1942 | sunk 15.8.1943 | "MFP-C" type | ||
| F463C, 7.1943- AF36 | 343 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 1.1943 | gunship 7.1943, surrendered 5.1945, sold | "MFP-C" type | ||
| F464C, 8.1943- AF37 | 344 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 2.1943 | gunship 8.1943, surrendered 5.1945, to United Kingdom 11.1946 | "MFP-C" type | ||
| F465C, 8.1943- AF38 | 345 | Nederlandsche Scheepsbouw, Amsterdam | 9.8.1941 | 2.1943 | gunship 8.1943, surrendered 5.1945, sold mercantile | "MFP-C" type | ||
| F466C | Haarlemsche Sheepsbouw | 9.8.1941 | 11.1942 | sunk 20.7.1943 | "MFP-C" type | |||
| F469CT | 917 | Schiffswerft Linz | 9.8.1941 | 8.1942 | tanker; sunk 29.8.1944 | "MFP-C" type | ||
| F470C | 918 | Schiffswerft Linz | 9.8.1941 | 8.1942 | "MFP-C" type | |||
| F471C | 919 | Schiffswerft Linz | 9.8.1941 | 9.1942 | sunk 31.8.1944, salvaged by Soviets (БДБ-21 [BDB-21] 10.1944) | "MFP-C" type | ||
| F472CS, 1.1943- F472C | 920 | Schiffswerft Linz | 9.8.1941 | 9.1942 | hospital ship till 1.1943, sunk 29.8.1944 | "MFP-C" type | ||
| F473C | 921 | Schiffswerft Linz | 9.8.1941 | 9.1942 | damaged 17.2.1943, repair incomplete | "MFP-C" type | ||
| F474C | 922 | Schiffswerft Linz | 9.8.1941 | 9.1942 | sunk 10.10.1943 | "MFP-C" type | ||
| F475C | 923 | Schiffswerft Linz | 9.8.1941 | 10.1942 | sunk 15.3.1943 | "MFP-C" type | ||
| F476C, 7.1943- Neptun | 924 | Schiffswerft Linz | 9.8.1941 | 10.1942 | sunk 9.1944 | "MFP-C" type | ||
| F485C, 5.1943- AF28 | Triton, Meiderich | 9.8.1941 | 2.1943 | gunship 5.1943 | "MFP-C" type | |||
| F486C, early 1944- KF486 | Triton, Meiderich | 9.8.1941 | 4.1943 | gunship early 1944 | "MFP-C" type | |||
| F487C | Triton, Meiderich | 9.8.1941 | 9.1943 | surrendered 5.1945, to Soviet Union 1946 | "MFP-C" type | |||
| F488C | 876 | Gutehoffnungshütte, Rheinwerft Walsum | 9.8.1941 | 4.1943 | sunk 1944/45 | "MFP-C" type | ||
| F489C, 5.1943- AF29 | 877 | Gutehoffnungshütte, Rheinwerft Walsum | 9.8.1941 | 11.1942 | gunship 5.1943, surrendered 5.1945, sold 2.1946 | "MFP-C" type | ||
| F490C | 878 | Gutehoffnungshütte, Rheinwerft Walsum | 9.8.1941 | 2.1943 | surrendered 5.1945, to Soviet Union 12.1945 (БД-404 [BD-404]) | "MFP-C" type | ||
| F491C | 879 | Gutehoffnungshütte, Rheinwerft Walsum | 9.8.1941 | 5.1943 | sunk 10.1943 | "MFP-C" type | ||
| F498C | Beucheldt, Glogau | 15.8.1941 | 1.1943 | sunk 18.7.1944 | "MFP-C" type | |||
| F499C | Beucheldt, Glogau | 15.8.1941 | 1.1943 | surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F500C | Beucheldt, Glogau | 15.8.1941 | 1.1943 | surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F501C, 6.1943- AF30 | Beucheldt, Glogau | 15.8.1941 | 2.1943 | gunship 6.1943, sunk 27.1.1945, repaired by Soviet Union 9.1946 (БАД-17 [BAD-17]) | "MFP-C" type | |||
| F502C, 9.1943- AF31 | Beucheldt, Glogau | 15.8.1941 | 2.1943 | gunship 9.1943 | "MFP-C" type | |||
| F503C, early 1944- KF503 | Beucheldt, Glogau | 15.8.1941 | 3.1943 | gunship early 1944, sunk 1.7.1944 | "MFP-C" type | |||
| F504C | Beucheldt, Glogau | 15.8.1941 | 4.1943 | sunk 6.1944 | "MFP-C" type | |||
| F505C | Beucheldt, Glogau | 15.8.1941 | 4.1943 | sunk 29.3.1944 | "MFP-C" type | |||
| F506C | Werft Eggers & Co., Hamburg | 18.8.1941 | 10.1942 | surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F507C | Werft Eggers & Co., Hamburg | 18.8.1941 | 11.1942 | "MFP-C" type | ||||
| F508C | Werft Eggers & Co., Hamburg | 18.8.1941 | 11.1942 | "MFP-C" type | ||||
| F509C | Werft Eggers & Co., Hamburg | 18.8.1941 | 1.1943 | sunk 21.9.1943 | "MFP-C" type | |||
| F510C | Gollnow-Werft, Stettin | 15.8.1941 | 1.1943 | "MFP-C" type | ||||
| F511C | Gollnow-Werft, Stettin | 15.8.1941 | 2.1943 | surrendered 5.1945, sunk 8.11.1945 | "MFP-C" type | |||
| F512C | Gollnow-Werft, Stettin | 15.8.1941 | 3.1943 | surrendered 5.1945, sold mercantile | "MFP-C" type | |||
| F513C | Gollnow-Werft, Stettin | 15.8.1941 | 5.1943 | sunk 13.3.1944 | "MFP-C" type | |||
| F514C | Gollnow-Werft, Stettin | 15.8.1941 | 5.1943 | sunk 9.12.1943 | "MFP-C" type | |||
| F515C | Gollnow-Werft, Stettin | 15.8.1941 | 5.1943 | sunk 25.4.1944 | "MFP-C" type | |||
| F516C | Gollnow-Werft, Stettin | 15.8.1941 | 6.1943 | "MFP-C" type | ||||
| F517C | Gollnow-Werft, Stettin | 15.8.1941 | 6.1943 | sunk 9.5.1945 | "MFP-C" type | |||
| AF32 (ex-F526C) | Schimag, Mannheim | 15.8.1941 | 12.1942 | gunship, sunk 21.6.1944 | "MFP-C" type | |||
| F527C, 4.1943- AF33 | Schimag, Mannheim | 15.8.1941 | 1.1943 | gunship 4.1943, surrendered 5.1945, to Soviet Union 1.1946 (БАД-5 [BAD-5]) | "MFP-C" type | |||
| AF34 (ex-F528C) | Schimag, Mannheim | 15.8.1941 | 1.1943 | gunship, surrendered 5.1945, sold | "MFP-C" type | |||
| F532C (in 8.1943 Stylis) | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 8.1942 | sunk 7.10.1943 | "MFP-C" type | |||
| F533C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 8.1942 | sunk 18.9.1942 | "MFP-C" type | |||
| F534C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 9.1942 | sunk 7.9.1944 | "MFP-C" type | |||
| F535C (in 7.1943- Najade) | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 9.1942 | sunk 29.8.1944 | "MFP-C" type | |||
| F536C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 10.1942 | foundered 23.11.1943 | "MFP-C" type | |||
| F537C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 10.1942 | sunk 9.1944 | "MFP-C" type | |||
| F540C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 8.1942 | "MFP-C" type | ||||
| F541C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 8.1942 | sunk 22.10.1943 | "MFP-C" type | |||
| F542C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 9.1942 | sunk 17.6.1944 | "MFP-C" type | |||
| F543C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 10.1942 | foundered 25.12.1942 | "MFP-C" type | |||
| F544C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 11.1942 | sunk 5.3.1943 | "MFP-C" type | |||
| F545C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 11.1942 | "MFP-C" type | ||||
| F546C | Drzhavna verf, Varna, Bulgaria | 26.9.1941 | 11.1942 | wrecked 23.7.1943 | "MFP-C" type | |||
| F587C | 414 | Deutsche Werft, Hamburg | 12.5.1942 | 5.1943 | sunk 14.2.1944 | "MFP-C" type | ||
| F588C | 415 | Deutsche Werft, Hamburg | 12.5.1942 | 5.1943 | sunk 13.3.1944 | "MFP-C" type | ||
| F589C, early 1944- KF589 | 416 | Deutsche Werft, Hamburg | 12.5.1942 | 5.1943 | gunship early 1944, sunk 1.7.1944 | "MFP-C" type | ||
| F590C | 417 | Deutsche Werft, Hamburg | 12.5.1942 | 5.1943 | sunk 5.1944 | "MFP-C" type | ||
| F601C, 9.1943- AF12 | Beucheldt, Glogau | 12.5.1942 | 5.1943 | gunship 9.1943, sunk 25.5.1944 | "MFP-C" type | |||
| F602C, 9.1943- AF13 | Beucheldt, Glogau | 12.5.1942 | 6.1943 | gunship 9.1943, sunk 27.8.1944 | "MFP-C" type | |||
| F603C, 9.1943- AF14 | Beucheldt, Glogau | 12.5.1942 | 6.1943 | gunship 9.1943, surrendered 5.1945, to Soviet Union 4.1946 (БАД-400 [BAD-400]) | "MFP-C" type | |||
| F604C, 9.1943- AF15 | Beucheldt, Glogau | 12.5.1942 | 6.1943 | gunship 9.1943, sunk 9.6.1944 | "MFP-C" type | |||
| F429C2 | "Gusto", Smulders, Schiedam | 9.8.1941 | 2.1943 | sunk 6.8.1943 | "MFP-C2" type | |||
| F432C2 | "Gusto", Smulders, Schiedam | 9.8.1941 | 8.1942 | sunk 23.7.1943 | "MFP-C2" type | |||
| F433C2 | "Gusto", Smulders, Schiedam | 9.8.1941 | 2.1943 | sunk 24.10.1944 | "MFP-C2" type | |||
| F440C2 | 705 | Van der Giessen, Krimpen | 9.8.1941 | 2.1943 | sunk 7.8.1943 | "MFP-C2" type | ||
| F450C2 | 706 | Van der Giessen, Krimpen | 9.8.1941 | 2.1943 | sunk 6.4.1944 | "MFP-C2" type | ||
| AF11 (ex-F468C2) | Beliard Chrichton, Antwerp | 9.8.1941 | 2.1943 | gunship, sunk 16.6.1944 | "MFP-C2" type | |||
| F477C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | sunk 11.4.1943 | "MFP-C2" type | |||
| F478C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | sunk 10.9.1943 | "MFP-C2" type | |||
| F479C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | sunk 29.3.1944 | "MFP-C2" type | |||
| F480C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | "MFP-C2" type | ||||
| F481C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | sunk 5.9.1943 | "MFP-C2" type | |||
| F482C2 | CNR, Palermo, Italy | 9.8.1941 | 12.1942 | sunk 28.5.1944 | "MFP-C2" type | |||
| F484C2 | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | sunk 5.11.1944 | "MFP-C2" type | |||
| F492C2 | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | sunk 28.10.1943 | "MFP-C2" type | |||
| F493C2 | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | sunk 28.10.1943 | "MFP-C2" type | |||
| F494C2 (in 6.1943- Tinos) | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | sunk 7.10.1943 | "MFP-C2" type | |||
| F495C2 (in 6.1943- Naxos) | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | captured by Soviets 9.9.1944 (БДБ-11 [BDB-11]) | "MFP-C2" type | |||
| F496C2 (in 6.1943- Paros) | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | sunk 7.10.1943 | "MFP-C2" type | |||
| F497C2 (in 6.1943- Andros) | Drzhavna verf, Varna, Bulgaria | 15.8.1941 | 4.1943 | "MFP-C2" type | ||||
| F522C2 | Bayerische Schiffbau, Erlenbach | 15.8.1941 | 1.1943 | sunk 11.3.1945 | "MFP-C2" type | |||
| F523C2 | Bayerische Schiffbau, Erlenbach | 15.8.1941 | 2.1943 | sunk 24.1.1944 | "MFP-C2" type | |||
| F524C2, 7.1943- AF48 | Bayerische Schiffbau, Erlenbach | 15.8.1941 | 2.1943 | gunship 7.1943, sunk 10.9.1944 | "MFP-C2" type | |||
| F525C2, 8.1943- AF49 | Bayerische Schiffbau, Erlenbach | 15.8.1941 | 3.1943 | gunship 8.1943, surrendered 5.1945, sold mercantile | "MFP-C2" type | |||
| F529C2, 5.1943- AF50 | Schimag, Mannheim | 15.8.1941 | 2.1943 | gunship 5.1943, surrendered 5.1945, to USA 1946 | "MFP-C2" type | |||
| AF39 (ex-F530C2) | Schimag, Mannheim | 15.8.1941 | 2.1943 | gunship, surrendered 5.1945, sold | "MFP-C2" type | |||
| AF40 (ex-F531C2) | Schimag, Mannheim | 15.8.1941 | 3.1943 | gunship, surrendered 5.1945, sold | "MFP-C2" type | |||
| F553C2 | Wiemann, Brandenburg | 15.4.1942 | 5.1943 | sunk 24.6.1944 | "MFP-C2" type | |||
| F554C2 | Wiemann, Brandenburg | 15.4.1942 | 6.1943 | sunk 20.2.1945 | "MFP-C2" type | |||
| F555C2 | Wiemann, Brandenburg | 15.4.1942 | 7.1943 | sunk 9.4.1945 | "MFP-C2" type | |||
| F556C2, 9.1943- AF35 | Werft Eggers & Co., Hamburg | 15.4.1942 | 5.1943 | gunship 9.1943, sunk 28.8.1944 | "MFP-C2" type | |||
| F557C2 | Werft Eggers & Co., Hamburg | 15.4.1942 | 6.1943 | sunk 7.6.1944 | "MFP-C2" type | |||
| F558C2 | Drzhavna verf, Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 9.1944 | "MFP-C2" type | |||
| F559C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 8.1944 | "MFP-C2" type | |||
| F560C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 2.11.1943 | "MFP-C2" type | |||
| F561C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 14.9.1944 | "MFP-C2" type | |||
| F562C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 8.1944 | "MFP-C2" type | |||
| F563C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 14.9.1944 | "MFP-C2" type | |||
| F564C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 15.4.1944 | "MFP-C2" type | |||
| F565C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 13.4.1944 | "MFP-C2" type | |||
| F566C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 2.12.1943 | "MFP-C2" type | |||
| F567C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 29.8.1944 | "MFP-C2" type | |||
| F573C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 30.11.1943 | "MFP-C2" type | |||
| F574C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 30.11.1943 | "MFP-C2" type | |||
| F575C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | captured by Soviets 29.8.1944 (БДБ-20 [BDB-20]) | "MFP-C2" type | |||
| F576C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | wrecked 26.8.1944 | "MFP-C2" type | |||
| F577C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 28.10.1943 | "MFP-C2" type | |||
| F578C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 9.1944 | "MFP-C2" type | |||
| F579C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 14.9.1944 | "MFP-C2" type | |||
| F580C2 | Varna, Bulgaria | 15.4.1942 | 8.1943 | sunk 9.12.1943 | "MFP-C2" type | |||
| F581C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 1944 | "MFP-C2" type | |||
| F582C2T | Varna, Bulgaria | 15.4.1942 | 9.1943 | tanker; sunk 29.8.1944 | "MFP-C2" type | |||
| F583C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 14.9.1944 | "MFP-C2" type | |||
| F584C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 31.8.1944 | "MFP-C2" type | |||
| F585C2T | Varna, Bulgaria | 15.4.1942 | 9.1943 | tanker; sunk 29.8.1944 | "MFP-C2" type | |||
| F586C2 | Varna, Bulgaria | 15.4.1942 | 9.1943 | sunk 14.9.1944 | "MFP-C2" type | |||
| F595C2 | Gollnow-Werft, Stettin | 12.5.1942 | 9.1943 | sunk 25.7.1944 | "MFP-C2" type | |||
| F596C2 | Gollnow-Werft, Stettin | 12.5.1942 | 9.1943 | "MFP-C2" type | ||||
| F597C2, early 1944- KF597 | Gollnow-Werft, Stettin | 12.5.1942 | 9.1943 | gunship early 1944, sunk 18.9.1944 | "MFP-C2" type | |||
| F598C2 | Gollnow-Werft, Stettin | 12.5.1942 | 9.1943 | sunk 22.1.1944 | "MFP-C2" type | |||
| F599C2 | Gollnow-Werft, Stettin | 12.5.1942 | 11.1943 | sunk 24.10.1944 | "MFP-C2" type | |||
| F600C2 | Gollnow-Werft, Stettin | 12.5.1942 | 12.1943 | surrendered 5.1945, to Soviet Union 3.1946 (БД-395 [BD-395]) | "MFP-C2" type | |||
| F605C2 | Bayerische Schiffbau, Erlenbach | 12.5.1942 | 5.1943 | surrendered 5.1945, sold mercantile | "MFP-C2" type | |||
| F606C2 | Bayerische Schiffbau, Erlenbach | 12.5.1942 | 6.1943 | surrendered 5.1945, to Soviet Union 12.1945 (БД-406 [BD-406]) | "MFP-C2" type | |||
| F607C2 | F C de la Méditerranée, La Seyne | 12.5.1942 | 6.1943 | sunk 16.8.1943 | "MFP-C2" type | |||
| F608C2 | F C de la Méditerranée, La Seyne | 12.5.1942 | 6.1943 | sunk 4.1944 | "MFP-C2" type | |||
| F609C2 | F C de la Méditerranée, La Seyne | 12.5.1942 | 6.1943 | sunk 27.3.1944 | "MFP-C2" type | |||
| F610C2 | Constructions Navales, La Ciotat | 12.5.1942 | 6.1943 | sunk 25.4.1944 | "MFP-C2" type | |||
| F611C2 | F C de la Méditerranée, La Seyne | 12.5.1942 | 7.1943 | sunk 5.6.1944 | "MFP-C2" type | |||
| F612C2 | F C de la Méditerranée, La Seyne | 12.5.1942 | 7.1943 | sunk 8.1944 | "MFP-C2" type | |||
| F613C2, early 1944- KF613 | Constructions Navales, La Ciotat | 12.5.1942 | 7.1943 | gunship early 1944, sunk 7.6.1944 | "MFP-C2" type | |||
| F614C2 | Constructions Navales, La Ciotat | 12.5.1942 | 7.1943 | "MFP-C2" type | ||||
| F615C2 | Constructions Navales, La Ciotat | 12.5.1942 | 7.1943 | sunk 1944 | "MFP-C2" type | |||
| F616C2 | C A de Provence, Port de Bouc | 12.5.1942 | 7.1943 | sunk 12.9.1944 | "MFP-C2" type | |||
| F617C2 | C A de Provence, Port de Bouc | 12.5.1942 | 6.1943 | sunk 24.4.1945 | "MFP-C2" type | |||
| F618C2 | C A de Provence, Port de Bouc | 12.5.1942 | 5.1943 | sunk 8.8.1943 | "MFP-C2" type | |||
| F619C2 | C A de Provence, Port de Bouc | 12.5.1942 | 8.1943 | sunk 17.8.1944 | "MFP-C2" type | |||
| F620C2, early 1944- KF620 | Van der Giessen, Krimpen | 12.5.1942 | 7.1943 | gunship early 1944, sunk 1.7.1944 | "MFP-C2" type | |||
| F621C2 | Van der Giessen, Krimpen | 12.5.1942 | 8.1943 | sunk 25.4.1944 | "MFP-C2" type | |||
| F622C2 | Van der Giessen, Krimpen | 12.5.1942 | 7.1943 | sunk 19.4.1944 | "MFP-C2" type | |||
| F623C2 | Van der Giessen, Krimpen | 12.5.1942 | 8.1943 | sunk 9.9.1944 | "MFP-C2" type | |||
| F624C2 | Van der Giessen, Krimpen | 12.5.1942 | 8.1943 | foundered 5.9.1943 | "MFP-C2" type | |||
| F625C2 | Van der Giessen, Krimpen | 12.5.1942 | 8.1943 | sunk 11.10.1944 | "MFP-C2" type | |||
| F626C2 | Van der Giessen, Krimpen | 12.5.1942 | 8.1943 | sunk 1944 | "MFP-C2" type | |||
| F591C2A | 903 | Schiffswerft Linz | 12.5.1942 | 6.1943 | sunk 29.8.1944 | "MFP-C2A" type | ||
| F592C2A | 904 | Schiffswerft Linz | 12.5.1942 | 6.1943 | sunk 15.11.1943 | "MFP-C2A" type | ||
| F593C2A | 905 | Schiffswerft Linz | 12.5.1942 | 6.1943 | "MFP-C2A" type | |||
| F594C2A | 906 | Schiffswerft Linz | 12.5.1942 | 6.1943 | sunk 28.11.1943 | "MFP-C2A" type | ||
| F802D | Schimag, Mannheim | 7.5.1942 | 3.1943 | surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F803D | 21.5.1942 | 9.1943 | "MFP-D" type | |||||
| F804D | 21.5.1942 | 9.1943 | "MFP-D" type | |||||
| F805D | 21.5.1942 | 9.1943 | surrendered 5.1945, sold | "MFP-D" type | ||||
| F806D | 21.5.1942 | 9.1943 | "MFP-D" type | |||||
| F807D | 21.5.1942 | 10.1943 | "MFP-D" type | |||||
| F808D | Gutehoffnungshütte, Rheinwerft Walsum | 21.5.1942 | 10.1943 | "MFP-D" type | ||||
| F809D, 3.1944- AF83 | 880 | Gutehoffnungshütte, Rheinwerft Walsum | 21.5.1942 | 10.1943 | gunship 3.1944, surrendered 5.1945, sold mercantile | "MFP-D" type | ||
| F810D, 3.1944- AF84 | Gutehoffnungshütte, Rheinwerft Walsum | 21.5.1942 | 10.1943 | gunship 3.1944 | "MFP-D" type | |||
| F811D | Schimag, Mannheim | 21.5.1942 | 3.1944 | sunk 27.7.1944 | "MFP-D" type | |||
| F812D | Schimag, Mannheim | 21.5.1942 | 3.1944 | sunk 21.8.1944 | "MFP-D" type | |||
| F813D, 4.1944- AF93 | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, sold | "MFP-D" type | ||||
| F814D | Constructions Navales, La Ciotat | 21.5.1942 | 4.1944 | wrecked 21.8.1944 | "MFP-D" type | |||
| F815D, 4.1944- AF95 | Schimag, Mannheim | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, to USA 6.1946 | "MFP-D" type | |||
| F816D, 5.1944- AF96 | Schimag, Mannheim | 21.5.1942 | 11.1943 | gunship 5.1944, sunk 24.7.1944 | "MFP-D" type | |||
| F817D, 5.1944- AF97 | Schimag, Mannheim | 21.5.1942 | 12.1943 | gunship 5.1944, sunk 26.8.1944 | "MFP-D" type | |||
| F818D, 6.1944- AF94 | Schimag, Mannheim | 21.5.1942 | 12.1943 | gunship 6.1944, surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F821D | Bayerische Schiffbau, Erlenbach | 21.5.1942 | 11.1943 | surrendered 5.1945, to Soviet Union 12.1945(БД-407 [BD-407]) | "MFP-D" type | |||
| F822D | Bayerische Schiffbau, Erlenbach | 21.5.1942 | 12.1943 | sunk 15.9.1944 | "MFP-D" type | |||
| F823D | Schimag, Mannheim | 23.5.1942 | 10.1944 | sunk 1945 | "MFP-D" type | |||
| F824D | Schimag, Mannheim | 23.5.1942 | 2.1945 | "MFP-D" type | ||||
| F826D, 3.1944- AF85 | Schimag, Mannheim | 23.5.1942 | 11.1943 | gunship 3.1944, sunk 26.6.1944 | "MFP-D" type | |||
| F828D | Schimag, Mannheim | 21.5.1942 | 11.1943 | surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F830D, 4.1944- AF98 | 21.5.1942 | 11.1943 | gunship 4.1944, sunk 27.8.1944 | "MFP-D" type | ||||
| F831D | 21.5.1942 | 12.1943 | sunk 24.4.1945, salvaged by Italians (MZ831 1946) | "MFP-D" type | ||||
| F832D, 4.1944- AF100 | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, to Soviet Union 2.1946 (БАД-13 [BAD-13]) | "MFP-D" type | ||||
| F833D, 4.1944- AF101 | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, sold mercantile | "MFP-D" type | ||||
| F834D, 4.1944- AF102 | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, to Soviet Union 3.1946 (БАД-14 [BAD-14]) | "MFP-D" type | ||||
| F835D, 5.1944- AF103 | 21.5.1942 | 12.1943 | gunship 5.1944, sunk 25.8.1944 | "MFP-D" type | ||||
| F836D, 4.1944- AF104 | 21.5.1942 | 11.1943 | gunship 4.1944, surrendered 5.1945, sold mercantile | "MFP-D" type | ||||
| F837D, 5.1944- AF105 | 21.5.1942 | 11.1943 | gunship 5.1944, sunk 26.8.1944 | "MFP-D" type | ||||
| F838D, 4.1944- AF106 | 21.5.1942 | 1.1944 | gunship 4.1944, sunk 2.5.1945 | "MFP-D" type | ||||
| F839D, 5.1944- AF107 | 21.5.1942 | 2.1944 | gunship 5.1944, surrendered 5.1945, sold | "MFP-D" type | ||||
| F840D | 21.5.1942 | 3.1944 | surrendered 5.1945, to Soviet Union 4.1946 (БД-388 [BD-388]) | "MFP-D" type | ||||
| F841D | 21.5.1942 | 2.1944 | surrendered 5.1945, foundered 26.8.1945 | "MFP-D" type | ||||
| F842D | 21.5.1942 | 1.1944 | surrendered 5.1945, to Soviet Union 1946 | "MFP-D" type | ||||
| F843D | 21.5.1942 | 1.1944 | foundered 19.11.1944 | "MFP-D" type | ||||
| AF99 (ex-F844D) | 21.5.1942 | 1.1944 | gunship, sunk 5.7.1944 | "MFP-D" type | ||||
| F845D | 21.5.1942 | 2.1944 | surrendered 5.1945, sold mercantile | "MFP-D" type | ||||
| F846D | 21.5.1942 | 1.1944 | sunk 25.4.1945 | "MFP-D" type | ||||
| F847D | 21.5.1942 | 1.1944 | surrendered 5.1945, sold mercantile | "MFP-D" type | ||||
| F848D | Varna, Bulgaria | 21.5.1942 | 11.1943 | sunk 25.8.1944, salvaged by Soviets (БДБ-3 [BDB-3] 10.1944) | "MFP-D" type | |||
| F849D | Varna, Bulgaria | 21.5.1942 | 11.1943 | sunk 29.8.1944 | "MFP-D" type | |||
| F850D | Varna, Bulgaria | 21.5.1942 | 11.1943 | wrecked 25.8.1944 | "MFP-D" type | |||
| F851D | Varna, Bulgaria | 21.5.1942 | 12.1943 | to Bulgaria 8.1944 (Soviet БДБ-4 [BDB-4] 10.1944) | "MFP-D" type | |||
| F852D | Varna, Bulgaria | 21.5.1942 | 12.1943 | to Bulgaria 8.1944 (Soviet БДБ-5 [BDB-5] 10.1944) | "MFP-D" type | |||
| F853D, 4.1944- AF108 | Schimag, Mannheim | 5.10.1942 | 1.1944 | gunship 4.1944, sunk 27.8.1944 | "MFP-D" type | |||
| F854D, 6.1944- AF109 | Schimag, Mannheim | 5.10.1942 | 1.1944 | gunship 6.1944, surrendered 5.1945, sold | "MFP-D" type | |||
| F855D | Schimag, Mannheim | 5.10.1942 | 12.1943 | sunk 1944 | "MFP-D" type | |||
| F856D, 6.1944- AF110 | Schimag, Mannheim | 5.10.1942 | 12.1943 | gunship 6.1944, sunk 26.8.1944 | "MFP-D" type | |||
| F859D | C A de Provence, Port de Bouc | 5.10.1942 | 5.1944 | wrecked 22.8.1944 | "MFP-D" type | |||
| F860D | C A de Provence, Port de Bouc | 5.10.1942 | 6.1944 | surrendered 5.1945, sold | "MFP-D" type | |||
| F861D | Marseilles | 5.10.1942 | 8.1944 | surrendered 5.1945, sold | "MFP-D" type | |||
| F862D | Gutehoffnungshütte, Rheinwerft Walsum | 5.10.1942 | 12.1943 | "MFP-D" type | ||||
| F863D | Gutehoffnungshütte, Rheinwerft Walsum | 5.10.1942 | 12.1943 | sunk 12.9.1944 | "MFP-D" type | |||
| F864D | Marseilles | 5.10.1942 | 1.1944 | surrendered 5.1945, to France | "MFP-D" type | |||
| F865D | Constructions Navales, La Ciotat | 5.10.1942 | 6.1944 | sunk 24.4.1945 | "MFP-D" type | |||
| F866D | Beucheldt, Glogau | 5.10.1942 | 10.1943 | surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F867D | Beucheldt, Glogau | 5.10.1942 | 10.1943 | surrendered 5.1945, to Soviet Union 12.1945 (БД-408 [BD-408]) | "MFP-D" type | |||
| F868D | Beucheldt, Glogau | 5.10.1942 | 11.1943 | sunk 15.9.1944 | "MFP-D" type | |||
| F869D, 8.1944- AF87 | Beucheldt, Glogau | 5.10.1942 | 11.1943 | gunship 8.1944, sunk 19.9.1944 | "MFP-D" type | |||
| F870D, 8.1944- AF88 | Beucheldt, Glogau | 5.10.1942 | 11.1943 | gunship 8.1944, surrendered 5.1945, sold | "MFP-D" type | |||
| F871D, 8.1944- AF89 | Beucheldt, Glogau | 20.1.1943 | 1.1944 | gunship 8.1944, sunk 18.9.1944 | "MFP-D" type | |||
| F872D, 8.1944- AF90 | Beucheldt, Glogau | 20.1.1943 | 1.1944 | gunship 8.1944, surrendered 5.1945, to Soviet Union 2.1946 | "MFP-D" type | |||
| F873D | Beucheldt, Glogau | 20.1.1943 | 2.1944 | sunk 25.4.1945 | "MFP-D" type | |||
| F874D | Beucheldt, Glogau | 20.1.1943 | 2.1944 | damaged 22.3.1945, never repaired | "MFP-D" type | |||
| F875D | Schimag, Mannheim | 20.1.1943 | 9.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-409 [BD-409]) | "MFP-D" type | |||
| F876D | Schimag, Mannheim | 20.1.1943 | 9.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-412 [BD-412]) | "MFP-D" type | |||
| F877D, 5.1944- AF111 | Schimag, Mannheim | 20.1.1943 | 12.1943 | gunship 5.1944, sunk 25.8.1944 | "MFP-D" type | |||
| F878D, 5.1944- AF112 | Schimag, Mannheim | 20.1.1943 | 1.1944 | gunship 5.1944, surrendered 5.1945, wrecked 8.6.1946 | "MFP-D" type | |||
| F879D | Schimag, Mannheim | 20.1.1943 | 10.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-415 [BD-415]) | "MFP-D" type | |||
| F880D | Schimag, Mannheim | 20.1.1943 | 11.1944 | sunk 28.1.1945 | "MFP-D" type | |||
| F881D | Schimag, Mannheim | 20.1.1943 | 10.1944 | surrendered 5.1945, to Soviet Union 12.1945 | "MFP-D" type | |||
| F882D, (planned as AF119) | Schimag, Mannheim | 20.1.1943 | 2.1944 | captured by USA 29.3.1945 | "MFP-D" type | |||
| F883D | 20.1.1943 | 2.1944 | wrecked 22.8.1944 | "MFP-D" type | ||||
| F884D | 20.1.1943 | 2.1944 | sunk 11.3.1944 | "MFP-D" type | ||||
| F885D | Constructions Navales, La Ciotat | 20.1.1943 | --- // 8.1945 | incomplete to France (MFP2) | "MFP-D" type | |||
| F886D | F C de la Méditerranée, La Seyne | 20.1.1943 | 2.1944 | sunk 20.8.1944 | "MFP-D" type | |||
| F887D | Arsenal Toulon | 20.1.1943 | 2.1944 | surrendered 5.1945, sold | "MFP-D" type | |||
| F888D | C A de Provence, Port de Bouc | 20.1.1943 | 2.1944 | sunk 11.3.1944 | "MFP-D" type | |||
| F889D | F C de la Méditerranée, La Seyne | 20.1.1943 | 2.1944 | sunk 20.8.1944 | "MFP-D" type | |||
| F891D | F C de la Méditerranée, La Seyne | 20.1.1943 | --- // | incomplete to France | "MFP-D" type | |||
| F892D | 20.1.1943 | 2.1944 | "MFP-D" type | |||||
| F893D | 907 | Schiffswerft Linz | 20.1.1943 | 3.1944 | sunk 27.8.1944 | "MFP-D" type | ||
| F894D | 908 | Schiffswerft Linz | 20.1.1943 | 3.1944 | sunk 29.8.1944, salvaged by Soviets (БДБ-29 [BDB-29] 6.1945) | "MFP-D" type | ||
| F895D | 909 | Schiffswerft Linz | 20.1.1943 | 3.1944 | wrecked 25.8.1944 | "MFP-D" type | ||
| F896D | 910 | Schiffswerft Linz | 20.1.1943 | 3.1944 | sunk 29.8.1944 | "MFP-D" type | ||
| F897D | 911 | Schiffswerft Linz | 20.1.1943 | 3.1944 | sunk 10.1944 | "MFP-D" type | ||
| F898D | 927 | Schiffswerft Linz | 20.1.1943 | 3.1944 | sunk 10.1944 | "MFP-D" type | ||
| F899D | Schiffswerft Linz | 20.1.1943 | 8.1944 | sunk 8.1944 | "MFP-D" type | |||
| F900D | Varna, Bulgaria | 20.1.1943 | 12.1943 | to Bulgaria 8.1944 (Soviet БДБ-6 [BDB-6] 10.1944) | "MFP-D" type | |||
| F901D | Varna, Bulgaria | 20.1.1943 | 12.1943 | to Bulgaria 8.1944 (Soviet БДБ-7 [BDB-7] 10.1944) | "MFP-D" type | |||
| F902D | Varna, Bulgaria | 20.1.1943 | 12.1943 | to Bulgaria 8.1944 (Soviet БДБ-14 or 15 or 16 [BDB-14/15/16] 10.1944) | "MFP-D" type | |||
| F903D | Varna, Bulgaria | 20.1.1943 | 1.1944 | to Bulgaria 8.1944 (Soviet БДБ-14 or 15 or 16 [BDB-14/15/16] 10.1944) | "MFP-D" type | |||
| F909D | 8 | Gutehoffnungshütte, Wien | 20.1.1943 | 8.1944 | captured by USA 5.1945 | "MFP-D" type | ||
| F910D | 9 | Gutehoffnungshütte, Wien | 20.1.1943 | 10.1944 | captured by USA 5.1945 | "MFP-D" type | ||
| F911D | 10 | Gutehoffnungshütte, Wien | 20.1.1943 | --- | sunk incomplete 7.10.1944 | "MFP-D" type | ||
| F912D, 5.1944- AT912 | 928 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 14.9.1944 | "MFP-D" type | ||
| F913D, 5.1944- AT913 | 929 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 28.8.1944 | "MFP-D" type | ||
| F914D, 5.1944- AT914 | 930 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 20.9.1944 | "MFP-D" type | ||
| F915D, 5.1944- AT915 | 931 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 9.1944 | "MFP-D" type | ||
| F916D, 5.1944- AT916 | 932 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 6.5.1945 | "MFP-D" type | ||
| F917D, 5.1944- AT917 | 933 | Schiffswerft Linz | 20.1.1943 | 2.1944 | gunship 5.1944, sunk 6.5.1945 | "MFP-D" type | ||
| F918D | F C de la Méditerranée, La Seyne | 20.1.1943 | --- | incomplete to France 1945 | "MFP-D" type | |||
| F919D | F C de la Méditerranée, La Seyne | 20.1.1943 | --- | incomplete to France 1945 | "MFP-D" type | |||
| F921D | Bayerische Schiffbau, Erlenbach | 20.1.1943 | 5.1944 | surrendered 5.1945, to Soviet Union 1.1946 (БД-327 [BD-327]) | "MFP-D" type | |||
| F927D | F C de la Méditerranée, La Seyne | 5.4.1943 | --- | BU incomplete | "MFP-D" type | |||
| F928D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.5.1944 | "MFP-D" type | |||
| F930D | F C de la Méditerranée, La Seyne | 5.4.1943 | 6.1944 | surrendered 5.1945, to France | "MFP-D" type | |||
| F931D | Arsenal Toulon | 5.4.1943 | 2.1944 | "MFP-D" type | ||||
| F934D | F C de la Méditerranée, La Seyne | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-D" type | |||
| F935D | C A de Provence, Port de Bouc | 5.4.1943 | 6.1944 | "MFP-D" type | ||||
| F936D | Marseilles | 5.4.1943 | 2.1944 | "MFP-D" type | ||||
| F937D | F C de la Méditerranée, La Seyne | 5.4.1943 | --- // 1945 | incomplete to France 8.1944 | "MFP-D" type | |||
| F940D | Constructions Navales, La Ciotat | 5.4.1943 | 7.1944 | sunk 22.8.1944 | "MFP-D" type | |||
| F941D | Constructions Navales, La Ciotat | 5.4.1943 | 6.1944 | sunk 19.8.1944 | "MFP-D" type | |||
| F942D | CRDA, Monfalcone, Italy | 5.4.1943 | 8.1944 | sunk 12.10.1944 | "MFP-D" type | |||
| F945D | Arsenal Toulon | 5.4.1943 | --- | sunk incomplete 5.1944 | "MFP-D" type | |||
| F946D | Constructions Navales, La Ciotat | 5.4.1943 | --- // 2.1945 | incomplete to France (MFP1) | "MFP-D" type | |||
| F947D | C A de Provence, Port de Bouc | 5.4.1943 | --- | incomplete to France | "MFP-D" type | |||
| F948D | CRDA, Monfalcone, Italy | 5.4.1943 | 9.1944 | sunk 21.2.1945 | "MFP-D" type | |||
| F950D | 5.4.1943 | --- // 1946 | incomplete to France | "MFP-D" type | ||||
| F951D | CRDA, Monfalcone, Italy | 5.4.1943 | 9.1944 | "MFP-D" type | ||||
| F953D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.5.1944 | "MFP-D" type | |||
| F954D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.5.1944 | "MFP-D" type | |||
| F955D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.5.1944 | "MFP-D" type | |||
| F956D | CRDA, Monfalcone, Italy | 5.4.1943 | 9.1944 | sunk 1944/45 | "MFP-D" type | |||
| F957D | Arsenal Toulon | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-D" type | |||
| F958D | Arsenal Toulon | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-D" type | |||
| F959D | Constructions Navales, La Ciotat | 5.4.1943 | --- // 4.1945 | incomplete to France 8.1944 | "MFP-D" type | |||
| F960D | Arsenal Toulon | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-D" type | |||
| F961D | CRDA, Monfalcone, Italy | 5.4.1943 | 10.1944 | sunk 13.4.1945 | "MFP-D" type | |||
| F962D | CRDA, San Marco, Italy | 5.4.1943 | 2.1944 | sunk 17.9.1944 | "MFP-D" type | |||
| F963D | CRDA, San Marco, Italy | 5.4.1943 | 9.1944 | sunk 7.8.1944 | "MFP-D" type | |||
| F964D | CRDA, San Marco, Italy | 5.4.1943 | 8.1944 | sunk 1944/45 | "MFP-D" type | |||
| F965D | F C de la Méditerranée, La Seyne | 5.4.1943 | 8.1944 | "MFP-D" type | ||||
| F966D | F C de la Méditerranée, La Seyne | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-D" type | |||
| F968D | CRDA, Monfalcone, Italy | 5.4.1943 | 7.1944 | sunk 7.8.1944 | "MFP-D" type | |||
| F969D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.4.1944 | "MFP-D" type | |||
| F970D | CRDA, Monfalcone, Italy | 5.4.1943 | --- | sunk incomplete 25.4.1944 | "MFP-D" type | |||
| F971D | CRDA, San Marco, Italy | 5.4.1943 | 7.1944 | sunk 1.5.1945 | "MFP-D" type | |||
| F972D | CRDA, San Marco, Italy | 5.4.1943 | 8.1944 | sunk 18.9.1944 | "MFP-D" type | |||
| F973D | CRDA, San Marco, Italy | 5.4.1943 | 8.1944 | sunk 12.10.1944 | "MFP-D" type | |||
| F974D | Bayerische Schiffbau, Erlenbach | 5.4.1943 | 10.1944 | sunk 7.3.1945 | "MFP-D" type | |||
| F975D | Bayerische Schiffbau, Erlenbach | 5.4.1943 | 10.1944 | sunk 1.5.1945 | "MFP-D" type | |||
| F976D | 5.4.1943 | 1.1944 | surrendered 5.1945, to Soviet Union 1.1946 (БД-413 BD-413]) | "MFP-D" type | ||||
| F977D | 5.4.1943 | 1.1944 | surrendered 5.1945, BU | "MFP-D" type | ||||
| F978D | 5.4.1943 | 1.1944 | sunk 26.1.1945 | "MFP-D" type | ||||
| F979D | 5.4.1943 | 1.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-370 [BD-370]) | "MFP-D" type | ||||
| F980D | Gollnow-Werft, Stettin | 5.4.1943 | 1.1945 | surrendered 5.1945, to Soviet Union 12.1945 (БД-368 [BD-368]) | "MFP-D" type | |||
| F981D | Gollnow-Werft, Stettin | 5.4.1943 | 3.1945 | surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F982D | F C de la Méditerranée, La Seyne | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F983D | Marseilles | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F984D | Constructions Navales, La Ciotat | 5.4.1943 | 9.1944 | "MFP-D" type | ||||
| F985D | F C de la Méditerranée, La Seyne | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F986D | Marseilles | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F987D | C A de Provence, Port de Bouc | 5.4.1943 | --- // 1945 | incomplete to France 8.1944 | "MFP-D" type | |||
| F988D | F C de la Méditerranée, La Seyne | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F989D | Arsenal Toulon | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F990D | Arsenal Toulon | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F991D | Constructions Navales, La Ciotat | 5.4.1943 | 3.1944 | "MFP-D" type | ||||
| F992D | F C de la Méditerranée, La Seyne | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F993D | Arsenal Toulon | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F994D | F C de la Méditerranée, La Seyne | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F995D | Arsenal Toulon | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F996D | Constructions Navales, La Ciotat | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F997D | C A de Provence, Port de Bouc | 5.4.1943 | --- // 1946 | incomplete to France (MFP3) | "MFP-D" type | |||
| F998D | F C de la Méditerranée, La Seyne | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F999D | Arsenal Toulon | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F1000D | Arsenal Toulon | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F1001D | C A de Provence, Port de Bouc | 5.4.1943 | 4.1944 | "MFP-D" type | ||||
| F1002D | F C de la Méditerranée, La Seyne | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1003D, 12.1944- KF1003 | Arsenal Toulon | 5.4.1943 | 5.1944 | gunship 12.1944 | "MFP-D" type | |||
| F1004D, 12.1944- KF1004 | Arsenal Toulon | 5.4.1943 | 5.1944 | gunship 12.1944 | "MFP-D" type | |||
| F1005D, 12.1944- KF1005 | Constructions Navales, La Ciotat | 5.4.1943 | 5.1944 | gunship 12.1944 | "MFP-D" type | |||
| F1006D | F C de la Méditerranée, La Seyne | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1007D | Arsenal Toulon | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1008D | Arsenal Toulon | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1009D | C A de Provence, Port de Bouc | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1010D | F C de la Méditerranée, La Seyne | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1011D | Constructions Navales, La Ciotat | 5.4.1943 | 5.1944 | "MFP-D" type | ||||
| F1027D | 943 | Schiffswerft Linz | 5.4.1943 | 9.1944 | sunk 27.10.1944 | "MFP-D" type | ||
| F1028D | 944 | Schiffswerft Linz | 5.4.1943 | 10.1944 | sunk 5.1945 | "MFP-D" type | ||
| F1029D | 945 | Schiffswerft Linz | 5.4.1943 | 10.1944 | captured by USA 5.1945 | "MFP-D" type | ||
| F1031D | 442 | Erste Donau Dampf.-Ges., Korneuburg | 5.4.1943 | --- | sunk incomplete 5.1945 | "MFP-D" type | ||
| F1032D | 443 | Erste Donau Dampf.-Ges., Korneuburg | 5.4.1943 | --- | sunk incomplete 5.1945 | "MFP-D" type | ||
| F1035D | 5.4.1943 | 8.1944 | sunk 27.10.1944 | "MFP-D" type | ||||
| F1037D | 5.4.1943 | 8.1944 | mine destruction vessel 2.1945 | "MFP-D" type | ||||
| F1038D | 5.4.1943 | 8.1944 | captured by USA 5.1945 | "MFP-D" type | ||||
| F1039D | 5.4.1943 | --- | captured incomplete by USA 5.1945 | "MFP-D" type | ||||
| F1040D | 5.4.1943 | --- | sunk incomplete 8.5.1945 | "MFP-D" type | ||||
| F1041D | 5.4.1943 | 9.1944 | captured by USA 5.1945 | "MFP-D" type | ||||
| F1049D | 5 | Jucho-Werft, Rendsburg | 5.4.1943 | 1.1945 | surrendered 5.1945, to Soviet Union 3.1946 (БД-346 [BD-346]) | "MFP-D" type | ||
| F1050D | 6 | Jucho-Werft, Rendsburg | 5.4.1943 | 3.1945 | "MFP-D" type | |||
| F1052D (planned as AF122) | 2823 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-D" type | ||
| F1056D (planned as AF125) | 568 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-D" type | ||
| F1061D | Beucheldt, Glogau | 5.4.1943 | 11.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-378 [BD-378]) | "MFP-D" type | |||
| F1062D | Beucheldt, Glogau | 5.4.1943 | 11.1944 | surrendered 5.1945, foundered 8.5.1946 | "MFP-D" type | |||
| F1063D | Beucheldt, Glogau | 5.4.1943 | 11.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-369 [BD-369]) | "MFP-D" type | |||
| F1064D | Beucheldt, Glogau | 5.4.1943 | 11.1944 | "MFP-D" type | ||||
| F1067D | 652 | Schimag, Mannheim | 5.4.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1068D | 653 | Schimag, Mannheim | 5.4.1943 | --- | BU incomplete | "MFP-D" type | ||
| AF91 (ex-F1070D) | Bayerische Schiffbau, Erlenbach | 10.6.1943 | 6.1944 | gunship, surrendered 5.1945, sold mercantile | "MFP-D" type | |||
| F1071D | Bayerische Schiffbau, Erlenbach | 10.6.1943 | 6.1944 | "MFP-D" type | ||||
| F1072D | Bayerische Schiffbau, Erlenbach | 10.6.1943 | 9.1944 | wrecked 27.1.1945 | "MFP-D" type | |||
| AF127 (ex-F1074D) | Bayerische Schiffbau, Erlenbach | 10.6.1943 | 3.1945 | gunship, surrendered 5.1945 | "MFP-D" type | |||
| F1075D | Gollnow-Werft, Stettin | 10.6.1943 | 3.1945 | "MFP-D" type | ||||
| F1076D | Gollnow-Werft, Stettin | 10.6.1943 | --- | sunk incomplete 30.8.1944 | "MFP-D" type | |||
| F1077D | Gollnow-Werft, Stettin | 10.6.1943 | --- | sunk incomplete 30.8.1944 | "MFP-D" type | |||
| F1078D | Gollnow-Werft, Stettin | 10.6.1943 | --- | sunk incomplete 30.8.1944 | "MFP-D" type | |||
| F1079D | Gollnow-Werft, Stettin | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1080D | Gollnow-Werft, Stettin | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1081D | Beucheldt, Glogau | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1082D | Beucheldt, Glogau | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1083D | Beucheldt, Glogau | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1084D | Beucheldt, Glogau | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1085D | Beucheldt, Glogau | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1086D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| AF128 (ex-F1099D) | Schimag, Mannheim | 10.6.1943 | 3.1945 | gunship, sunk 26.3.1945 | "MFP-D" type | |||
| F1103D | 946 | Schiffswerft Linz | 10.6.1943 | 10.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-414 [BD-414]) | "MFP-D" type | ||
| F1104D | 947 | Schiffswerft Linz | 10.6.1943 | 11.1944 | captured by Czechoslovakian 9.5.1945 | "MFP-D" type | ||
| F1105D | 948 | Schiffswerft Linz | 10.6.1943 | 11.1944 | "MFP-D" type | |||
| F1106D | 949 | Schiffswerft Linz | 10.6.1943 | 11.1944 | "MFP-D" type | |||
| F1107D | 950 | Schiffswerft Linz | 10.6.1943 | 11.1944 | "MFP-D" type | |||
| F1108D | 951 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1109D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1110D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1111D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1112D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1113D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1114D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1115D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1116D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1117D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1118D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1120D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1121D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1122D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1123D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1124D | 444 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1125D | 445 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1126D | 446 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1127D | 447 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1128D | 448 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1129D | 449 | Erste Donau Dampf.-Ges., Korneuburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1130D | 970 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1131D | 971 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1132D | 972 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1133D | 973 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1134D | 974 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1135D | 975 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1136D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1137D | 955 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1138D | 956 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1139D | 957 | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||
| F1140D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1141D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1142D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1143D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1144D | Schiffswerft Linz | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1145D | Jucho-Werft, Rendsburg | 10.6.1943 | 1945 | surrendered 5.1945, to United Kingdom 11.1946 | "MFP-D" type | |||
| F1146D | Jucho-Werft, Rendsburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1147D | Jucho-Werft, Rendsburg | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1148D | CRDA, Monfalcone, Italy | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1149D | CRDA, Monfalcone, Italy | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1150D | CRDA, Monfalcone, Italy | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1151D | CRDA, Monfalcone, Italy | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1152D | CRDA, Monfalcone, Italy | 10.6.1943 | --- | BU incomplete | "MFP-D" type | |||
| F1154D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1155D | CNQ, Fiume, Italy | 10.6.1943 | 10.1944 | surrendered 5.1945, to Italy 1945 (MZ1155) | "MFP-D" type | |||
| F1156D | CNQ, Fiume, Italy | 10.6.1943 | 11.1944 | sunk 25.4.1945 | "MFP-D" type | |||
| F1157D | CNQ, Fiume, Italy | 10.6.1943 | 12.1944 | sunk early 1945 | "MFP-D" type | |||
| F1158D | CNQ, Fiume, Italy | 10.6.1943 | 1.1945 | sunk early 1945 | "MFP-D" type | |||
| F1159D | CNQ, Fiume, Italy | 10.6.1943 | 2.1945 | surrendered 5.1945, wrecked 5.1945 | "MFP-D" type | |||
| F1160D | CNQ, Fiume, Italy | 10.6.1943 | 2.1945 | "MFP-D" type | ||||
| F1161D | CRDA, Monfalcone, Italy | 10.6.1943 | 3.1945 | "MFP-D" type | ||||
| F1162D | CNQ, Fiume, Italy | 10.6.1943 | 3.1945 | "MFP-D" type | ||||
| F1163D | CNQ, Fiume, Italy | 10.6.1943 | 4.1945 | "MFP-D" type | ||||
| F1164D | CNQ, Fiume, Italy | 10.6.1943 | 3.1945 | "MFP-D" type | ||||
| F1165D | CRDA, San Marco, Italy | 10.6.1943 | 7.1944 | sunk 1944/45 | "MFP-D" type | |||
| F1166D | CRDA, San Marco, Italy | 10.6.1943 | 8.1944 | sunk 21.8.1944 | "MFP-D" type | |||
| F1167D | CRDA, San Marco, Italy | 10.6.1943 | 9.1944 | captured by United Kingdom 2.5.1945 | "MFP-D" type | |||
| F1168D | CRDA, Monfalcone, Italy | 10.6.1943 | 3.1945 | captured by Yugoslavia 1.5.1945 | "MFP-D" type | |||
| F1169D | CRDA, San Marco, Italy | 10.6.1943 | 3.1945 | captured by Yugoslavia 1.5.1945 | "MFP-D" type | |||
| F1170D | CRDA, San Marco, Italy | 10.6.1943 | 3.1945 | "MFP-D" type | ||||
| F1171D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1172D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1173D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1174D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1175D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1176D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1177D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1178D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1179D | 10.6.1943 | 12.1944 | sunk 1945 | "MFP-D" type | ||||
| F1180D | 10.6.1943 | 1.1945 | sunk 1945 | "MFP-D" type | ||||
| F1191D | CRDA, San Marco, Italy | 10.6.1943 | 12.1944 | surrendered 5.1945, to Italy 1945 | "MFP-D" type | |||
| F1192D | CRDA, San Marco, Italy | 10.6.1943 | 12.1944 | sunk 1945 | "MFP-D" type | |||
| F1193D | CRDA, San Marco, Italy | 10.6.1943 | --- // 5.1945 | completed to Yugoslavia | "MFP-D" type | |||
| F1194D | CRDA, San Marco, Italy | 10.6.1943 | 12.1944 | sunk 17.2.1945 | "MFP-D" type | |||
| F1195D | CRDA, San Marco, Italy | 10.6.1943 | 12.1944 | sunk 17.2.1945 | "MFP-D" type | |||
| F1196D | 10.6.1943 | 1.1945 | "MFP-D" type | |||||
| F1197D | 10.6.1943 | 1.1945 | "MFP-D" type | |||||
| F1198D | 10.6.1943 | 2.1945 | sunk 17.2.1945 | "MFP-D" type | ||||
| F1199D | 10.6.1943 | 2.1945 | sunk 17.2.1945 | "MFP-D" type | ||||
| F1200D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1201D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1202D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1203D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1204D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1205D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1206D | 10.6.1943 | --- | BU incomplete | "MFP-D" type | ||||
| F1207D (planned as AF129) | 782 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1945 | completed mercantile | "MFP-D" type | ||
| F1208D (planned as AF130) | 783 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1945 | completed mercantile | "MFP-D" type | ||
| F1213D | Beucheldt, Glogau | 24.2.1944 | --- | BU incomplete | "MFP-D" type | |||
| F1214D | Beucheldt, Glogau | 24.2.1944 | --- | BU incomplete | "MFP-D" type | |||
| F1215D | Beucheldt, Glogau | 24.2.1944 | --- | BU incomplete | "MFP-D" type | |||
| F1216D | Beucheldt, Glogau | 24.2.1944 | --- | BU incomplete | "MFP-D" type | |||
| F1217D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1218D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1219D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1220D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1221D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1222D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1223D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1224D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1225D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1226D | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||||
| F1227D | 952 | Schiffswerft Linz | 24.2.1944 | 1.1945 | captured by USA 8.5.1945 | "MFP-D" type | ||
| F1228D | 953 | Schiffswerft Linz | 24.2.1944 | 1.1945 | captured by USA 8.5.1945 | "MFP-D" type | ||
| F1229D | 954 | Schiffswerft Linz | 24.2.1944 | 2.1945 | sunk 8.5.1945 | "MFP-D" type | ||
| F1230D | 964 | Schiffswerft Linz | 24.2.1944 | 2.1945 | sunk 8.5.1945 | "MFP-D" type | ||
| F1231D | 965 | Schiffswerft Linz | 24.2.1944 | 3.1945 | captured by USA 8.5.1945 | "MFP-D" type | ||
| F1232D | 966 | Schiffswerft Linz | 24.2.1944 | 4.1945 | captured by USA 8.5.1945 | "MFP-D" type | ||
| F1233D | 967 | Schiffswerft Linz | 24.2.1944 | --- // 1952 | completed mercantile | "MFP-D" type | ||
| F1234D | 968 | Schiffswerft Linz | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||
| F1235D | 969 | Schiffswerft Linz | 24.2.1944 | --- | BU incomplete | "MFP-D" type | ||
| F166AM | Schimag, Mannheim | 18.4.1941 | 11.1941 | surrendered 5.1945, to Soviet Union 2.1946 (БД-321 [BD-321]) | "MFP-AM" type | |||
| F188AM | 323 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 2.1946 (БД-384 [BD-384]) | "MFP-AM" type | ||
| F189AM | 324 | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | "MFP-AM" type | |||
| F190AM | 687 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | sunk 11.9.1944 | "MFP-AM" type | ||
| F191AM | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | collision 24.11.1944 | "MFP-AM" type | |||
| F192AM | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | surrendered 5.1945, scuttled 10.5.1946 | "MFP-AM" type | |||
| F193AM | Nederlandsche Scheepsbouw, Amsterdam | 12.5.1941 | 4.1942 | sunk 1.5.1945 | "MFP-AM" type | |||
| F194AM | 109 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 3.1942 | surrendered 5.1945, sold | "MFP-AM" type | ||
| F195AM | 110 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 4.1942 | surrendered 5.1945, sold | "MFP-AM" type | ||
| F196AM | 111 | Nederlandsche Droogdok, Amsterdam | 12.5.1941 | 6.1942 | surrendered 5.1945, to Soviet Union 4.1946 (БД-392 [BD-392]) | "MFP-AM" type | ||
| F200AM | 688 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | sunk 7.3.1945 | "MFP-AM" type | ||
| F203AM | Haarlemsche Sheepsbow | 12.5.1941 | 3.1942 | sunk 27.9.1944 | "MFP-AM" type | |||
| F210AM | 689 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | surrendered 5.1945, sold mercantile | "MFP-AM" type | ||
| F220AM | 690 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 2.1946 | "MFP-AM" type | ||
| F230AM | 691 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | surrendered 5.1945, sold | "MFP-AM" type | ||
| F240AM | 692 | Van der Giessen, Krimpen | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 2.1946 (БД-335 [BD-335]) | "MFP-AM" type | ||
| F256AM | Biesbosch, Dordrecht | 12.5.1941 | 4.1942 | sunk 10.7.1942 | "MFP-AM" type | |||
| F257AM | Biesbosch, Dordrecht | 12.5.1941 | 4.1942 | sunk 4.1945 | "MFP-AM" type | |||
| F258AM | Biesbosch, Dordrecht | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 12.1945 (БД-419 [BD-419]) | "MFP-AM" type | |||
| F259AM | "De Hoop", Hardinxveld | 12.5.1941 | 4.1942 | surrendered 5.1945, sold | "MFP-AM" type | |||
| F260AM | 694 | Van der Giessen, Krimpen | 12.5.1941 | 5.1942 | surrendered 5.1945, sold | "MFP-AM" type | ||
| F261AM | Meyer, Zaltbommel | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-336 [BD-336]) | "MFP-AM" type | |||
| F262AM | Meyer, Zaltbommel | 12.5.1941 | 5.1942 | surrendered 5.1945, to Soviet Union 4.1946 (БД-387 [BD-387]) | "MFP-AM" type | |||
| F263AM | Meyer, Zaltbommel | 12.5.1941 | 5.1942 | surrendered 5.1945, wrecked 14.7.1945 | "MFP-AM" type | |||
| F265AM | 475 | "De Mervede", Van Vliet, Hardinxveld | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-390 [BD-390]) | "MFP-AM" type | ||
| F266AM | 476 | "De Mervede", Van Vliet, Hardinxveld | 12.5.1941 | 4.1942 | sunk 4.1945 | "MFP-AM" type | ||
| F267AM | F1 | Van Duivendijk, Lekkerkerk | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-318 [BD-318]) | "MFP-AM" type | ||
| F268AM | F2 | Van Duivendijk, Lekkerkerk | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 2.1946 (БД-322 [BD-322]) | "MFP-AM" type | ||
| F269AM | F3 | Van Duivendijk, Lekkerkerk | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 3.1946 | "MFP-AM" type | ||
| F285AM | Boel & Fils, Tamise | 12.5.1942 | 4.1942 | sunk 7.3.1945 | "MFP-AM" type | |||
| F271CM | Jonker & Stans, Hendrick Ido Ambacht | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 3.1946 (БД-391 [BD-391]) | "MFP-CM" type | |||
| F272CM | Jonker & Stans, Hendrick Ido Ambacht | 12.5.1941 | 4.1942 | surrendered 5.1945, sold mercantile | "MFP-CM" type | |||
| F273CM | De Haan & Oerlemans, Heusden | 12.5.1941 | 3.1942 | sunk 22.7.1944 | "MFP-CM" type | |||
| F274CM | De Haan & Oerlemans, Heusden | 12.5.1941 | 3.1942 | surrendered 5.1945, sold mercantile | "MFP-CM" type | |||
| F424CM | 709 | Wilton-Fijenoord, Schiedam | 9.8.1941 | 12.1942 | sunk 27.7.1944 | "MFP-CM" type | ||
| F538CM | Karolovag, Varna, Bulgaria | 26.9.1941 | 9.1942 | sunk 19.12.1942 | "MFP-CM" type | |||
| F539CM | Karolovag, Varna, Bulgaria | 26.9.1941 | 9.1942 | sunk 1.9.1944 | "MFP-CM" type | |||
| F275C2M | 533 | Jan Smit, Alblassendam | 12.5.1941 | 4.1942 | surrendered 5.1945, to Norway 1946 | "MFP-C2M" type | ||
| F276C2M | 534 | Jan Smit, Alblassendam | 12.5.1941 | 4.1942 | surrendered 5.1945, to Soviet Union 1946 (БД-337 [BD-337]) | "MFP-C2M" type | ||
| F418C2M | 836 | Schiffswerft Linz | 9.8.1941 | 4.1943 | damaged 17.10.1943, never repaired | "MFP-C2M" type | ||
| F419C2M | 837 | Schiffswerft Linz | 9.8.1941 | 4.1943 | sunk 11.11.1943 | "MFP-C2M" type | ||
| F445C2M | 838 | Schiffswerft Linz | 9.8.1941 | 4.1943 | sunk 28.8.1944 | "MFP-C2M" type | ||
| F446C2M | 839 | Schiffswerft Linz | 9.8.1941 | 4.1943 | sunk 9.1.1944 | "MFP-C2M" type | ||
| F447C2M | 840 | Schiffswerft Linz | 9.8.1941 | 5.1943 | sunk 28.8.1944 | "MFP-C2M" type | ||
| F448C2M | 841 | Schiffswerft Linz | 9.8.1941 | 5.1943 | sunk 28.8.1944, salvaged by Soviets (БДБ-67 [BDB-67] 11.1946) | "MFP-C2M" type | ||
| F449C2M | 912 | Schiffswerft Linz | 9.8.1941 | 5.1943 | sunk 9.11.1943 | "MFP-C2M" type | ||
| F467C2M | 913 | Pot, Bolnes | 9.8.1941 | 5.1943 | sunk 28.8.1944 | "MFP-C2M" type | ||
| F483C2M | CNR, Palermo, Italy | 9.8.1941 | 11.1942 | "MFP-C2M" type | ||||
| F568C2M | Varna, Bulgaria | 15.4.1942 | 10.1943 | sunk 20.8.1944 | "MFP-C2M" type | |||
| F569C2M | Varna, Bulgaria | 15.4.1942 | 10.1943 | sunk 15.4.1944 | "MFP-C2M" type | |||
| F570C2M | Varna, Bulgaria | 15.4.1942 | 10.1943 | sunk 29.8.1944, salvaged by Soviets (БДБ-68 [BDB-68] 11.1946) | "MFP-C2M" type | |||
| F571C2M | Varna, Bulgaria | 15.4.1942 | 10.1943 | captured by Bulgarian 29.8.1944, to Soviet Union 9.1944 | "MFP-C2M" type | |||
| F572C2M | Varna, Bulgaria | 15.4.1942 | 10.1943 | sunk 29.8.1944 | "MFP-C2M" type | |||
| F801DM | 797 | Stülcken, Hamburg | 7.5.1942 | 11.1942 | sunk 16.9.1944 | "MFP-DM" type | ||
| F819DM | Arsenal Toulon | 23.5.1942 | 6.1944 | sunk 24.4.1945 | "MFP-DM" type | |||
| F820DM | Arsenal Toulon | 23.5.1942 | 4.1944 | sunk 24.8.1944 | "MFP-DM" type | |||
| F825DM, 7.1944- AF92? | Schimag, Mannheim | 23.5.1942 | 3.1945 | gunship 7.1944?, sunk 3.11.1944 | "MFP-DM" type | |||
| F827DM | Schimag, Mannheim | 21.5.1942 | 11.1943 | sunk 2.7.1944 | "MFP-DM" type | |||
| F829DM | 21.5.1942 | 11.1943 | sunk 5.11.1944 | "MFP-DM" type | ||||
| F857DM, 3.1944- AF86 | 881 | Gutehoffnungshütte, Rheinwerft Walsum | 5.10.1942 | 12.1943 | gunship 3.1944, sunk 21.11.1944 | "MFP-DM" type | ||
| F858DM | 882 | Gutehoffnungshütte, Rheinwerft Walsum | 5.10.1942 | 3.1944 | surrendered 5.1945, sold mercantile | "MFP-DM" type | ||
| F890DM | Arsenal Toulon | 20.1.1943 | 2.1944 | sunk 24.4.1945 | "MFP-DM" type | |||
| F904DM | 20.1.1943 | 1.1944 | to Bulgaria 8.1944 (Soviet БДБ-14 or 15 or 16 [BDB-14/15/16] 10.1944) | "MFP-DM" type | ||||
| F905DM | 20.1.1943 | 1.1944 | to Bulgaria 8.1944 (Soviet БДБ-14 or 15 or 16 [BDB-14/15/16] 10.1944) | "MFP-DM" type | ||||
| F906DM | Gollnow-Werft, Stettin | 20.1.1943 | 1.1944 | to Bulgaria 8.1944 (Soviet БДБ-14 or 15 or 16 [BDB-14/15/16] 10.1944) | "MFP-DM" type | |||
| F907DM | Gollnow-Werft, Stettin | 20.1.1943 | 2.1944 | to Bulgaria 8.1944 | "MFP-DM" type | |||
| F908DM | Gollnow-Werft, Stettin | 20.1.1943 | 2.1944 | sunk 25.8.1944 | "MFP-DM" type | |||
| F920DM, 3.1945- AF120 | Bayerische Schiffbau, Erlenbach | 20.1.1943 | 5.1944 | gunship 3.1945, sunk 25.3.1945 | "MFP-DM" type | |||
| F922DM | F. C. de la Méditerranée, La Seyne | 5.4.1943 | 5.1944 | "MFP-DM" type | ||||
| F923DM | F. C. de la Méditerranée, La Seyne | 5.4.1943 | 5.1944 | sunk 1944/45 | "MFP-DM" type | |||
| F924DM | CRDA, Monfalcone, Italy | 5.4.1943 | 1944 | sunk 25.5.1944 | "MFP-DM" type | |||
| F925DM | CRDA, Monfalcone, Italy | 5.4.1943 | 7.1944 | sunk 20.8.1944 | "MFP-DM" type | |||
| F926DM | CRDA, Monfalcone, Italy | 5.4.1943 | 7.1944 | sunk 18.11.1944 | "MFP-DM" type | |||
| F929DM | CRDA, Monfalcone, Italy | 5.4.1943 | 11.1944 | sunk 18.11.1944 | "MFP-DM" type | |||
| F932DM | Arsenal Toulon | 5.4.1943 | 8.1944 | "MFP-DM" type | ||||
| F933DM | Arsenal Toulon | 5.4.1943 | --- | incomplete to France 8.1944 | "MFP-DM" type | |||
| F938DM | F. C. de la Méditerranée, La Seyne | 5.4.1943 | 4.1944 | sunk 24.8.1944 | "MFP-DM" type | |||
| F939DM | F. C. de la Méditerranée, La Seyne | 5.4.1943 | 4.1944 | "MFP-DM" type | ||||
| F943DM | CRDA, Monfalcone, Italy | 5.4.1943 | 11.1944 | surrendered 5.1945, to Italy 1946 | "MFP-DM" type | |||
| F944DM | CRDA, Monfalcone, Italy | 5.4.1943 | 12.1944 | sunk 2.5.1945 | "MFP-DM" type | |||
| F949DM | CRDA, Monfalcone, Italy | 5.4.1943 | 8.1944 | sunk 1944/45 | "MFP-DM" type | |||
| F952DM | CRDA, Monfalcone, Italy | 5.4.1943 | 10.1944 | sunk 20.2.1945 | "MFP-DM" type | |||
| F967DM | F. C. de la Méditerranée, La Seyne | 5.4.1943 | 9.1944 | "MFP-DM" type | ||||
| F1017DM | Schiffswerft Linz | 5.4.1943 | --- | BU incomplete 5.1945 | "MFP-DM" type | |||
| F1021DM | Schiffswerft Linz | 5.4.1943 | --- // 5.1945 | completed as Soviet БДБ-25 [BDB-25] | "MFP-DM" type | |||
| F1022DM | Schiffswerft Linz | 5.4.1943 | --- // 5.1945 | completed as Soviet БДБ-26 [BDB-26] | "MFP-DM" type | |||
| F1023DM | Schiffswerft Linz | 5.4.1943 | --- // 5.1945 | completed as Soviet БДБ-27 [BDB-27] | "MFP-DM" type | |||
| F1024DM | Schiffswerft Linz | 5.4.1943 | --- // 5.1945 | completed as Soviet БДБ-28 [BDB-28] | "MFP-DM" type | |||
| F1025DM | Schiffswerft Linz | 5.4.1943 | --- // 6.1946 | completed as Soviet БДБ-40 [BDB-40] | "MFP-DM" type | |||
| F1026DM | Schiffswerft Linz | 5.4.1943 | --- | BU incomplete 5.1945 | "MFP-DM" type | |||
| F1030DM | Gutehoffnungshütte, Wien | 5.4.1943 | --- | sunk incomplete 7.10.1944 | "MFP-DM" type | |||
| F1033DM | 5.4.1943 | 5.1944 | captured by USA 5.1945 | "MFP-DM" type | ||||
| F1034DM | 5.4.1943 | 5.1944 | sunk 7.10.1944 | "MFP-DM" type | ||||
| F1036DM | 5.4.1943 | 9.1944 | sunk 6.10.1944 | "MFP-DM" type | ||||
| F1042DM | CRDA, Monfalcone, Italy | 5.4.1943 | 1.1945 | sunk 1.5.1945 | "MFP-DM" type | |||
| F1043DM | CRDA, Monfalcone, Italy | 5.4.1943 | 10.1944 | damaged 21.2.1945, repair incomplete | "MFP-DM" type | |||
| F1044DM | CRDA, Monfalcone, Italy | 5.4.1943 | 11.1944 | sunk 2.5.1945 | "MFP-DM" type | |||
| F1045DM | CRDA, Monfalcone, Italy | 5.4.1943 | 12.1944 | surrendered 5.1945, to Italy 1945 | "MFP-DM" type | |||
| KF1046 (ex-F1046DM) | CRDA, Monfalcone, Italy | 5.4.1943 | 1.1945 | gunship, surrendered 5.1945, to Italy 1945 (MZ1046) | "MFP-DM" type | |||
| F1047DM (planned as KF1047) | CRDA, Monfalcone, Italy | 5.4.1943 | 11.1944 | sunk 1.5.1945 | "MFP-DM" type | |||
| F1048DM | 5.4.1943 | 12.1944 | surrendered 5.1945, to Soviet Union 12.1945 (БД-379 [BD-379]) | "MFP-DM" type | ||||
| F1051DM (planned as AF121) | 2822 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-DM" type | ||
| F1053DM | 2824 | Schimag, Mannheim | 5.4.1943 | 2.1945 | "MFP-DM" type | |||
| F1054DM (planned as AF123) | 2825 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-DM" type | ||
| F1055DM (planned as AF124) | 567 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-DM" type | ||
| F1057DM (planned as AF126) | 569 | Schimag, Mannheim | 5.4.1943 | --- | captured incomplete by USA 3.1945 | "MFP-DM" type | ||
| F1065DM | Beucheldt, Glogau | 5.4.1943 | 1.1945 | collision 12.3.1945 | "MFP-DM" type | |||
| F1066DM | Beucheldt, Glogau | 5.4.1943 | --- | captured incomplete by Soviet Union 2.1945, to Poland 1946 | "MFP-DM" type | |||
| F1073DM | Bayerische Schiffbau, Erlenbach | 10.6.1943 | 10.1944 | "MFP-DM" type | ||||
| F1153DM | CRDA, Monfalcone, Italy | 10.6.1943 | 12.1944 | sunk 2.1945 | "MFP-DM" type | |||
| F1209DM | 784 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1946 | sold incomplete | "MFP-DM" type | ||
| F1210DM | 785 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1945 | sold incomplete | "MFP-DM" type | ||
| F1211DM | 786 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1945 | sold incomplete | "MFP-DM" type | ||
| F1212DM | 787 | Bayerische Schiffbau, Erlenbach | 24.2.1944 | --- // 1945 | sold incomplete | "MFP-DM" type |
Technical data
| Displacement standard, t | MFP-A, B, C, C2, C2A: 155 MFP-D: 168 MFP-AM: 175 MFP-DM: 215 AFP-D1, 2: 353 |
|---|---|
| Displacement full, t | MFP-A, B, C2, C2A: 220 MFP-D: 239 MFP-AM: 240 MFP-DM: 256 AFP-A-C1: 400 AFP-A-C2: 416 AFP-A-C3: 410 AFP-D1, 2: 440 |
| Length, m | MFP-A, B, C, C2, C2A, AM, C2M: 47.0 MFP-D, DM: 49.8 |
| Breadth, m | MFP-A, B, C, C2, C2A: 6.53 MFP-D: 6.59 MFP-AM: 8.34 MFP-C2M: 8.40 MFP-DM: 8.59 AFP-A-C1: 6.55 AFP-A-C2: 6.56 AFP-A-C3: 6.60 AFP-D: 6.61 |
| Draught, m | MFP-A, B, C, C2, C2A: 1.45 deep load MFP-D, DM: 1.35 deep load MFP-AM, C2M: 1.48 deep load AFP: 1.71 |
| No of shafts | 3 |
| Machinery | F100A, 103A, 106A, 108A, 113A: 1 Deutz diesel + 2 BMW petrol engines MFP-A (others), AM, B, C, C2, C2A, C2M, D, DM: 3 Deutz diesels |
| Power, h. p. | F100A, 103A, 106A, 108A, 113A: 1300 (100 + 1200) MFP-A (others), AM, B, C, C2, C2A, C2M: 390 MFP-D, DM: 375 |
| Max speed, kts | F100A, 103A, 106A, 108A, 113A: 12.1 MFP-A (others), B, C, C2, C2A: 10.5 MFP-D: 10.3 MFP-AM, C2M: 10 MFP-DM: 8 AFP-A-C1, 3: 8.7 AFP-A-C2: 9 AFP-D: 8 |
| Fuel, t | F100A, 103A, 106A, 108A, 113A: diesel oil + petrol 2.6 others: diesel oil 4.1 |
| Endurance, nm(kts) | MFP-A-C: 1340(7) MFP-D: 1120(7) AFP-A-C1: 415(8.7) AFP-C2: 430(9) AFP-C3: 415(8.7) AFP-D: 372(8) |
| Armour, mm | AFP-A-C1: CT: 20, shields: 20, magazines: 100 concrete AFP-A-C2: CT: 20, shields: 20, magazines: 100 concrete AFP-A-C3: belt: 40, CT: 20, shields: 20, magazines: 100 concrete AFP-D1, 2: belt: 40 - 25, engine room: 25, CT: 20, shields: 20, magazines: 100 concrete |
| Armament | MFP-A: 1 x 1 - 75/32 SK C/34 or 1 x 1 - 75/42 PaK40 or 1 x 1 - 37/80 SK C/30, (1 - 2) x 1 - 20/65 C/38, can carry 50 mines instead of cargo MFP-B, C, C2, C2A: 1 x 1 - 75/32 SK C/34 or 1 x 1 - 75/42 PaK40 or 1 x 1 - 37/80 SK C/30, (1 - 2) x 1 - 20/65 C/38 MFP-D: 1 x 1 - 75/34 SK C/34 or 1 x 1 - 75/42 PaK40 or 1 x 1 - 88/42 SK C/30, (1 - 2) x 1 - 37/80 SK C/30, (1 - 6) - 20/65 C/38 or (1- 6) - 20/70 Oerlikon MFP-AM, C2M: 1 x 1 - 75/34 SK C/34 or 1 x 1 - 75/42 PaK40 or 1 x 1 - 37/80 SK C/30, (1 - 2) x 1 - 20/65 C/38, 52 mines or 8 landing craft MFP-DM: 1 x 1 - 75/34 SK C/34 or 1 x 1 - 75/42 PaK40 or 1 x 1 - 88/42 SK C/30, (1 - 2) x 1 - 37/80 SK C/30, (1 - 6) - 20/65 C/38 or (1- 6) - 20/70 Oerlikon, 54 mines or 10 landing craft AFP-A-C1: 2 x 1 - 88/42 SK C/35, 2 x 4 - 20/65 C/38 AFP-A-C2: 2 x 1 - 88/42 SK C/35, 1 x 1 - 37/80 SK C/30, 2 x 4 - 20/65 C/38, 1 x 1 - 15/84 AFP-A-C3: 2 x 1 - 88/42 SK C/35, 1 x 1 - 37/80 SK C/30, 2 x 4 - 20/65 C/38, 1 x 1 - 15/84, 1 DCR (4), 26 mines AFP-D: 2 x 1 - 88/42 SK C/35, 1 x 1 - 37/80 SK C/30, 2 x 4 - 20/65 C/38, 1 x 1 - 15/84, 1 DCR (4) |
| Military load | MFP-A, B, C, C2, C2A: 105 t (3 Pz.IV or 2 T-34 or 200 men) MFP-D: 140 t (3 Pz.IV or 2 Pz.VI or 200 men) |
| Complement | 17 - 21 AFP-A-C1: 48 AFP-A-C2, 3: 53 AFP-D: 65 |
Standard scale images
AFP of D type 1944
AFP of D type 1944 "MFP" type landing ships
F100A 1941
F197B 1942
MFP of D-type
MFP of DM-type
AFP of A-C1 type
AFP of A-C2 type
AFP of A-C3 type
AFP of D2 type
F400C 1942
AF87 1944
Graphics
AF83
F121A
AF19
Project history
These barges were built by various shipbuilders in Germany, allied and occupied countries and used on all theatres. Flat-bottom hull, cargo hold was covered by extended superstructure. Folding bow ramp had 5m length. A - C groups were differed by hold depth: 2.74m on A; 3.19m on B and 3.29m on C; on A1 and C2 groups barges specially for carrying of "Tiger" heavy tanks hold depth was increased to 3.4 and 3.6m respectively. D type, developed under section building method, had the simplified hull structure and little increased dimensions. All types had triple-shaft diesel machinery, except F100, 103, 106, 108 and 113 which had on centre shaft 100hp diesel, and on external shafts 600hp aircraft motors. Bridge and engine room were protected by armour (20mm on A - C types and 25mm on D type). In total 600 units of A - C types (F100-700), including 74 later cancelled, were ordered. 469 barges of D type (F801-1269) were ordered, some were completed after war as merchant vessels.
There was a number of special modifications: 3 hospital vessels, 4 tankers, 4 repair ships, 40 mine destruction vessels; F368 on Black sea was converted to submarine chaser UJ118. In a variant of shallow-draught minelayer (34 of AM type, 21 C2M and 66 DM) on a superstructure rails for 50-54 mines were mounted, thus on 2m the hull breadth was increased. 141 barge of various types were converted to gunships.
Gunbarges were converted from standard landing barges by installing of guns and arrangement of magazines in cargo hold. Thanks to strong armament and shallow draught they were extremely effective in inshore waters. Engine room and CT were protected by 20-25mm armour, magazines by 100mm. For barges of A - C types in the first variant the amount of works was minimum; in second variant fore end form was changed, CT was moved amidships. At barges of D type hull did not reconstructed, but superstructures were altered more thoroughly.
Gunbarges operated in the North European waters and on Black sea, received numbers with letters AF; on Mediterranean sea KF and on Danube AT; and in first case own numbering was conducted, at the remaining former numbers were stored.
Modernizations
Many craft were rearmed. Gunnery barge of A-C1 type include ex-A, B, C and C2 types (30 units). 4 barges of A-C2 type were converted to gunnery while building. 39 AF-C1-type gunships and MFP-A, B, C and C2-type barges were converted to type A-C3. D1, D2 and D3 types were ex-D-type barges.
Naval service
In operations 324 barges of A - C types and 128 of D type were lost. In operations 77 gunships were lost. Fate of many craft is unknown. Two units were transferred to Albania in 1946 and two to Yugoslavia (D203, 204).
