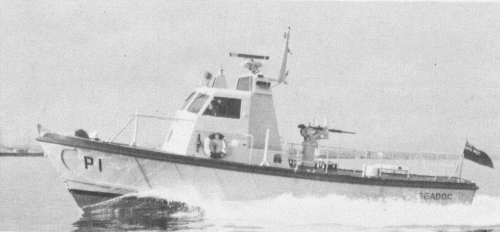

Sea Dog 1976

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P1 Sea Dog	Fairey Marine, Cowes, UK: P1	1976: P1	none	none	1994: P1

Technical data

Displacement standard, t
Displacement full, t	17
Length, m	14.8
Breadth, m	4.76
Draught, m	1.30
No of shafts	2
Machinery	2 General Motors 8V71TI diesels
Power, h. p.	850
Max speed, kts	24
Fuel, t	diesel oil
Endurance, nm(kts)	500(15)
Armament	1 x 1 - 20/70 Mk 4, 3 x 1 - 7.6/90
Electronic equipment	radar
Complement	6 + 10 boarding party

Graphics

Project history

Lance class.

Modernizations

None.

Naval service

No significant events.
