BOLONG KANTA patrol boat (1993)





Bolong Kanta 2009

Ships


Names Builders Commissioned Losses Transfers Discarding

P14 Bolong Kanta

Peterson, Sturgeon Bay, USA: P14

1993: P14

none

none

in service (2020): P14



Technical data


Displacement standard, t
Displacement full, t

24

Length, m

15.6

Breadth, m

4.50

Draught, m

1.30

No of shafts

2

Machinery

2 General Motors Detroit Diesel 6V92TA diesels

Power, h. p.1800
Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)500(20)
Armament

1 x 2 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipmentRaytheon R41X radar
Complement6


Graphics

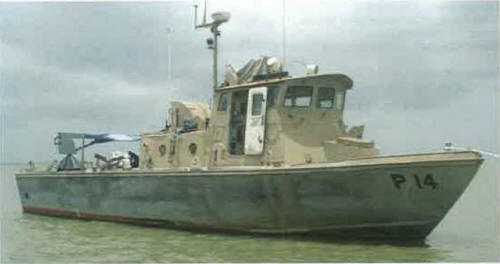

<i>Bolong Kanta </i>2009
Bolong Kanta 2009


BOLONG KANTA patrol boat (1993)



Project history

Peterson Swift Mk 4 class.

Modernizations

None.

Naval service

No significant events.
