PRÉSIDENT EL HADJ OMAR BONGO fast attack craft (missile) (1978)
Général Nazaire Boulingui 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
Président El Hadj Omar Bongo, 1985- Général Nazaire Boulingui Kounba, 1985- Général Nazaire Boulingui |
P10 |
CN de l'Estérel, Cannes, France |
12.1.1978 |
7.8.1978 |
in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 160 |
| Length, m | 42.0 |
| Breadth, m | 7.70 |
| Draught, m | 1.90 |
| No of shafts | 3 |
| Machinery | 3 MTU 20V672 TY90 diesels |
| Power, h. p. | 9450 |
| Max speed, kts | 38.5 |
| Fuel, t | diesel oil 28 |
| Endurance, nm(kts) | 1500(15) |
| Armament | 2 x 2 SS-12M SSM (4 SS-12M), 1 x 1 - 40/70 Breda-Bofors 564, 1 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Decca RM1226 radar |
| Complement | 23 |
Graphics

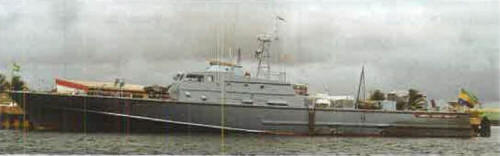

Général Nazaire Boulingui 2000
Project history
Triple-skinned mahogany-hulled boat.
Modernizations
1985: diesels were replaced by 3 SACM AGO195 12CSNR diesels (5400hp, 32kts).
early 2000s: SS-12M SSMs became inoperable
Naval service
Stricken in 1999 but reactivated in 2000.
