SIRÈNE submarines (1901-1902)

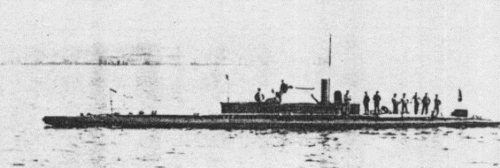

Triton 1902 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sirène Q005 Q3 Arsenal de Cherbourg 5.1900 4.5.1901 12.1901 stricken 11.1919
Triton Q006 Q4 Arsenal de Cherbourg 6.1900 13.7.1901 12.1901 stricken 11.1919
Espadon Q013 Q8 Arsenal de Cherbourg 1900 7.9.1901 6.1902 stricken 11.1919
Silure Q014 Q7 Arsenal de Cherbourg 1900 29.10.1901 6.1902 stricken 11.1919


Technical data


Displacement standard, t
Displacement normal, t157 / 213
Length, m

32.5

Breadth, m

3.90

Draught, m

2.50

No of shafts

1

Machinery

1 VTE, 1 boiler / 1 electric motor

Power, h. p.

250 / 100

Max speed, kts

9.8 / 5.8

Fuel, t

oil

Endurance, nm(kts)600(7) / 55(3.8)
Armament

4 - 450 TC

Complement13
Diving depth operational, m30


Standard scale images


<i>Sirène</i> 1906
Sirène 1906


Graphics


<i>Triton </i>1902 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Triton 1902 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Submersible boars of modified Narval type with double hull ordered on 20 May 1899 and 1 May 1900. Designed by Maxime Laubeuf. Initial cost was £24,700 each. They were built like torpedo-boats and submerged by the admission of water into the space between the skins. Machinery generally similar to Narval. These boats could dive in 6 minutes (Espadon) to 9 minutes (Triton).

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
