MAURICE CALLOT submarine (1921)

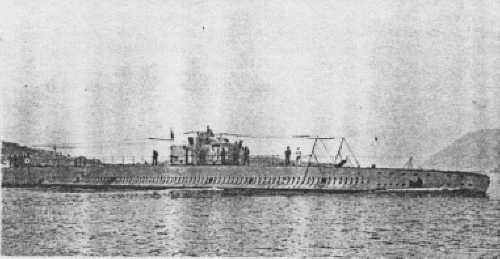

Maurice Callot 1921 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Maurice Callot NN1   F C de la Gironde, Bordeaux 5.1917 26.3.1921 1922 discarded 1936


Technical data


Displacement standard, t
Displacement normal, t

931 / 1298

Length, m

75.5

Breadth, m

6.70

Draught, m

3.50

No of shafts

2

Machinery

2 Schneider diesels / 2 electric motors

Power, h. p.

2900 / 1640

Max speed, kts

16.5 / 10.5

Fuel, t

diesel oil

Endurance, nm(kts)2800(11) / 118(5)
Armament

1 x 1 - 75/35 M1897, 6 - 450 TT (4 bow, 2 stern, 8), 27 mines

Complement48
Diving depth operational, m


Standard scale images


<i>Maurice Callot </i>1933
Maurice Callot 1933


Graphics


<i>Maurice Callot</i> 1921 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Maurice Callot 1921 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Double-hulled submarine of Schneider-Laubeuf type. Mines were stored in the superstructure and were laid by Laubeuf system.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
