CHARLES BRUN experimental submarine (1913)





Charles Brun 1911 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Charles Brun Q089   Arsenal de Toulon 1907 14.9.1910 10/1913 condemned 6.1920


Technical data


Displacement standard, t
Displacement normal, t356 / 450
Length, m

44.0

Breadth, m

4.00

Draught, m

3.30

No of shafts

2

Machinery

2 VTE, 4 du Temple boilers

Power, h. p.

1300

Max speed, kts

13.5 / 7.2

Fuel, t

oil

Endurance, nm(kts)
Armament

2 - 450 TT (bow), 4 - 450 TC (2 Drzewiecki drop-collars abeam, 2 ext cradles aft)

Complement24
Diving depth operational, m40


Standard scale images


<i>Charles Brun </i>1913
Charles Brun 1913


Graphics

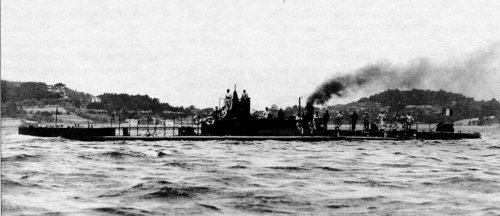

<i>Charles Brun </i>1911 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Charles Brun 1911 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Experimental boat ordered on 31 December 1906 which never officially entered service. Trials of her experimental propulsion system were conducted between October 1910 and October 1913.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
