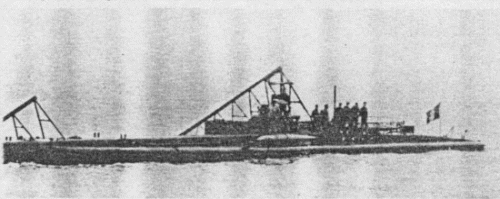

Aigrette 1908 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Aigrette	Q038		Arsenal de Toulon	1903	23.1.1904	1905	stricken 11.1919
Cigogne	Q039		Arsenal de Toulon	1903	11.11.1904	1905	stricken 11.1919

Technical data

Displacement standard, t
Displacement normal, t	178 / 253
Length, m	35.9
Breadth, m	4.04
Draught, m	2.63
No of shafts	1
Machinery	1 diesel / 1 electric motor
Power, h. p.	150 / 130
Max speed, kts	9.3 / 6.2
Fuel, t	diesel oil
Endurance, nm(kts)	1300(8) / 65(3.8)
Armament	4 - 450 TC (2 Drzewiecki, 2 ext)
Complement	14
Diving depth operational, m	30

Standard scale images

Graphics

Project history

Twin-hull submersibles, designed by Laubeuf. They were essentially experimental boats and were based on the Triton class. Aigrette's diving time was 4 minutes.

Eleven other boats of Aigrette class were planned to be built in Toulon (Eider, Macreuse, Crèbe, Cygne, Marabout and Héron) and in Cherbourg (Pluvier, Pingouin, Pélican, Plongeon and Vanneau), but were cancelled in September 1902.

Modernizations

None.

Naval service

No significant events.
