L9092 landing craft (2013)
L9092 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm. | Fate |
|---|---|---|---|---|---|---|---|
| L9092 | SOCARENAM, St-Malo and Bologne-sur-Mer | 18.4.2013 | in service (2019) | ||||
| L9093 | SOCARENAM, St-Malo and Bologne-sur-Mer | 18.4.2013 | in service (2019) | ||||
| L9094 | SOCARENAM, St-Malo and Bologne-sur-Mer | 18.4.2013 | in service (2019) | ||||
| L9095 | SOCARENAM, St-Malo and Bologne-sur-Mer | 18.4.2013 | in service (2019) |
Technical data
| Displacement standard, t | 200 |
|---|---|
| Displacement full, t | 300 |
| Length, m | 30.0 |
| Breadth, m | 12.8 |
| Draught, m | 0.60 light 2.50 loaded |
| No of shafts | 4 waterjets |
| Machinery | 4 MTU 12V2000M93 diesels |
| Power, h. p. | 6800 |
| Max speed, kts | 25 light 18 loaded |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(15) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Military load | 100t cargo or 2 tanks |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

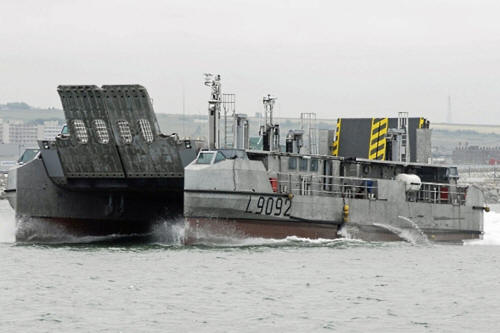

L9092 2013
Project history
EDA-R = Engins de Débarquement Amphibie Rapides. Catamaran roll-on / roll-off landing craft for use with the Mistral class. Aluminum construction; able to transport up to 100 tons, including two main battle tanks or 26 troops. Fitted with bow and stern ramps for offloading cargo and an adjustable pontoon deck that can be raised for transit or lowered for beaching.
Modernizations
None.
Naval service
No significant events.
