CH41 submarine chasers (1939 - 1943)





Ch42 1942

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ch41, 1940- Audierne Q041   Ch de Normandie, Fécamp 1938 1.5.1939 1940 captured by UK 3.7.1940, FNFL 1940, BU 6.1952
Ch42, 1940- Larmor Q042   Ch de Normandie, Fécamp 1938 18.9.1939 1940 captured by UK 3.7.1940, FNFL 1940, BU 1949
Ch43, 1940- Lavandou Q043   Ch de Normandie, Fécamp 1938 23.3.1940 1940 captured by UK 3.7.1940, FNFL 1940, BU 1.1950
Ch44     Ch de Normandie, Fécamp 1938 10.6.1940 1.1942 // --- completed as German RA1
Ch45     Ch de Normandie, Fécamp 1938 1941 3.1942 // --- completed as German RA2
Ch46     Ch de Normandie, Fécamp 1938 24.10.1942 8.1943 // --- completed as German RA6
Ch47     Ch de Normandie, Fécamp 1938 1943 9.1943 // --- completed as German RA7
Ch48     Ch de Normandie, Fécamp 1938 8.7.1943 10.1943 // --- completed as German RA8


Technical data


Displacement standard, t

126

Displacement full, t

160

Length, m

37.4

Breadth, m

5.53

Draught, m

2.40

No of shafts

2

Machinery

2 MAN diesels

Power, h. p.

1130

Max speed, kts

15.5

Fuel, t

diesel oil 6.5

Endurance, nm(kts)1100(13)
Armament

1 x 1 - 75/35 M1897, 2 x 1 - 8.80, 4 DCT, 1 DCR (10)

Complement

23



Standard scale images


German <i>RA3</i> 1943
German RA3 1943


Graphics

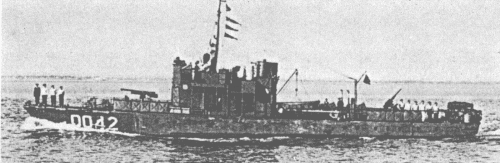

<i>Ch42</i> 1942
Ch42 1942


Project history

Wooden hull. Ch44, 45 and 46 were completed by Germans as RA4, 3 and 5 respectively. Their fate is unknown. Ch47 and 48 were broken up by Germans on slipways.

Modernizations

1942, FNFL ships: + 1 x 1 - 40/39 QF Mk VIII.

Naval service

Ch41, 42 and 43 were captured by British 3.7.1940 and later transferred to FNFL.
