ALBATROS patrol vessel (1967 / 1984)

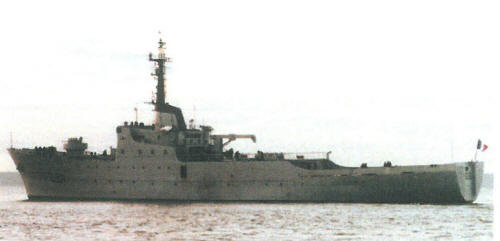

Albatros 2002 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Albatros (ex-Névé) | P681 | 184 | CN Le Trait, Le Havre | 1967 // 23.3.1984 | stricken 7.2015 |
Technical data
| Displacement standard, t | 1940 |
|---|---|
| Displacement full, t | 2800 |
| Length, m | 75.0 pp 85.0 oa |
| Breadth, m | 13.5 |
| Draught, m | 6.00 |
| No of shafts | 1 |
| Machinery | 2 SACM-AGO V12 UD33 diesel-generators, 2 electric motors / 2 electric motors for cruisisng |
| Power, h. p. | 2310 / 500 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 12000(15) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
| Military load | 1 launch, 1 small landing craft, 200 t of cargo, 15 passengers |
| Electronic equipment | 2 DRBN-32 radars, ARUR ECM suite |
| Complement | 47 |
Standard scale images
Albatros 2000
Graphics
Albatros 2002 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Former stern-haul trawler purchased in April 1983 from fishery company for use in Antarctic fisheries patrol duties off Kerguelen.
Modernizations
1991: re-engined with 2 UD33V12 S4 diesel-generators
2002: - 2x DRBN-32 radars, ARUR ECM suite; + 2x DRBN-38A radars, 2x ARBR-16 ECM suites
Naval service
No significant events.
