PIERRE DURAND destroyer (1916 / 1920)





sister-ship V67 1917 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pierre Durand (ex-V79)   17 Vulcan, Hamburg, Germany 1914 18.4.1916 7.1916 // 6.1920 stricken 2.1933


Technical data


Displacement normal, t924
Displacement full, t1188
Length, m

81.0 wl 82.0 oa

Breadth, m

8.32

Draught, m

3.40 normal 3.90 deep load

No of shafts

2

Machinery

2 AEG-Vulcan steam turbines, 3 Marine boilers

Power, h. p.

23500

Max speed, kts

34

Fuel, t

oil 306

Endurance, nm(kts)2050(17)
Armament

3 x 1 - 105/42 Tbts L/45 C/16, 2 x 2 - 500 TT, 2 x 1 - 500 TT (8), 24 mines

Complement85


Standard scale images


<i>Pierre Durand</i> 1920
Pierre Durand 1920


Graphics

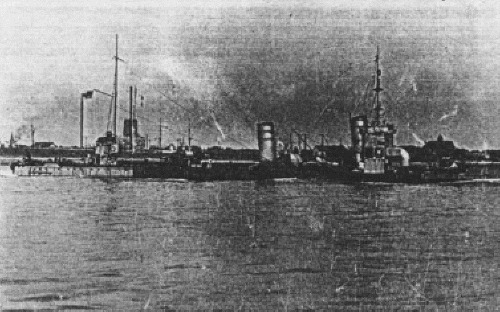

sister-ship <i>V67</i> 1917 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
sister-ship V67 1917 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Ex-German destroyer of V67 class, received by reparations.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
