SEUDRE patrol craft (2016-2017)





Seudre 2016

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Seudre DF32   SOCARENAM, St-Malo // Boulogne-sur-Mer     7.2016 in service (2019)
Levante DF33   SOCARENAM, St-Malo // Boulogne-sur-Mer     2017 in service (2019)


Technical data


Displacement standard, t
Displacement full, t
Length, m

32.4

Breadth, m

7.46

Draught, m

2.00

No of shafts

2

Machinery

2 Caterpillar C32 diesels

Power, h. p.

3265

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

720(18)

Armament

2 x 1 - 7.5/90

Electronic equipment

2x Furuno radars, FLIR IR e/o detector

Complement10 + 2 passengers

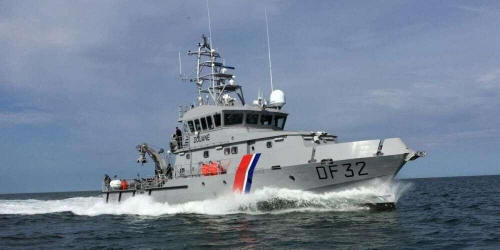

Graphics


<i>Seudre </i>2016
Seudre 2016


Project history

Customs craft. Aluminium construction.

Modernizations

None.

Naval service

No significant events.
