LIBECCIU patrol boats (2017-2018)







Ships


Name No Yard No Builder Laid down Launched Comp Fate

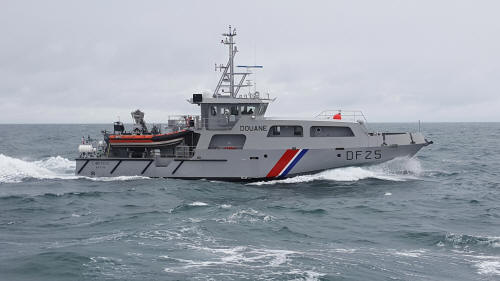

Libecciu DF25   SOCARENAM, St-Malo // Boulogne-sur-Mer     21.9.2017 in service (2019)
Sers DF26   SOCARENAM, St-Malo // Boulogne-sur-Mer     12.2017 in service (2019)
Vent d'Amont DF27   SOCARENAM, St-Malo // Boulogne-sur-Mer     5.2018 in service (2019)
Mistral DF28   SOCARENAM, St-Malo // Boulogne-sur-Mer     12.2018 in service (2019)


Technical data


Displacement standard, t100
Displacement full, t
Length, m

28.1

Breadth, m

7.00

Draught, m

1.35

No of shafts

2

Machinery

2 Caterpillar C32 diesels

Power, h. p.

1625

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

750(18)

Armament

2 x 1 - 7.6/90

Electronic equipment

2x Furuno radars, FLIR IR e/o detector

Complement11 + 2 passengers


Graphics





Project history

Small patrol boat of new class. Custom. Aluminium construction, will carry one 6.5m Zodiac RIB.

Modernizations

None.

Naval service

No significant events.
