JACQUES OUDART FOURMENTIN patrol vessels (2008)

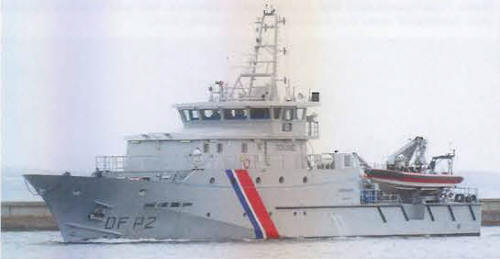

Kermorvan 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Jacques Oudart Fourmentin | DF P1 | SOCARENAM, Boulogne-sur-Mer | 23.2.2007 | 1.2008 | in service (2019) | ||
| Kermorvan (ex-Tévennec) | DF P2 | SOCARENAM, Boulogne-sur-Mer | 2007 | 9.6.2008 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 412 |
| Length, m | 43.3 |
| Breadth, m | 9.00 |
| Draught, m | 3.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516B diesels |
| Power, h. p. | 5070 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(12) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.5/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 16 + 6 passengers |
Standard scale images
Jacques Oudart Fourmentin 2010
Graphics
Kermorvan 2008
Project history
Customs cruiser. Aluminium hull and superstructure.Carries two Hurricane H920-10 RIBs.
Modernizations
None.
Naval service
No significant events.
