IRIS patrol craft (1989/1996)
Iris 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Iris | PM40 (ex-P696) | C N de l'Estérel, Cannes | 21.12.1988 | 1989 // 31.12.1996 | in service (2019) |
Technical data
| Displacement standard, t | 210 |
|---|---|
| Displacement full, t | 230 |
| Length, m | 45.8 wl 47.0 oa |
| Breadth, m | 8.50 |
| Draught, m | 2.25 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB83 diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 15 |
Graphics

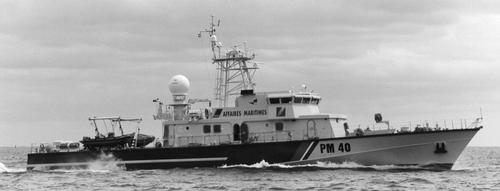

Iris 2001
Project history
Built for Thales as a sales demonstrator for weapons systems. Taken over for the French Navy, which operated her from 1990 to 1993, when she was placed in reserve until acquired by the Affaires Maritimes in 1996. Medical facilities and two RIB inspection launches have been added. Has Vosper fin stabilizers. Propulsion plant is highly automated. Maritime Police.
Modernizations
None.
Naval service
No significant events.
