ATHOS patrol boats (1980-1981/1995)
Athos 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Athos | A712, 2015- P724 | C N de l'Esterel, Cannes | 1978 | 20.11.1979 | 14.3.1980 // 8.1995 | in service (2019) | |
| Aramis | A713, 2015- P726 | C N de l'Esterel, Cannes | 1979 | 9.9.1980 | 29.1.1981 // 8.1995 | in service (2019) |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t | 108 |
| Length, m | 29.8 pp 32.1 oa |
| Breadth, m | 6.50 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 SACM-Wärtsilä UD33 V12M5 diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | A712: Racal-Decca radar A713: Furuno radar |
| Complement | 13 |
Graphics

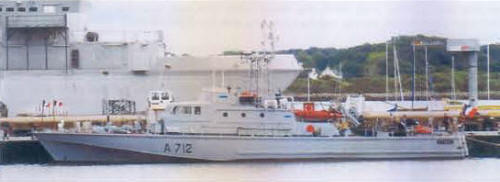

Athos 2008
Project history
Built as range safety craft for Missile Trials Centre of des Landes, reclassified as patrol craft in August 1995 and transferred by Gendarmerie to Navy in 2015.
Modernizations
2002, both: - 1 x 1 - 20/70; + 1 x 1 - 12.7/90
Naval service
No significant events.
