Saukko Many thanks to Wolfgang Stoehr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Saukko		241	Hietalahti, Laatokka	1928	2.7.1930	12.1930	stricken 1947

Technical data

Displacement standard, t	114
Displacement normal, t	130 / 140
Length, m	32.4
Breadth, m	4.10
Draught, m	2.90
No of shafts	1
Machinery	1 Krupp-Germania diesel / 1 electric motor
Power, h. p.	170 / 120
Max speed, kts	7 / 5.7
Fuel, t	diesel oil
Endurance, nm(kts)	375(8) / 45(4)
Armament	1 x 1 - 12.7/62, 2 - 450 TT (bow, 2), 9 mines
Complement	15
Diving depth operational, m	75

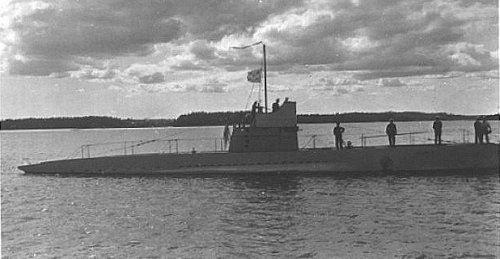

Standard scale images

Graphics

Project history

Saukko became unique submarine in the world projected for service on lake, intended for actions on Ladoga. Under Tartu peace treaty of 1920 displacement of any combat ship on Ladoga should not exceed 100t, therefore according to the technical design displacement of submarine could make no more than 99t. The design, as well as in a case with remaining Finnish submarines, was prepared by German engineers. For convenience of railway transportation hull of submarine was fulfilled disassembled on two parts.

Modernizations

mid-1930s: diesel was replaced by new one (200hp, 7kts), mine stowage was decreased to 6.

Naval service

According to Paris treaty in 1947 Saukko was stricken and broken up in 1952.
