Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
VMV1, 2	Abeking & Rasmussen, Lemwerder, Germany: VMV1, 2	6/1930: VMV1, 2	none	none	1951: VMV1, 2

Technical data

Displacement standard, t	?
Displacement full, t	30
Length, m	23.5
Breadth, m	4.20
Draught, m	1.00
No of shafts	2
Machinery	2 Maybach petrol engines / 1 Maybach cruising petrol engine
Power, h. p.	1120 / 100
Max speed, kts	25
Fuel, t	petrol
Endurance, nm(kts)
Armament	1 x 1 - 20/60 Madsen
Complement	8

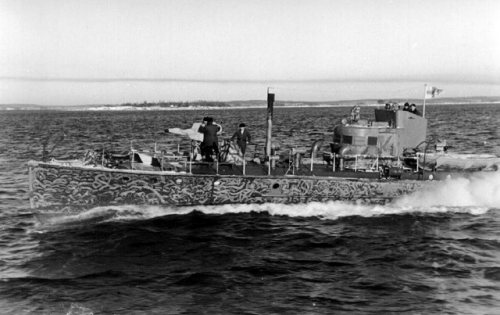

Graphics

Project history

Built in Germany, wooden-hulled. Boats were built for coast guard and submitted to Ministry of Internal Affairs. Since beginning of war they were commissioned by Navy and armed (earlier they had only light MGs).

Modernizations

None.

Naval service

No significant events.
