MTV4 SYÖKSY motor torpedo boats (1928-1929)
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MTV4, 1930s- Syöksy MTV5, 1930s- Nuoli MTV6, 1930s- Vinha MTV7, 1930s- Raju |
Thornycroft, Woolston, UK: MTV4, 5 Porvoo: MTV6 Aabo: MTV7 |
1928: MTV4, 5 1929: MTV6, 7 |
Raju (16.5.1943) |
none |
1942: Nuoli 1944: Syöksy 1945: Vinha |
Technical data
| Displacement standard, t | 12 |
|---|---|
| Displacement full, t |
|
| Length, m | 16.8 |
| Breadth, m | 3.40 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Thornycroft Y12 petrol engines / 1 Thornycroft RA4 petrol engine for cruising |
| Power, h. p. | 750 / 25 |
| Max speed, kts | 40 |
| Fuel, t | petrol 1700 l |
| Endurance, nm(kts) | 200(6) |
| Armament | 1 x 1 - 7.6/94, 2 - 450 TT |
| Complement | 7 |
Standard scale images

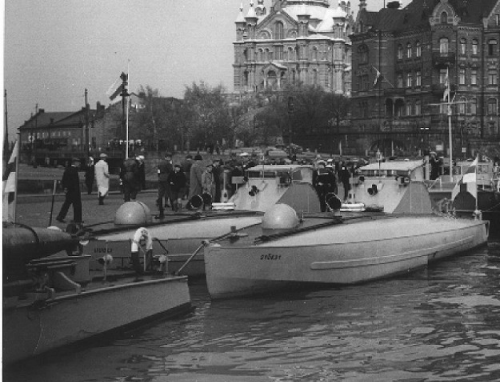

MTV4 1928
Graphics
Project history
Built in Britain and Finland, concerned to 55-ft type. Wooden-hulled.
Modernizations
1943, all survived: + 1 x 1 - 20/60 Madsen, 3 mines.
1944, Vinha: - 2 - 450 TT
Naval service
No significant events.
