FIJI
COASTAL FORCES
VAI patrol boats (1973-1977/1991)

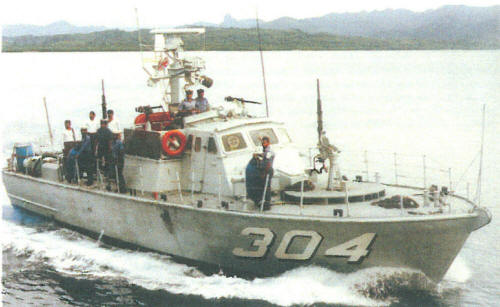

Saqa 1995
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
301 Vai 302 Ogo 303 Saku 304 Saqa |
Israeli Aircraft Industries, Be'er Sheva, Israel: 301-304 |
1973-1977 // 1991: 301-304 |
none |
none |
2008: 301-304 |
Technical data
| Displacement standard, t | 25 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 19.8 |
| Breadth, m | 5.80 |
| Draught, m | 0.80 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 960 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(17) |
| Armament | 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca Super 101 Mk 3 radar |
| Complement | 6 |
Standard scale images
Vai 1995
Graphics
Saqa 1995
Project history
Former Israeli Navy Dabur class boats.
Modernizations
None.
Naval service
No significant events.
