P101 patrol boats (1993-1994)
P101 2014
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P101-104 |
RAMTA-IAI, Be'er Sheva, Israel: P101-104 |
1993: P101, 102 1994: P103, 104 |
none |
none |
in service (2019): P101-104 |
Technical data
| Displacement standard, t | 48 |
|---|---|
| Displacement full, t | 54 |
| Length, m | 21.6 |
| Breadth, m | 5.50 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | 3 General Motors Detroit Diesel 16V92TA diesels |
| Power, h. p. | 2070 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(17) |
| Armament | 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79 |
| Electronic equipment | Raytheon radar |
| Complement | 10 |
Graphics

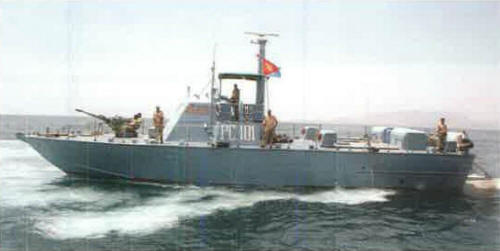

P101 2014
Project history
Israeli 'Super Dvora Mk II' design. Original order included six boats but only 4 were delivered.
Modernizations
early 2010s, all: - 2 x 1 - 20/70; + 1 x 2 - 23/87 ZSU-23-2
