P084 patrol boats (2000-2001)
P086 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P084-088 |
Harena Boat Yard, Assab: P084-088 |
2000-2001: P084-088 |
none |
none |
in service (2019): P084-088 |
Technical data
| Displacement standard, t | 26 |
|---|---|
| Displacement full, t | 36 |
| Length, m | 17.1 |
| Breadth, m | 5.20 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V183 TE92 diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 680(30) |
| Armament | 1 x 2 - 14.5/93 |
| Electronic equipment | Raytheon radar |
| Complement | 8 |
Graphics

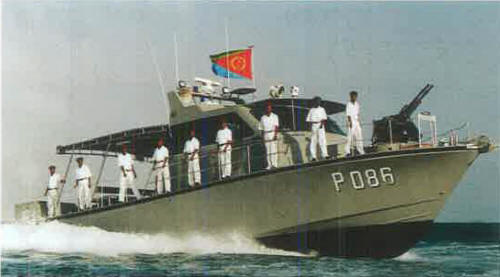

P086 2000
Project history
Australian design. GRP hull.
Modernizations
None.
