LAINE gunboat (1913 / 1918)
Layne
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Laine (ex-Lauterbach, ex-Спутник [Sputnik]) | Crichton, St. Petersburg // Kronshtadt Port Wks, Russia | 1912 | 24.7.1912 | 1913 // 11.1918 | captured by USSR 6.8.1940 (Лайне [Layne]) |
Technical data
| Displacement normal, t | 211 |
|---|---|
| Displacement full, t | |
| Length, m | 37.0 |
| Breadth, m | 6.10 |
| Draught, m | 1.80 |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 boiler |
| Power, h. p. | 500 |
| Max speed, kts | 12 |
| Fuel, t | coal 80 |
| Endurance, nm(kts) | 950(8) |
| Armament | 2 x 1 - 76/27 Lender obr. 1914-15 |
| Complement | 20 |
Standard scale images

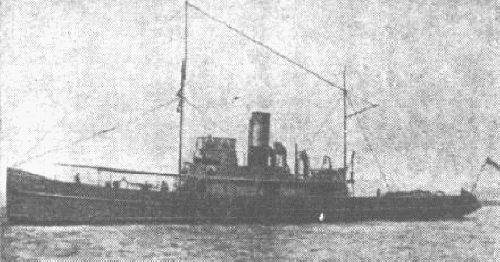

Laine 1918
Graphics
Layne
Project history
Former escort of submarines.
Sputnik 7.4.1918 was captured at Abo (Turku) by German AMC Möwe and converted to tender Lauterbach. 13.11.1918 she was transferred to Estonia as Laine: the first ship of Estonian Navy, used as patrol, gunboat and submarine depot ship.
Modernizations
none
Naval service
With occurrence of Estonia into the USSR Laine 6.8.1940 entered Baltic Fleet as guard ship Layne.
