GENERAL MANUEL JOSÉ ARCE patrol vessel (1943/2002)

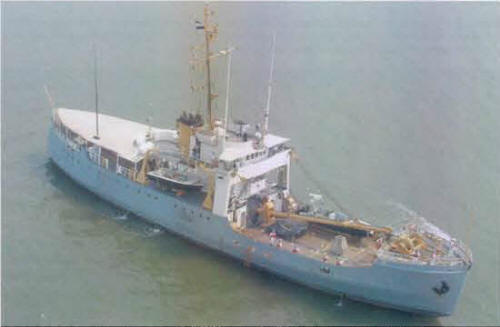

General Manuel José Arce 2003

Ships


Name No Yard No Builder Laid down Launched Comm Fate
General Manuel José Arce (ex-Madrona) BL01   Zenith Dredge, Duluth, USA 6.7.1942 11.11.1942 30.5.1943 // 4.12.2002 discarded 2012


Technical data


Displacement standard, t

700

Displacement full, t

1038

Length, m

51.8 pp 54.9 oa

Breadth, m

11.3

Draught, m

4.00

No of shafts

1

Machinery

2 diesel-generators, 1 electric motor

Power, h. p.

1200

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)14000(7)
Armament

2 x 1 - 12.7/90

Electronic equipment

SPS-73 radar

Complement

53



Standard scale images


<i>General Manuel José Arce </i>2010
General Manuel José Arce 2010


Graphics


<i>General Manuel José Arce </i>2003
General Manuel José Arce 2003


Project history

Former USCG Balsam class navigation aids tender. Served as flagship for the navy and offshore patrol vessel.

Modernizations

None.

Naval service

No significant events.
