SAMUEL BECKETT patrol ships (2014-2019)
Samuel Beckett 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
Samuel Beckett |
P61 |
Babcock Marine, Appledore, UK |
18.5.2012 | 3.11.2013 |
28.4.2014 |
in service (2019) |
|
| James Joyce | P62 | Babcock Marine, Appledore, UK |
4.11.2013 | 23.11.2014 | 1.9.2015 | in service (2019) | |
| William Butler Yeats | P63 | Babcock Marine, Appledore, UK |
26.11.2014 | 10.3.2016 | 17.10.2016 | in service (2019) | |
| George Bernard Shaw | P64 | Babcock Marine, Appledore, UK |
28.2.2017 | 2.3.2018 | 30.4.2019 | in service (2019) |
Technical data
| Displacement standard, t | 1930 |
|---|---|
| Displacement full, t | 2225 |
| Length, m | 89.5 |
| Breadth, m | 14.0 |
| Draught, m | 3.80 |
| No of shafts | 2 |
| Machinery | 2 Wärstilä 16V26 diesels |
| Power, h. p. | 13600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil 251 |
| Endurance, nm(kts) | 6000(15) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Mk 20 Rh202, 2 x 1 - 12.7/90, 4 x 1 - 7.6/90 |
| Electronic equipment | 2x Sharp Eye radars, Sea Eagle e/o system |
| Complement | 44 + 10 passengers |
Graphics

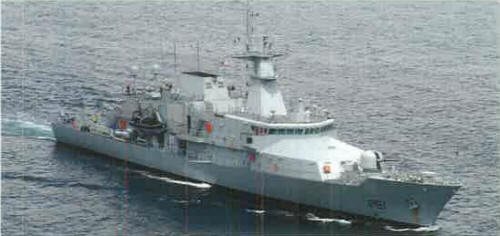

Samuel Beckett 2014
Project history
Enlarged Róisín. Carry 3 8m MST inspection launches.
Modernizations
None.
Naval service
No significant events.
