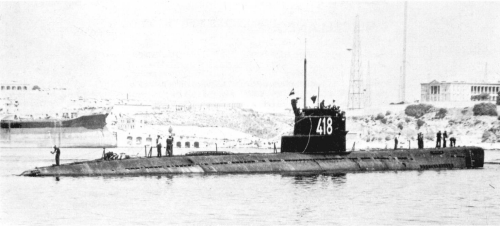

No 418 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
S1 (ex-С-175 [S-175])			112 Zhdanov Yd, Gorkiy, USSR	31.10.1953	16.3.1954	10.10.1954 // 6.1957	to USSR 8.1966 (С-42 [S-42])
S2 (ex-С-182 [S-182])			112 Zhdanov Yd, Gorkiy, USSR	30.1.1954	29.5.1954	8.12.1954 // 6.1957	to USSR 7.1968 (С-406 [S-406])
S3 (ex-С-180 [S-180])			112 Zhdanov Yd, Gorkiy, USSR	31.12.1953	15.5.1954	9.12.1954 // 4.1958	stricken 1978?
S4 (ex-С-193 [S-193])			112 Zhdanov Yd, Gorkiy, USSR	31.3.1954	14.8.1954	28.4.1955 // 4.1958	stricken 1982?
S5 (ex-С-184 [S-184])			112 Zhdanov Yd, Gorkiy, USSR	23.2.1954	19.6.1954	18.12.1954 // 4.1958	to USSR 8.1967 (С-15 [S-15])
S6 (ex-С-228 [S-228])			444 Marti Yd, Nikolayev, USSR	20.9.1954	25.6.1955	16.9.1955 // 1.1962	stricken 1982?
S7 (ex-С-226 [S-226])			444 Marti Yd, Nikolayev, USSR	4.6.1954	16.3.1955	30.7.1955 // 12.1965	stricken 1985?
S8 (ex-С-227 [S-227])			444 Marti Yd, Nikolayev, USSR	5.8.1954	8.10.1954	31.8.1955 // 12.1965	stricken 1988?
415 (ex-С-280 [S-280])	415		112 Zhdanov Yd, Gorkiy, USSR	30.12.1954	2.6.1955	22.9.1955 // 2.1972	stricken 1995?
418 (ex-С-380 [S-380])	418		444 Nosenko Yd, Nikolayev, USSR	19.6.1956	29.12.1956	30.6.1957 // 1971	stricken 1995?

Technical data

Displacement standard, t
Displacement normal, t	1045 / 1342
Length, m	76.0
Breadth, m	6.30
Draught, m	4.55
No of shafts	2
Machinery	2 37D diesels / 2 PG-101 electric motors
Power, h. p.	4000 / 2700
Max speed, kts	18.3 / 13.1
Fuel, t	diesel oil
Endurance, nm(kts)	8580(10) / 353(2)
Armament	6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)
Electronic equipment	Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite
Complement	55
Diving depth operational, m	170

Standard scale images

Graphics

Project history

Former Soviet Project 613 medium submarines.

Modernizations

None.

Naval service

In 1981 six were in service with pennant nos 415, 418, 421, 432, 455 and 477. In 1988 three with pennants 810, 816 and 819. In 1990 two (810 and 816).
