No 910 medium landing ships (1973)





No 303 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  910, 1982- 301   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)
  912, 1982- 303   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)
  915, 1982- 305   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate   910, 1982- 301   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)   912, 1982- 303   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)   915, 1982- 305   Stocznia Północna, Gdańsk, Poland     1974 in service (2019)

Technical data


Displacement standard, t

772

Displacement normal, t

820

Length, m

73.0

Breadth, m

8.62

Draught, m

1.98

No of shafts

2

Machinery

2 40D diesels

Power, h. p.

4400

Max speed, kts

18.5

Fuel, t

diesel oil

Endurance, nm(kts)

1800(16)

Armament

1 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL

Military load

4 heavy or 5 medium tanks or 9 trucks

Electronic equipment

Donets, MR-104 Rys' radars

Complement

42



Standard scale images


<i>No 301 </i>2000
No 301 2000


Graphics


<i>No 303 </i>2000
No 303 2000

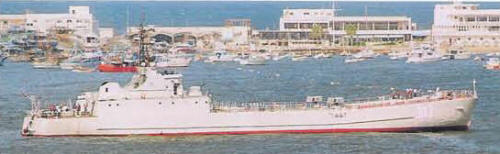

No 910 medium landing ships (1973)

Project history

Soviet Project 770MA.

Modernizations

2000s, all: - Donets radar; + Decca radar

Naval service

No significant events.
