TIMSAH 17 patrol boats (1999)
Timsah 17 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 17 تمسه [Timsah 17] | 17 | Timsah SY, Alexandria | 1999 | in service (2019) | |||
| 18 تمسه [Timsah 18] | 18 | Timsah SY, Alexandria | 1999 | in service (2019) | |||
| 19 تمسه [Timsah 19] | 19 | Timsah SY, Alexandria | 1999 | in service (2019) | |||
| 20 تمسه [Timsah 20] | 20 | Timsah SY, Alexandria | 1999 | in service (2019) | |||
| 21 تمسه [Timsah 21] | 21 | Timsah SY, Alexandria | 1999 | in service (2019) | |||
| 22 تمسه [Timsah 22] | 22 | Timsah SY, Alexandria | 1999 | in service (2019) |
Technical data
| Displacement standard, t | 99 |
|---|---|
| Displacement full, t | 106 |
| Length, m | 28.9 pp 31.0 oa |
| Breadth, m | 5.66 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU12V331 TC92 diesels |
| Power, h. p. | 2660 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil 10 |
| Endurance, nm(kts) | 600(25) |
| Armament | 2 x 1 - 20/90 GAM-B01 or 2 x 1 - 14.5/89 |
| Electronic equipment | Decca radar |
| Complement | 13 |
Graphics

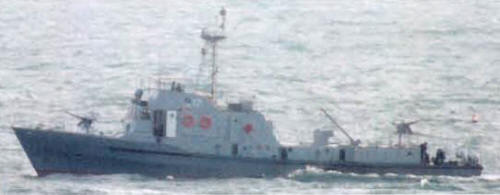

Timsah 17 2002
Project history
Domestic design Timsah with new diesels and waterline exhausts vice stack.
Modernizations
None.
Naval service
No significant events.
