No335 patrol boats (1985-1986)
342 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 335 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 336 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 337 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 338 | Osman, Ismailia | 16.4.1985 | in service (2019) | ||||
| 339 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 340 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 341 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 342 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 343 | Osman, Ismailia | 1986 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 102 |
| Length, m | 28.4 |
| Breadth, m | 5.66 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC92 diesels |
| Power, h. p. | 2660 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil 12 |
| Endurance, nm(kts) | 1000(12) |
| Armament | 335-337: 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 338-343: 1 x 2 - 25/80 2M-3M, 1 x 1 - 14.5/89 |
| Electronic equipment | Furuno radar |
| Complement | 14 |
Graphics

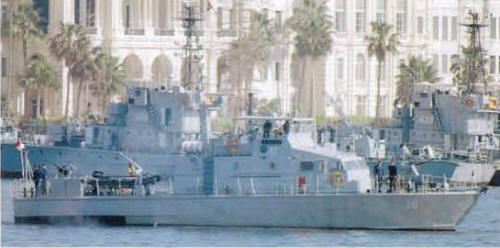

342 2006
Project history
Swiftships Commercial Cruiser design.
Modernizations
1990s, 335-337: - 1 x 1 - 12.7/90; + 1 x 1 - 20/70 Mk 10
1990s, 338-343: - 1 x 2 - 25/80; + 1 x 2 - 23/81 type 61M
Naval service
No significant events.
