NEYBA utility landing craft (1978/2006)
Neyba 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Neyba (ex-Commando) | LDM4, later- LD31 | Marinette Marine, USA | 1978 // 2006 | in service (2019) |
Technical data
| Displacement standard, t | 170 |
|---|---|
| Displacement full, t | 437 |
| Length, m | 41.1 oa |
| Breadth, m | 9.07 |
| Draught, m | 2.08 |
| No of shafts | 2 Kort-nozzle |
| Machinery | 4 General Motors 6-71 diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil 13 |
| Endurance, nm(kts) | 1200(11) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 4 medium or 3 heavy tanks or 180 t of cargo or 400 troops |
| Electronic equipment | Furuno radar |
| Complement | 10 |
Standard scale images

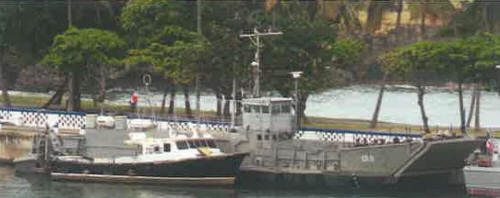

Neyba 2010
Graphics
Neyba 2012
Project history Former LCU1646 class craft of the US Army. Modernizations
Former LCU1646 class craft of the US Army. Modernizations: None.
Naval service
No significant events.
