TRUJILLO destroyer (1936/1948)

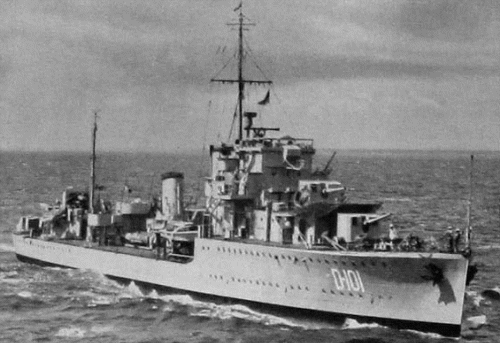

Trujillo 1951
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Trujillo (ex-Hotspur), 1962- Duarte | D101, 1968- D401 | Scotts, Greenock, UK | 2/1935 | 23.3.1936 | 12/1936 // 11.1948 | discarded 1972 |
Technical data
| Displacement standard, t | 1370 |
|---|---|
| Displacement full, t | 2095 |
| Length, m | 95.1 pp 98.5 oa |
| Breadth, m | 10.1 |
| Draught, m | 4.06 |
| No of shafts | 2 |
| Machinery | 2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers |
| Power, h. p. | 34000 |
| Max speed, kts | 36 |
| Fuel, t | 443 - 461 oil |
| Endurance, nm(kts) | 5530(15) |
| Armament | 3 x 1 - 120/45 CP Mk XVIII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 4 - 533 TT, 4 DCT, 1 DCR (125 DC) |
| Electronic equipment | type 271, type 291 radars, type 144 sonar |
| Complement | 145 |
Standard scale images
Trujillo 1955
Graphics
Trujillo 1951
Project history Former British 'H' class destroyer. Modernizations
Former British 'H' class destroyer. Modernizations: None.
Naval service
No significant events.
