BETELGEUSE large patrol craft (1966)

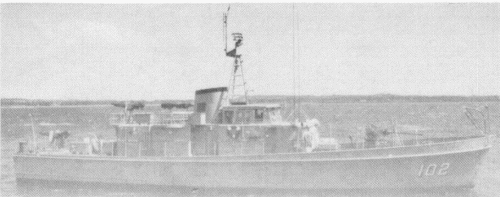

Betelgeuse 1972

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Betelgeuse GC102   Peterson Builders, Sturgeon Bay, USA   14.5.1965 1.1966 stricken 2006


Technical data


Displacement standard, t

130

Displacement full, t

146

Length, m

30.2 pp 30.8 oa

Breadth, m

6.40

Draught, m

1.85

No of shafts

2

Machinery

8 General Motors 6-71 diesels

Power, h. p.

2200

Max speed, kts

21

Fuel, t

diesel oil

Endurance, nm(kts)

1500(10)

Armament

1 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipmentradar
Complement

20



Standard scale images


<i>Betelgeuse </i>1975
Betelgeuse 1975


Graphics


<i>Betelgeuse </i>1972
Betelgeuse 1972


Project history

PGM71 class patrol craft built under Military Aid Programme.

Modernizations

1980: diesels were replaced by 2 Caterpillar D-348TA (1450hp, 16kts); - 1 x 1 - 40/60, 3 x 1 - 20/70

Naval service

No significant events.
