KRONBORG submarine (1980 / 2001)

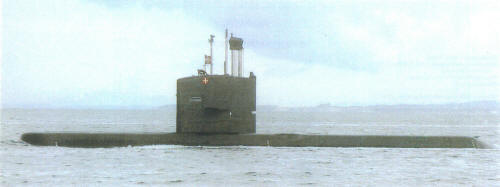

Kronborg 2002 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Kronborg (ex-Näcken) S325 561/383 Kockums, Malmö, Sweden 11.1972 17.4.1978 25.4.1980 // 17.8.2001 stricken 10.2004


Technical data


Displacement standard, t
Displacement normal, t

1218 / 1313

Length, m

57.9

Breadth, m

5.70

Draught, m

4.10

No of shafts

1

Machinery

1 MTU 16V652 MB diesel-generator, 1 ASEA electric motor / 2 United Stirling V4-275R Mk I AIP generators

Power, h. p.

1800 / 1500

Max speed, kts

10 / 20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

6 - 533 TT (bow, 8 Tp 61B or Tp 613 or mines), 2 - 400 TT (bow, 4 Tp 422 or Tp 431), mines

Electronic equipmentFuruno FR2105 radar, CSU-83 sonar suite (DBQS-21, FAS-3-1), AR-700-S5 ECM suite, IPDS (SESUB 900C) CCS
Complement

19

Diving depth operational, m300


Standard scale images


<i>Kronborg </i>2001
Kronborg 2001


Graphics


<i>Kronborg</i> 2002 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Kronborg 2002 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Swedish Type A-14 submarine, modernized with AIP system. Leased in Sweden 13.2.2001 but stricken in 2004 and returned.

Modernizations

None.

Naval service

No significant events.
