IVER HUIFELDT frigates (2012-2014)





Peter Willemoes 2014 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Iver Huitfeldt F361 714 Odense Værft, Lindø 2.6.2008 11.3.2010 6.2.2012 in service (2019)
Peter Willemoes F362 715 Odense Værft, Lindø 12.3.2009 13.5.2011 9.1.2014 in service (2019)
Niels Juel F363 716 Odense Værft, Lindø 22.12.2009 7.11.2011 21.8.2014 in service (2019)


Technical data


Displacement standard, t4000
Displacement full, t

5850

Length, m

138.7

Breadth, m

19.8

Draught, m

6.10

No of shafts

2

Machinery

CODAD: 4 MTU 20V800 M70 diesels

Power, h. p.

44600

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)

9000(15)

Armament

4 x 4 Harpoon Block II SSM (16 RGM-84C), 4 x 8 Standard SM-2MR Block IIIA SAM (VLS, 32 RIM-66K), 2 x 12 ESSM SAM (VLS, 24 RIM-162A), 2 x 2 Sea Stinger SAM (16 FIM-92), 2 x 1 - 76/62 OTO-Melara Compact SR, 1 x 1 - 35/90 Millenium, 4 x 1 - 12.7/90, 2 x 2 - 324 TT (MU-90), 1 helicopter (EH-101 or MH-60R)

Electronic equipmentSMART-L, APAR, 2x CEROS 200, Scanter 6000, Scanter 6002, 2x Furuno radars, Safire III e/o system, ASO-94 (DSQS-24C) sonar, ES-3701 ECM system, 4x Sea Gnat DL-12T, 4x Sea Gnat DL-6T decoy RL, C-Flex CCS
Complement

110 + 50 commandos



Standard scale images

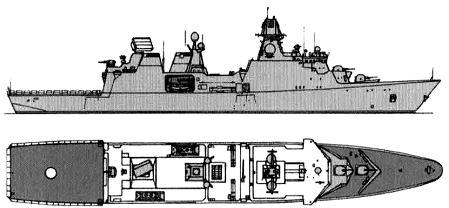

<i>Iver Huitfeldt </i>2015
Iver Huitfeldt 2015


Graphics

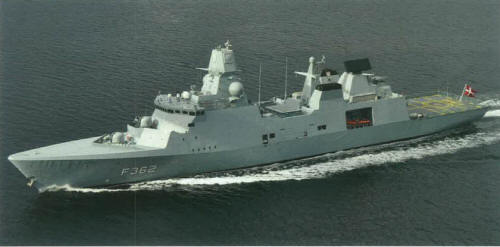

<i>Peter Willemoes </i>2014 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Peter Willemoes 2014 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Project FPS (means Flexible Patrol Ship). Based on the Absalon class and built with the same hull. Fitted with flag and staff facilities and can be used as command ships. Hull blocks were built by Baltija Shipyard in Lithuanian Klajpeda and Loksa Yard in Estonian Loksa and later assembled in Denmark.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
