PRESIDENT MASARYK river monitor (1932)

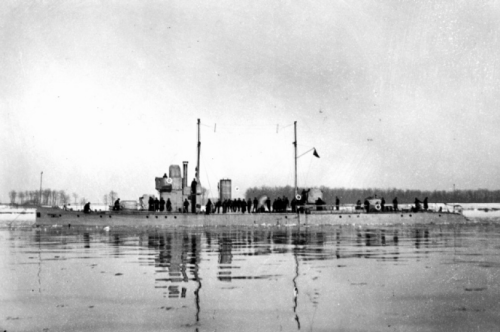

President Masaryk 1931
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| President Masaryk | Škoda, Komárno | 10.1930 | 10/1930 | 8.1932 | captured by Germany 18.4.1939 (GB1, later Bechelaren) |
Technical data
| Displacement standard, t | 214 |
|---|---|
| Displacement full, t | 230 |
| Length, m | 47.5 wl 50.0 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.07 |
| No of shafts | 2 |
| Machinery | 2 sets Škoda geared steam turbines, 2 Yarrow boilers |
| Power, h. p. | 2300 |
| Max speed, kts | 18 |
| Fuel, t | oil 28 |
| Endurance, nm(kts) | |
| Armour, mm | belt: 10, deck: 5, turrets: 8 |
| Armament | 2 x 2 - 66/32 Škoda vz.30, 2 x 2 - 7.9/67, 10 mines |
| Complement | 43 |
Standard scale images
Presydent Masaryk 1939
President Masaryk 1932
Graphics
President Masaryk 1931
Ship protection
Bullet-proof armour only.
Project history
River monitor, flagship of Czechoslovakian river flotilla.
Modernizations
None.
Naval service
President Masaryk was captured by Germany at Czechoslovakia seizure 18.4.1939.
