OMm33 1924

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
Ms-5, 1923- OMm33 Ms-6, 1923- OMm34	Ústecká s. r. o.: Ms-5, 6	1920: Ms-5, 6	none	none	1938: OMm33, 34

Technical data

Displacement standard, t
Displacement full, t	24
Length, m	16.9
Breadth, m	2.80
Draught, m	0.80 max
No of shafts	1
Machinery	1 petrol engine
Power, h. p.	55
Max speed, kts	8
Fuel, t	petrol
Endurance, nm(kts)
Armament	1 x 1 - 7.9/85
Complement	6

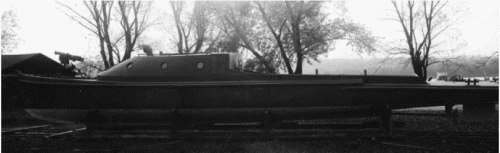

Standard scale images

Graphics

Project history

Patrol launches were originally commissioned by Army, but later converted to minelayers and transferred to riverine flotilla.

Modernizations

1923-1924, both: petrol engine was replaced by Škoda diesel (100hp, 10.8kts). + 5 - 7 mines

Naval service

No significant events.
