THESEUS patrol boats (2004-2005)
Theseus 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Θησεύς [Theseus] | PV23 | CN Vittoria, Adria, Italy | 2004 | in service (2019) | |||
| Ονήσιλος [Onisilos] | PV24 | CN Vittoria, Adria, Italy | 2005 | in service (2019) |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 110 |
| Length, m | 26.8 |
| Breadth, m | 7.60 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 3700 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(35) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 9 |
Graphics

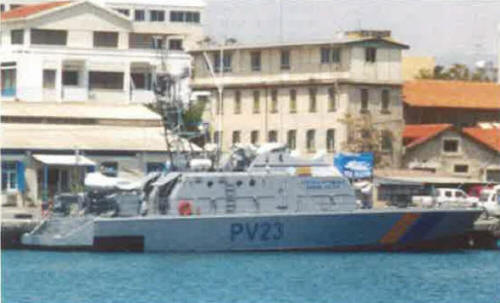

Theseus 2006
Project history
Maritime Police. Italian Corrubia class.
Modernizations
None.
Naval service
No significant events.
