ODYSSEUS patrol boat (1998)
Odysseus 2005
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PV22 Οδυσσεύς [Odysseus] |
Israeli SY, Haifa, Israel: PV22 |
1998: PV22 |
none |
none |
in service (2019): PV22 |
Technical data
| Displacement standard, t | 50 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 20.0 pp 24.8 oa |
| Breadth, m | 6.00 |
| Draught, m | 1.21 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE diesels |
| Power, h. p. | 3560 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 850(16) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar, MSIS e/o system |
| Complement | 15 |
Graphics

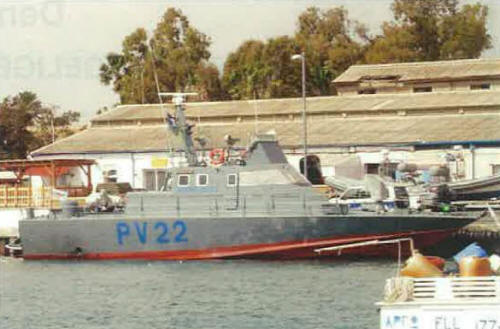

Odysseus 2005
Project history
Maritime Police. Israeli 'Shaldag' class.
Modernizations
None.
Naval service
No significant events.
