CUBA
COASTAL FORCES
114 fast attack craft (torpedo) (1951-1955/1962)
No 98 1970
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
12 boats: 98 114 10 others |
831 Yd, Feodosiya, USSR: 12 boats |
1951-1955 // 1962: 12 boats |
none |
none |
1984: 7 boats 1985: 5 boats |
Technical data
| Displacement standard, t | 19 |
|---|---|
| Displacement full, t | 23 |
| Length, m | 19.3 |
| Breadth, m | 3.43 |
| Draught, m | 0.77 |
| No of shafts | 2 |
| Machinery | 2 M-50-2 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(35) |
| Armament | 1 x 2 - 14.5/93, 2 x 1 - 450 TT, 6 DC |
| Electronic equipment | Zarnitsa radar |
| Complement | 7 |
Standard scale images

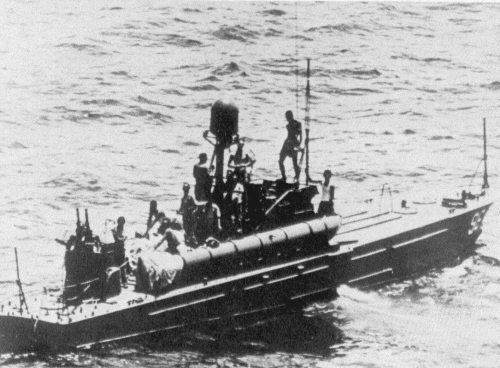

No 114 1965
Graphics
No 98 1970
Project history
Former Soviet Project 123K fast attack craft.
Modernizations
None.
Naval service
No significant events.
