L'ÉLÉPHANT small landing ship (1977)

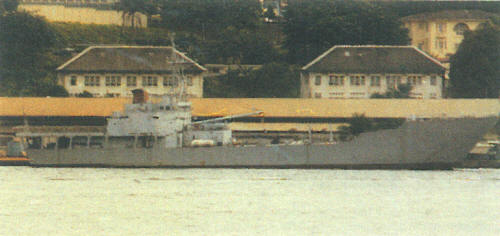

L'Éléphant 1994
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| L'Éléphant | Dubigeon, Nantes, France | 1974 | 1975 | 2.2.1977 | sold 2000 |
Technical data
| Displacement standard, t | 750 |
|---|---|
| Displacement full, t | 1330 |
| Length, m | 68.0 pp 80.0 oa |
| Breadth, m | 13.0 |
| Draught, m | 3.00 max 2.50 hull |
| No of shafts | 2 |
| Machinery | 2 SACM 195 V12 CSHR diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(13) |
| Armament | 2 x 1 - 40/60 Mk 7, 2 x 1 - 81/12 mortars, 2 x 1 - 12.7/90 |
| Military load | 350t of cargo, 138 troops, 12 vehicles, helicopter deck |
| Electronic equipment | DRBN-32 radar |
| Complement | 39 |
Standard scale images
L'Éléphant 1980
Graphics
L'Éléphant 1994
Project history
French BATRAL-E class medium landing ship.
Modernizations
None.
Naval service
No significant events.
