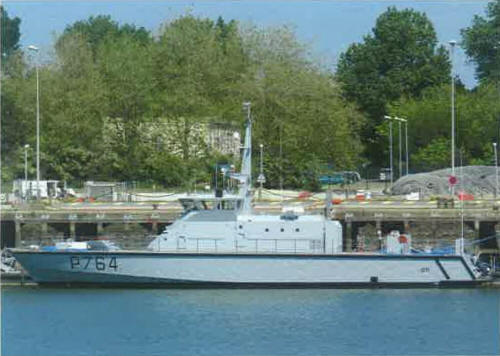

sister-ship under flag of Togo 2014

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P1401 L'Émergence P1402 Le Bouclier P1501 Capitaine de Frégate Sekongo	UFAST, Quimper, France // Raidco-Marine, Lorient, France: P1401, 1402, 1501	2014: P1401, 1402 2016: P1501	none	none	in service (2019): P1401, 1402, 1501

Technical data

Displacement standard, t
Displacement full, t	80
Length, m	33.7
Breadth, m	6.53
Draught, m	1.90
No of shafts	2
Machinery	2 MAN D2842 LE410 diesels
Power, h. p.	2200
Max speed, kts	22
Fuel, t	diesel oil
Endurance, nm(kts)	1800(15)
Armament	1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment	radar
Complement	14

Graphics

Project history

Raidco RPB33 class. GRP hull with aluminium superstructure. Equipped with a ramp for a 6m fast intervention craft.

Modernizations

None.

Naval service

No significant events.
