KARTHALA patrol boats (1981)





Karthala 1981

Ships


Names Builders Commissioned Losses Transfers Discarding

Karthala

Ntringui

Ishihara, Takasago, Japan: Karthala, Ntringui

1981: Karthala, Ntringui

none

none

in service (2020): Karthala, Ntringui



Technical data


Displacement standard, t

27

Displacement full, t

35

Length, m

16.6 pp 17.7 oa

Breadth, m

4.30

Draught, m

1.10

No of shafts

2

Machinery

2 Nissan RD10TA06 diesels

Power, h. p.

900

Max speed, kts

20.5

Fuel, t

diesel oil

Endurance, nm(kts)

180(9)

Armament

1 x 2 - 12.7/90

Electronic equipment

JRC FRA10 radar

Complement

6



Graphics

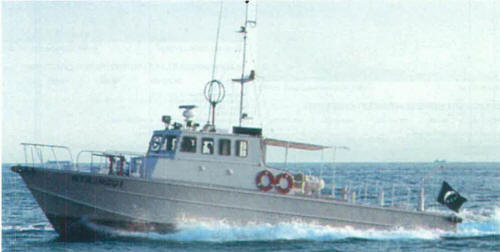

<i>Karthala </i>1981
Karthala 1981


Project history

Sister-boats of Japanese Yamayuri class.

Modernizations

None.

Naval service

No significant events.
