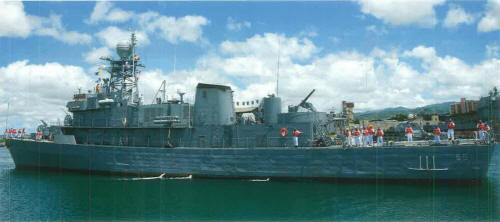

Nariño 2014

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Nariño (ex-안양 [Anyang])	CM55		Daewoo SME, Okpo, South Korea		15.6.1983	21.12.1983 // 2013	in service (2019)

Technical data

Displacement standard, t	800
Displacement full, t	1093
Length, m	78.5
Breadth, m	10.0
Draught, m	2.60 mean hull
No of shafts	2
Machinery	CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels
Power, h. p.	27800 / 6240
Max speed, kts	31
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	4000(15)
Armament	2 x 2 - 40/60 Mk 1 Mod.2, 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 324 Mk 32 TT, 2 DCR(12)
Electronic equipment	SPS-64(v), WM-28 radars, LIOD e/o director, PHS-32 sonar, ULQ-12K ECM suite, 4x Protean decoy RL, SEWACO CCS
Complement	95

Standard scale images

Graphics

Project history

Former South Korean Dong Hae class corvette, rearmed after transfer. Commissioned 31.7.2014.

Modernizations

None.

Naval service

No significant events.
