ALMIRANTE PADILLA frigates (1983-1984)





Caldas 2003

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Almirante Padilla CM51, 1999- FM51   Howaldtswerke, Kiel, West Germany 17.3.1981 6.6.1982 31.10.1983 in service (2019)
Caldas CM52, 1999- FM52   Howaldtswerke, Kiel, West Germany 14.6.1981 23.4.1982 14.2.1984 in service (2019)
Antioquia CM53, 1999- FM53   Howaldtswerke, Kiel, West Germany 22.6.1981 28.8.1982 30.4.1984 in service (2019)
Independiente CM54, 1999- FM54   Howaldtswerke, Kiel, West Germany 22.6.1981 21.1.1983 27.7.1984 in service (2019)


Technical data


Displacement standard, t

1600
Displacement full, t

1850
Length, m

90.0 pp 95.3 oa
Breadth, m

11.3
Draught, m

3.50 hull
No of shafts

2
Machinery

4 MTU 20V1163 TB82 diesels
Power, h. p.

23000
Max speed, kts

27
Fuel, t

diesel oil 200
Endurance, nm(kts)5000(14)
Armament

2 x 4 MM40 Exocet SSM (8 MM40), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 OTO-Breda Compact Twin 40, 2 x 3 - 324 Mk 32 TT, 1 helicopter (BO-105CB)
Electronic equipment

Furuno nav., Sea Tiger, Castor IIB radars, 2x Canopus e/o directors, ASO4-5 sonar, Phoenix AC-672, Scimitar ECM suites, 2x Dagaie decoy RL, TAVITAC CCS
Complement

92


Standard scale images

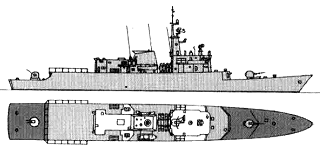

<i>Almirante Padilla </i>2000
Almirante Padilla 2000


Graphics

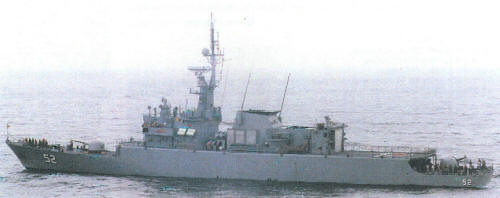

<i>Caldas </i>2003
Caldas 2003

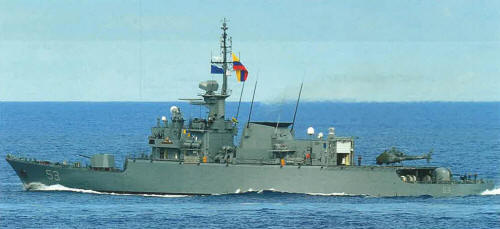

<i>Antioquia </i>2012
Antioquia 2012


Project history

German FS1500 design. It was planed to instal SAM launcher before the bridge but planes were never realized.

Modernizations

1997, Almirante Padilla, Caldas; 2002, Antioquia, Independiente: - TAVITAC CCS; + 2 x 2 Simbad SAM (~8 Mistral), TAVITAC2000 CCS, helicopter deck was enlarged to accommodate AS.550S-2 or Bell 412 helicopter

2012, Caldas, Antioquia; 2013, Almirante Padilla, Independiente: - 1 x 1 - 76/62, Sea Tiger, Furuno nav., Castor IIB radars, 1x Canopus e/o director, ASO4-5 sonar, Phoenix AC-672 ECM suite, 2x Dagaie decoy RL, TAVITAC2000 CCS; + 1 x 1 - 76/62 OTO-Melara Compact Strales, SMART-S Mk 2, Scanter 2001, Sting EO Mk 2 radars, Mirador TEOOS e/o system, ASO84-2 sonar, Vigile 200S, Altesse ECM suites, 2x SKWS DL-12T decoy RL, TACTICOS CCS; diesels were replaced by 4 MTU 20V1163 TB73L (23000hp, 27kts)

2016-2019, all: - 2 x 4 MM40 Exocet SSM; + 2 x 4 Hae Sung I SSM (8 Hae Sung I)

Naval service

No significant events.
