CHANGCHENG 366 submarines (project 636, 1997-2006)
2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| 长城 366 [Changcheng 366] | 366 | Admiralty SYd, St. Petersburg, Russia | 16.6.1996 | 26.4.1997 | 26.8.1997 // 12.11.1997 | in service (2019) | Project 636 | |
| 长城 367 [Changcheng 367] | 367 | Admiralty SYd, St. Petersburg, Russia | 28.8.1997 | 18.6.1998 | 25.10.1998 // 2.12.1998 | in service (2019) | Project 636 | |
| 长城 368 [Changcheng 368] | 368 | Admiralty SYd, St. Petersburg, Russia | 19.10.2002 | 27.5.2004 | 10.12.2004 | in service (2019) | Project 636M | |
| 长城 369 [Changcheng 369] | 369 | Admiralty SYd, St. Petersburg, Russia | 19.10.2002 | 19.8.2004 | 30.4.2005 // 5.5.2005 | in service (2019) | Project 636M | |
| 长城 370 [Changcheng 370] | 370 | Admiralty SYd, St. Petersburg, Russia | 7.3.2003 | 24.2.2005 | 15.6.2005 // 18.7.2005 | in service (2019) | Project 636M | |
| 长城 371 [Changcheng 371] | 371 | Admiralty SYd, St. Petersburg, Russia | 11.8.2003 | 26.5.2005 | 14.9.2005 // 22.12.2005 | in service (2019) | Project 636M | |
| 长城 372 [Changcheng 372] | 372 | Admiralty SYd, St. Petersburg, Russia | 7.5.2003 | 26.8.2005 | 30.5.2006 | in service (2019) | Project 636M | |
| 长城 373 [Changcheng 373] (ex-B-340) | 373 | Krasnoye Sormovo, Nizhniy Novgorod, Russia | 7/1992 | 8.5.2004 | 8.8.2005 | in service (2019) | Project 636M | |
| 长城 374 [Changcheng 374] | 374 | Severnoye SYd, Severodvinsk, Russia | 29.5.2003 | 4.6.2005 | 17.11.2005 // 27.12.2005 | in service (2019) | Project 636M | |
| 长城 375 [Changcheng 375] | 375 | Severnoye SYd, Severodvinsk, Russia | 29.5.2003 | 17.7.2005 | 24.11.2005 // 30.5.2006 | in service (2019) | Project 636M |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 2350 / 3100 |
| Length, m | 73.8 |
| Breadth, m | 9.90 hull 12.8 max |
| Draught, m | 6.60 |
| No of shafts | 1 |
| Machinery | 2 4DL-42M diesel-generators, 1 PG-141M electric motor / 1 PG-142 electric motor for crouching |
| Power, h. p. | 4080 / 5800 / 150 |
| Max speed, kts | 12 / 19.8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7500(7) / 400(3) |
| Armament | pr. 636: 6 - 533 TT (bow, 18 or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) pr. 636M: 6 - 533 TT (bow, 18, inc. Club-S SSM (4 3M-54E) or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) |
| Electronic equipment | MRK-50 Kaskad radar, MGK-400 Rubikon sonar suite, MG-519 Arfa, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25 ECM suite, MVU-110EM Uzel CCS |
| Complement | 60 |
| Diving depth operational, m | 240 |
Standard scale images

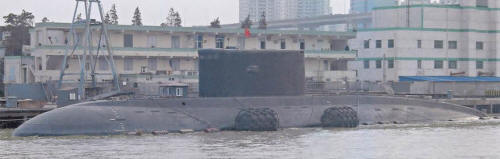

Changcheng 369 2010
Graphics
2008
Project history
Russian Projects 636 and 636M, Changcheng 366 and 367 were laid down for Russian Navy, and Changcheng 373 was originally laid down for Russian Navy under Project 877. Submarines of Project 636M are armed also with Club-S SSMs.
Modernizations
None.
Naval service
No significant events.
