CHANGCHENG 320 submarine (project 039, 1999), CHANGCHENG 321 submarines (project 039G, 2001-2006)
Changcheng 320 1997
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| 长城 320 [Changcheng 320] | 320 | Wuhan SY | 1991 | 25.5.1994 | 6/1999 | in service (2019) | Type 039 | |
| 长城 321 [Changcheng 321] | 321 | Wuhan SY | 11.11.1999 | 22.4.2001 | in service (2019) | Type 039G | ||
| 长城 322 [Changcheng 322] | 322 | Wuhan SY | 28.6.2000 | 12/2001 | in service (2019) | Type 039G | ||
| 长城 323 [Changcheng 323] | 323 | Wuhan SY | 5/2002 | 11/2003 | in service (2019) | Type 039G | ||
| 长城 324 [Changcheng 324] | 324 | Wuhan SY | 28.11.2002 | 12/2003 | in service (2019) | Type 039G | ||
| 长城 325 [Changcheng 325] | 325 | Wuhan SY | 3.12.2002 | 2004 | in service (2019) | Type 039G | ||
| 长城 314 [Changcheng 314] | 314 | Wuhan SY | 19.5.2003 | 11/2003 | in service (2019) | Type 039G1 | ||
| 长城 315 [Changcheng 315] | 315 | Wuhan SY | 29.9.2003 | 12/2003 | in service (2019) | Type 039G1 | ||
| 长城 316 [Changcheng 316] | 316 | Wuhan SY | 28.8.2004 | 2005 | in service (2019) | Type 039G1 | ||
| 长城 317 [Changcheng 317] | 317 | Wuhan SY | 2.12.2004 | 2005 | in service (2019) | Type 039G1 | ||
| 长城 326 [Changcheng 326] | 326 | Wuhan SY | 7/2004 | 2006 | in service (2019) | Type 039G1 | ||
| 长城 327 [Changcheng 327] | 327 | Wuhan SY | 8/2004 | 2006 | in service (2019) | Type 039G1 | ||
| 长城 328 [Changcheng 328] | 328 | Jiangnan SY, Shanghai | 9/2004 | 2006 | in service (2019) | Type 039G1 | ||
| 长城 329 [Changcheng 329] | 329 | Jiangnan SY, Shanghai | 11/2004 | 2006 | in service (2019) | Type 039G1 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 1700 / 2250 |
| Length, m | 76.6 |
| Breadth, m | 8.40 hull |
| Draught, m | 5.25 |
| No of shafts | 1 |
| Machinery | 4 MTU 16V396 SE 83/84 diesel-generators, 1 electric motor |
| Power, h. p. | 6092 |
| Max speed, kts | 15 / 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | / 330(4) |
| Armament | 6 - 533 TT (bow, 18, inc. Yin Ji-82 SSM (4 YJ-82) or 24-36 mines) |
| Electronic equipment | MRK-50E Kaskad-E radar, H/SQG-4 sonar suite (TSM2233 Eledone, TSM-2255, SQB-2 sonars), Type 921-A (SRW209) ECM suite, CCS |
| Complement | 60 |
| Diving depth operational, m | 300 |
Standard scale images
Changcheng 320 2000
Changcheng 325 2010
Graphics

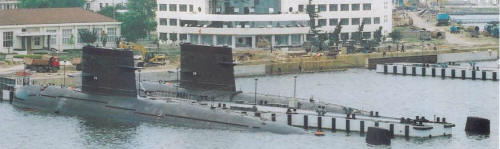

Changcheng 315 and Changcheng 316 2005

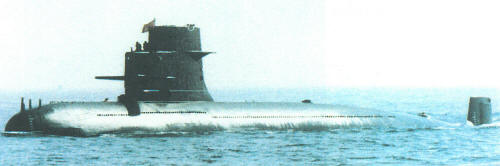

Changcheng 320 1997
Project history
The prototype Changcheng 320 had serious design technical problems that became evident on sea trials, including unsatisfactory underwater performance and high noise levels. Major redesign work led to Type 039G with no stepped sail. Submarines are armed by YJ-82 SSMs and Yu-3 and Yu-4 torpedoes. CY-1 ASW missile was successfully tested on this class.
Modernizations
None.
Naval service
No significant events.
