CHANGCHENG 119 submarines (project 613/03, 1957-1964)

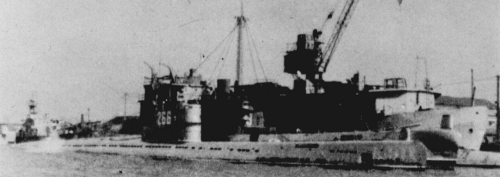

Changcheng 266 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
长城 119 [Changcheng 119] 119   Kiangnan SY 4/1955 3/1956 10/1957 deleted 1981
长城 120 [Changcheng 120] 120   Kiangnan SY // Wuhan SY     1957-1964 deleted 1981
长城 119 [Changcheng 122] 122   Kiangnan SY // Wuhan SY     1957-1964 deleted 1981
长城 123 [Changcheng 123] 123   Kiangnan SY // Wuhan SY     1957-1964 deleted 1981
长城 127 [Changcheng 127] 127   Kiangnan SY // Wuhan SY     1957-1964 deleted 1981
长城 129 [Changcheng 129] 129   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 131 [Changcheng 131] 131   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 201 [Changcheng 201] 132   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 202 [Changcheng 202] 133   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 203 [Changcheng 203] 134   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 204 [Changcheng 204] 135   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 205 [Changcheng 205] 206   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 206 [Changcheng 206] 207   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 207 [Changcheng 207] 208   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 221 [Changcheng 221] 221   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 241 [Changcheng 241] 241   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 243 [Changcheng 243] 243   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 244 [Changcheng 244] 244   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 265 [Changcheng 265] 265   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 266 [Changcheng 266] 266   Kiangnan SY // Wuhan SY     1957-1964 deleted early 1990s
长城 270 [Changcheng 270] 270   Kiangnan SY // Wuhan SY     1957-1964 deleted 1981


Technical data


Displacement standard, t



Displacement normal, t

1045 / 1342

Length, m

76.0

Breadth, m

6.30

Draught, m

4.55

No of shafts

2

Machinery

2 37D diesels / 2 PG-101 electric motors

Power, h. p.

4000 / 2700

Max speed, kts

18.3 / 13.1

Fuel, t

diesel oil

Endurance, nm(kts)

8580(10) / 353(2)

Armament

earlier boats: 1 x 2 - 25/112 2M-8, 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)

later boats: 6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)

Electronic equipment

Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite

Complement

55

Diving depth operational, m

170



Standard scale images


<i>Changcheng 119</i> 1960
Changcheng 119 1960
<i>Changcheng 202 </i>1990
Changcheng 202 1990


Graphics


<i>Changcheng 266 </i>1976
Changcheng 266 1976


Project history

The USSR supplied components for five submarines to be assembled in Chinese shipyards until eventually the Chinese built the entire submarine. A total of twenty-one entered service, 13 built by Kiangnan SY and 8 by Wuhan SY. Obsolete by the 1980s, six had been stricken by 1989, with the remainder either laid up in reserve or serving as stationary harbour training boats.

Modernizations

1960s, all earlier boats: - 1 x 2 - 25/112

Naval service

No significant events.
